Jandy

VSPHP270DV2A

VS PlusHP Variable Speed Pump 115/230V

$1,700.00
Shipping calculated at checkout.
5.0
Call or text for price: +1 (305) 359-7665
SpeedSet: Without Speedset Controller

Request a Quote

🔒 Your information is secure
✉️ No spam or marketing emails
⚡ Fast response from a real pool equipment specialist
Fast shipping
Ships in 2 to 3 business days
View Specifications
Product Description

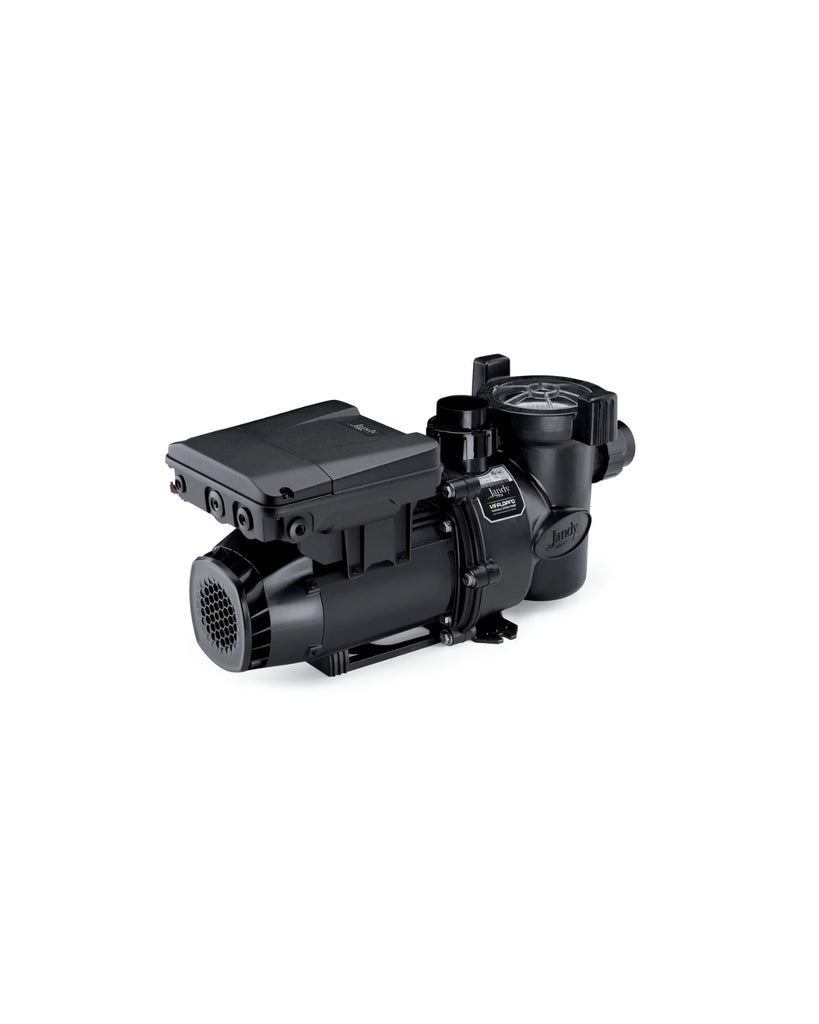

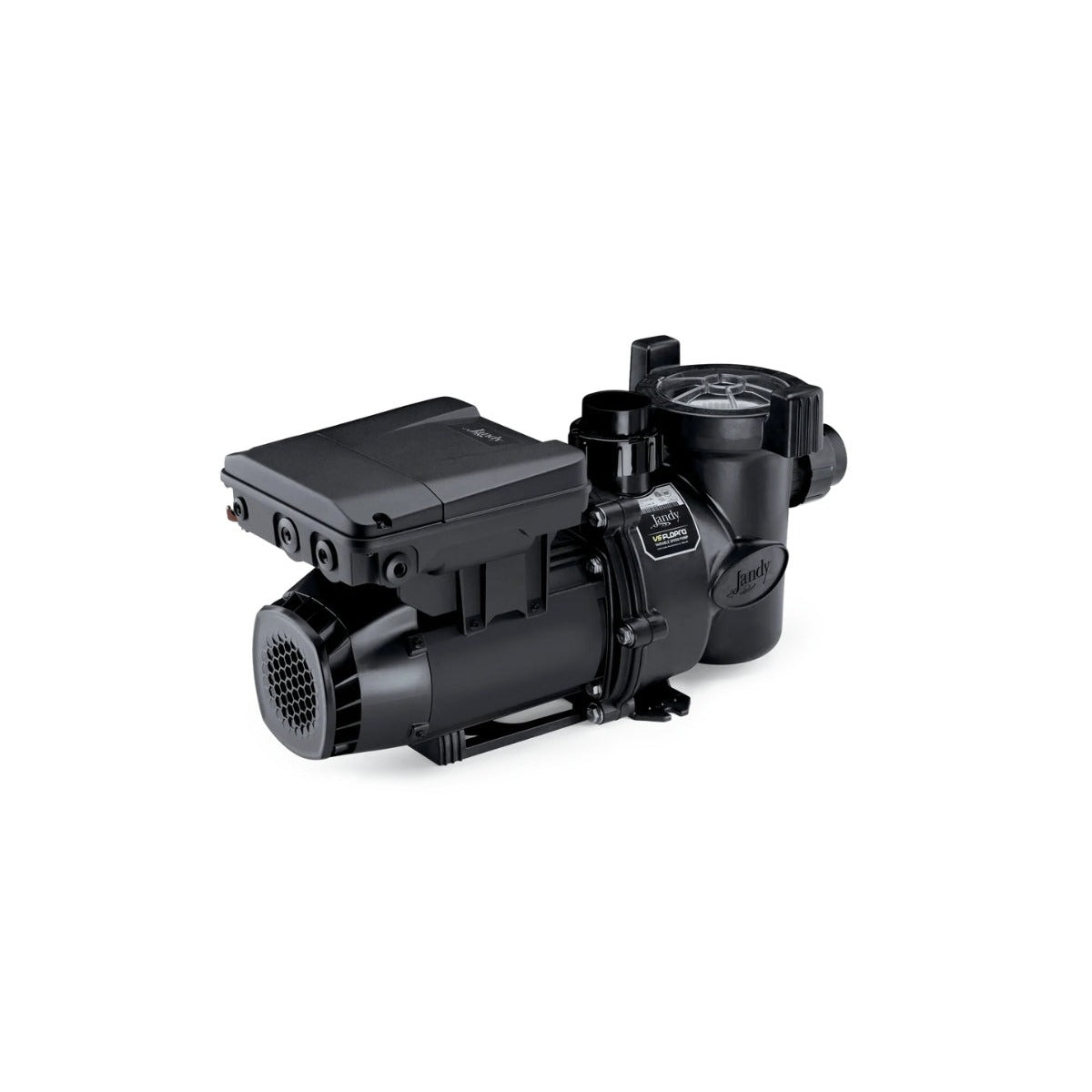

The Jandy VS PlusHP 2.7HP Variable Speed Pump is a high-performance, energy-efficient "drop-in" upgrade for demanding pools. Featuring an auto-sensing 115V/230V motor, this 2.7 HP powerhouse delivers massive flow while slashing energy costs by up to 90%. Available with the intuitive SpeedSet™ Controller for easy on-pump programming or as a controller-free version for seamless automation integration, it provides near-silent operation and industrial-strength durability in a mid-sized footprint.

Key Features

  • 2.7 HP High-Output Motor: Designed to power large residential pools, spas, and water features with ease.
  • Dual-Voltage Auto-Sensing: Automatically adapts to 115V or 230V power for a fast, hassle-free electrical setup.
  • SpeedSet™ Interface Option: Features an easy-to-use "FlyWheel" dial for quick scheduling and speed adjustments.
  • 90% Energy Savings: Variable speed technology drastically reduces monthly electricity consumption.
  • Quiet TEFC Design: Totally enclosed fan-cooled motor ensures a long service life and a peaceful backyard.
  • Versatile Retrofit: Compact body design allows for easy replacement of older high-head pumps with minimal plumbing.

Warranty
What installation covers

Pool Pump Installation Option Details: Covers replacement of an existing pool pump only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Electrical work includes connection to the existing electrical cable only — does not include rewiring or running a new cable. Service available in Miami-Dade, Broward, and Monroe counties. (Please note that installation costs are not included in the equipment price. Installation services are sold separately.)

SpeedSet
Specifications

Specifications

Jandy® VS PlusHP™ Variable-Speed Pump High-performance energy efficient pump designed for mid-to-large sized pools. Built with a Zero Clearance Totally Enclosed Fan-Cooled (TEFC) motor, the VS PlusHP generates up to 70% less noise than single-speed pumps while saving over $1,100 per year in energy costs.
VS PlusHP (Standalone) P/N VSPHP270DV2A
Horsepower2.7 THP
Voltage115V / 230V Auto-Sense
Dimensions (L x W)27 5/8" x 9 1/8"
8-Hr Turnover53,760 Gal (@60' Head)
Inlet/Outlet Size2" - 2.5" Unions
MaterialThermoplastic / Viton® Seals
Inclusions2 Aux Relays / 2" Unions
VS PlusHP w/ SpeedSet P/N VSPHP270DV2AS
Horsepower2.7 THP
Voltage115V / 230V Auto-Sense
Dimensions (L x W)27 5/8" x 9 1/8"
8-Hr Turnover53,760 Gal (@60' Head)
Inlet/Outlet Size2" - 2.5" Unions
MaterialThermoplastic / Viton® Seals
InclusionsSpeedSet Controller / Relays

Safety Warnings & Critical Maintenance

High Pressure Hazard: Maximum working pressure is 50 PSI. Always release internal air pressure via the Manual Air Relief Valve before loosening any clamps or servicing the filter.
Electric Shock Risk: Wiring must be performed by a licensed professional. The pump must be properly bonded with a minimum 8 AWG solid copper wire.
Suction Entrapment: Pump suction is hazardous and can trap body parts. Never operate if suction outlet covers are damaged or missing.
Dry Run Warning: Never run the pump dry. This will permanently damage the mechanical shaft seal and lead to housing failure.
💡 Expert Pro-Tips
  • Zero Clearance Advantage: The TEFC motor pulls air from the sides rather than the back, allowing the pump to be installed in tight spaces against walls without overheating.
  • Relay Integration: Use the two built-in auxiliary relays to control a salt chlorinator or booster pump directly, eliminating the need for extra external timers.
  • Oversized Basket: The extra-large strainer basket maintains flow efficiency for longer periods between cleanings, reducing stress on the motor.
Manufacturer Disclaimer: Sourced from official [Jandy technical documentation](https://www.jandy.com). Professional installation is required for warranty validation.

User Disclaimer: Informational only. Do not attempt electrical or plumbing work without professional certification. Refer to the official [VS PlusHP Manual](https://www.jandy.com) for full safety protocols.
