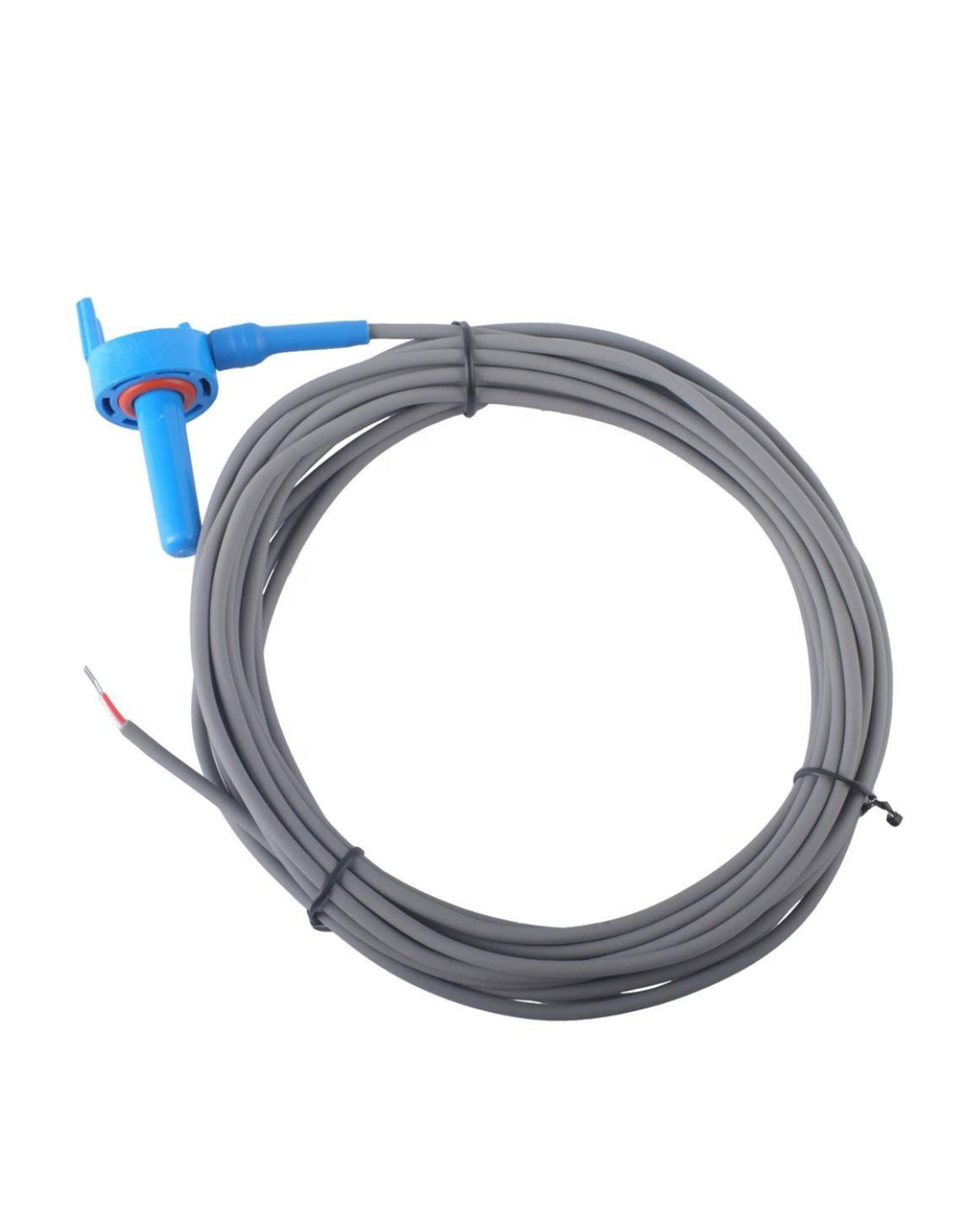

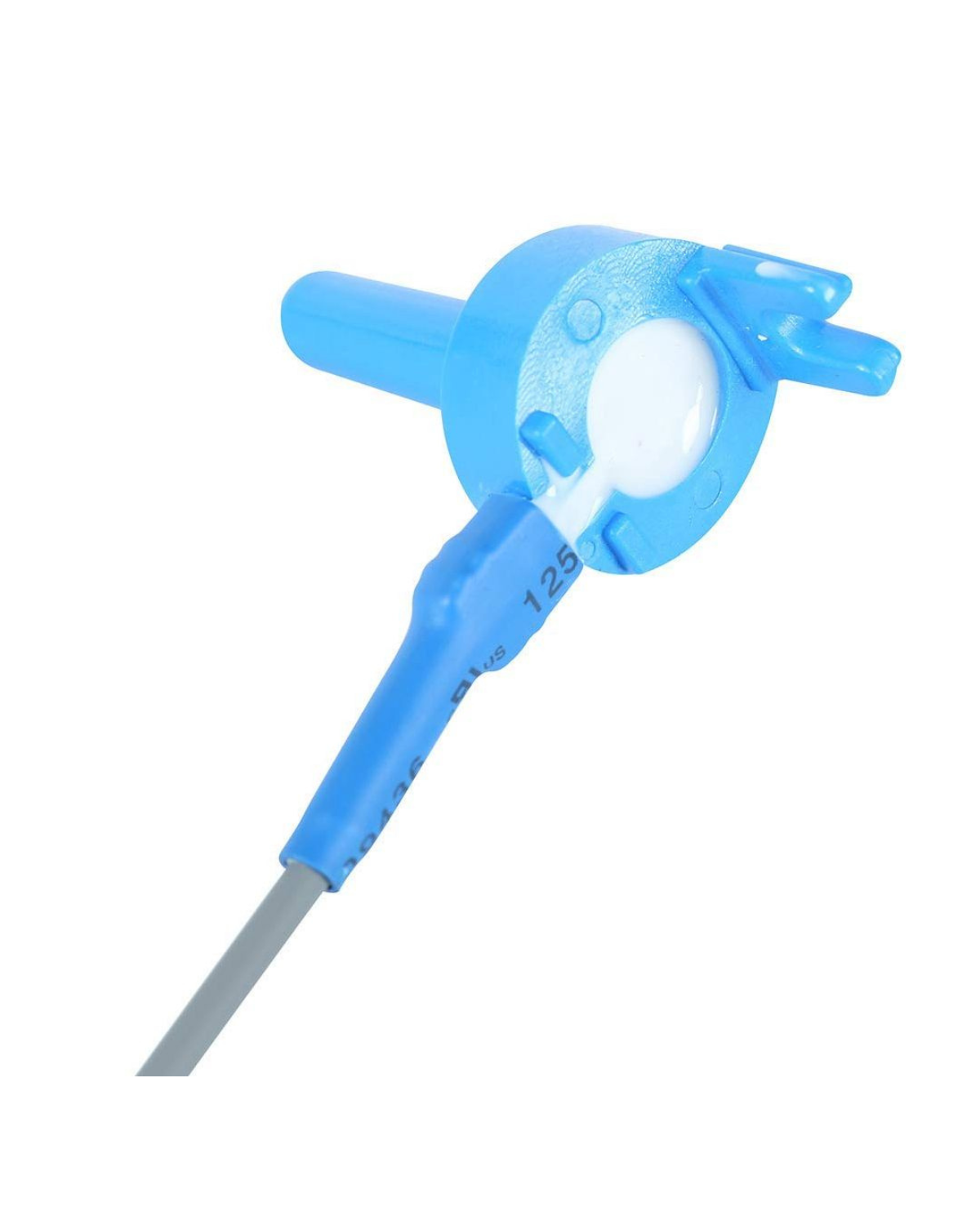

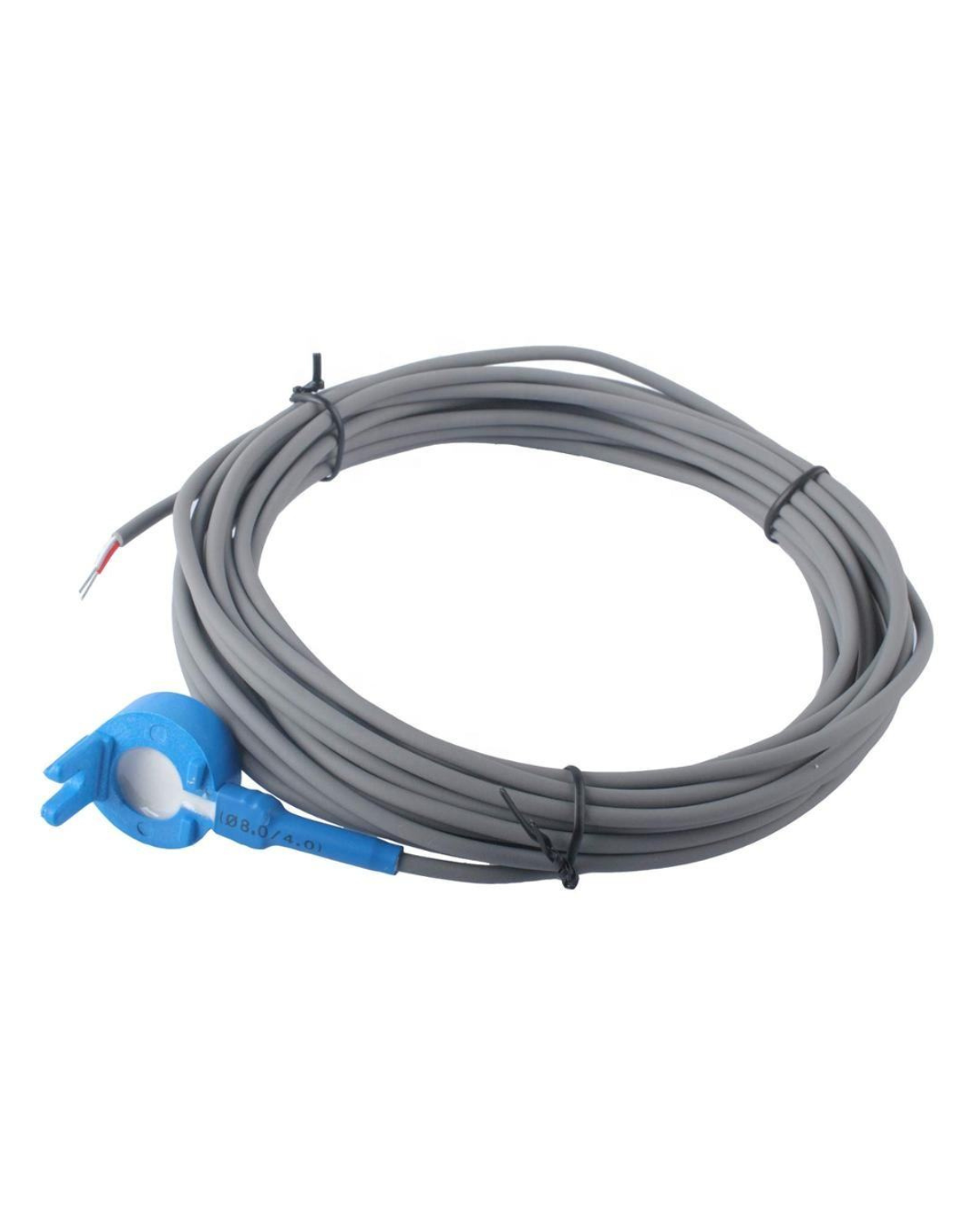

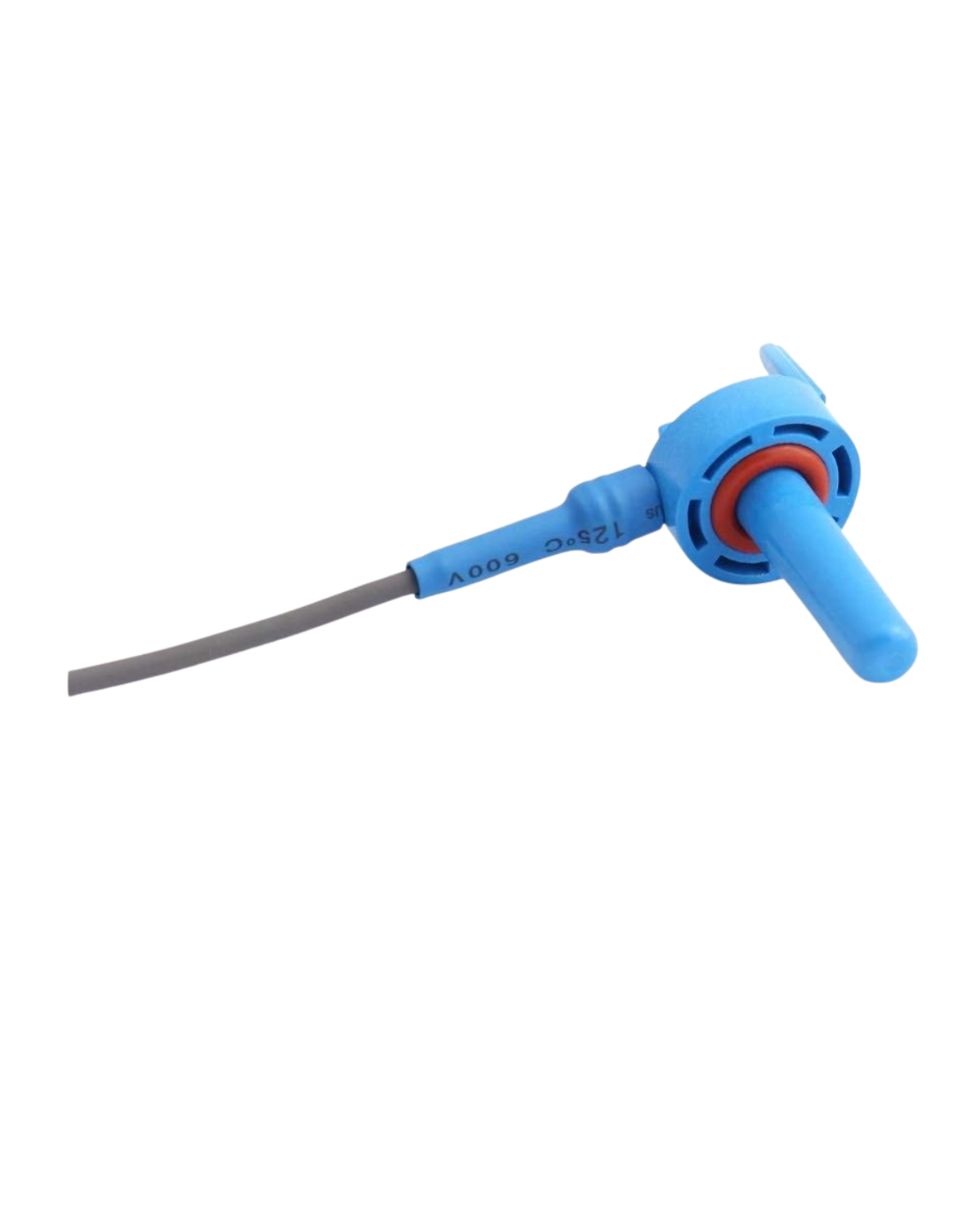

Replacement Pentair 520272 Air/Water/Solar Temperature Sensor, 20-Feet Cable for Pool/Spa
$9.99
/
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description
The 520272 Air/Water/Solar Temperature Sensor by RTSENSOR is a high-precision 10K Ohm replacement kit designed for comprehensive pool and spa automation. This versatile analog sensor provides the critical data needed to manage heating, filtration, and solar collections, effectively replacing the Pentair 520272, TS5T, and STS5T
Key Product Features
- 3-in-1 Versatility: A single sensor design that functions perfectly as a water, air, or solar temperature monitor.
- Extended Reach: Includes a 20-foot high-quality cable, allowing for flexible mounting away from the main control center.
- Reliable Performance: Built with durable, weather-resistant materials to withstand UV exposure and harsh pool chemicals.
- Plug-and-Play Compatibility: Engineered for a seamless fit with major automation systems, requiring no complex wiring or modifications.
Specifications
RTSENSOR 520272 Air/Water/Solar Temperature Sensor
High-precision 10K Ohm replacement kit designed for comprehensive pool and spa automation. This versatile analog sensor manages heating, filtration, and solar collection data, directly replacing the Pentair 520272, TS5T, and STS5T.
Technical Performance
Sensor Type10K Ohm NTC Thermistor
OutputAnalog Resistance
Operating Range-20°C to 100°C
Accuracy+/- 0.5°C
Cable Length20 Feet (6.1m)
Physical Specs & ID
Probe Diameter1/4 Inch
Lead Wires2-Conductor Bare Wire
Housing ColorBlue / Black
Manufacturer #NSAB0103FC2-612XSP12a
Weight~3.2 ounces
Automation System Compatibility
Pentair Control Systems: IntelliTouch, EasyTouch, SunTouch, and IntelliCenter.
Legacy Systems: Compool LX220 and other solar-specific controllers.
Legacy Systems: Compool LX220 and other solar-specific controllers.
Heating Units: Compatible with MiniMax Plus pool and spa heater pumps.
Multi-Function: Operates as an Air, Water, or Solar sensor depending on wiring port.
Multi-Function: Operates as an Air, Water, or Solar sensor depending on wiring port.
⚠️ Critical Warnings & Safety
ELECTRICAL HAZARD: Installation involves wiring into low-voltage automation control boards. Failure to follow proper electrical safety protocols can result in equipment damage or electric shock.
ERRATIC READINGS: A sensor that is partially shorted or has corroded wire leads will provide false temperature data, potentially causing the heater to run indefinitely or prevent solar systems from engaging.
MOISTURE INTRUSION: Ensure the water sensor is perfectly sealed in the pipe. A leak at the sensor port can lead to flooding of the equipment pad and damage to nearby electronics.
💡 Professional Installation Tips
- Water Setup: Drill a 3/8-inch hole in the pipe between the pump and filter. Insert probe and secure with a stainless steel hose clamp.
- Air Setup: Mount the probe in a shaded area. Keep away from direct sunlight, air conditioners, and pump motors to avoid "false heat" readings.
- Solar Setup: Fasten the sensor next to unglazed panels. For glazed panels, place it between the collector and the glazing.
- Resistance Check: Use a multimeter to verify health. At a water/air temperature of 77°F (25°C), the sensor should read exactly 10,000 Ohms.
