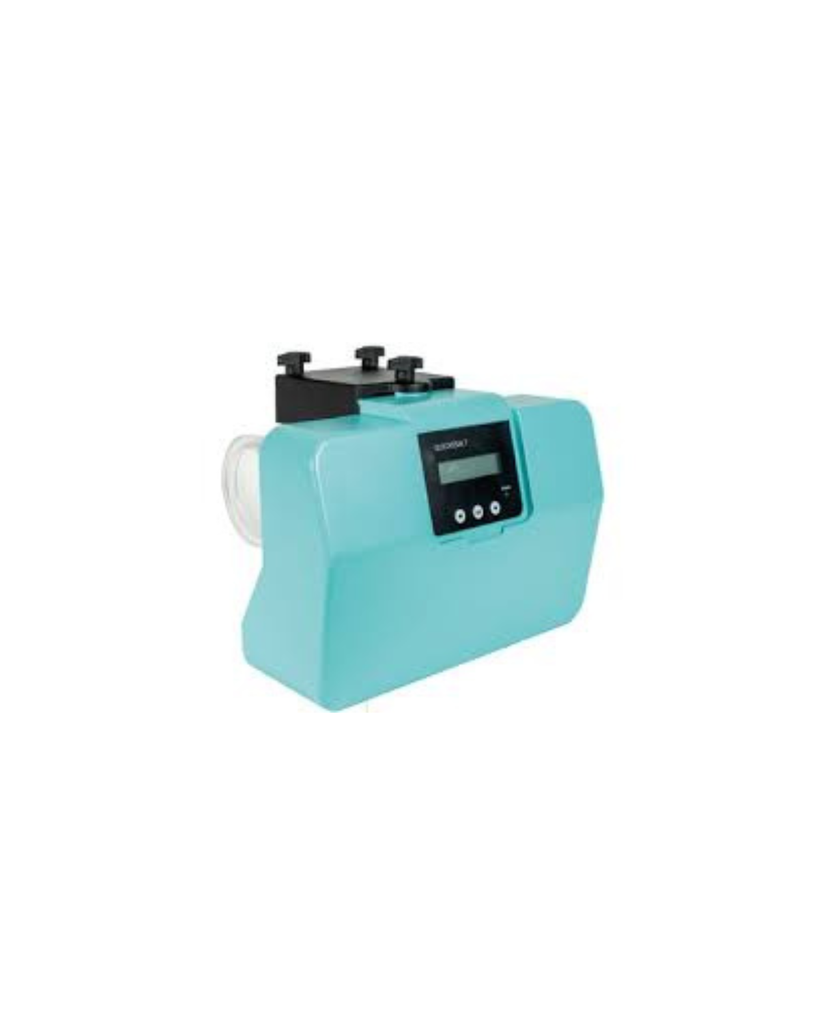

Quicksalt40 Salt Chlorinator 40K Gal

The QUICKSALT 40 Salt Chlorine Generator is a modern, energy-efficient system designed for automating pool sanitation through salt electrolysis. Engineered for pools up to ~40,000 gallons, it transforms dissolved salt into free chlorine—eliminating the need for manual chlorine addition. The unit is easy to install and features a high-efficiency switch-mode power supply to reduce energy consumption. With advanced diagnostics, self-cleaning functionality, and modular components, it offers long-term reliability and performance.

In use, the system produces hypochlorous acid (HClO), a highly effective disinfectant, while alerting you to low salt or operational anomalies so you can maintain ideal water balance. It’s built for durability and designed for simplicity—compact form factor, factory-wired cell control, and minimal maintenance.

Specifications & Features

Model / Name: QUICKSALT 40 (QuickSalt40)

Application Pool Size: Up to approximately 40,000 gallons

Chlorine Production (24h): ~1.1 lbs (0.45 kg) under full output

Input Voltage: 110/220 VAC selectable (dual-voltage)

Max Current (Cell Side): ~6.25 A

Power Consumption: ~187.5 W

Salt Operating Range: 3,300 ppm to 8,000 ppm (typical target ~4,000 ppm)

Cell Life Expectancy: ~10,000 hours (varies with conditions)

Self-Cleaning Method: Reverse polarity cycling to reduce scale buildup

Diagnostics & Alerts: Includes salt-level warnings, operational error codes, and control interface

Construction: Modular components—control electronics and cell are separable

Weight: ~8.8 lbs

Design: Compact, factory pre-wired cell-to-control unit connection

Minimum Head Loss: Low pressure drop to maintain hydraulic efficiency

Installation Notes:
  • Control unit should be mounted at least 2 ft off the ground
  • Cell must be installed on a horizontal pipe, not vertical
  • Must be wired to start only when filtration pump is running
  • Electrical installation should include grounding / bonding

Certifications / Safety Features: Alarm system, flow sensor, temperature protection, salt alerts

User Interface: LCD display and buttons for adjusting chlorine production (0–100%) and settings
