Lesso America
402-247

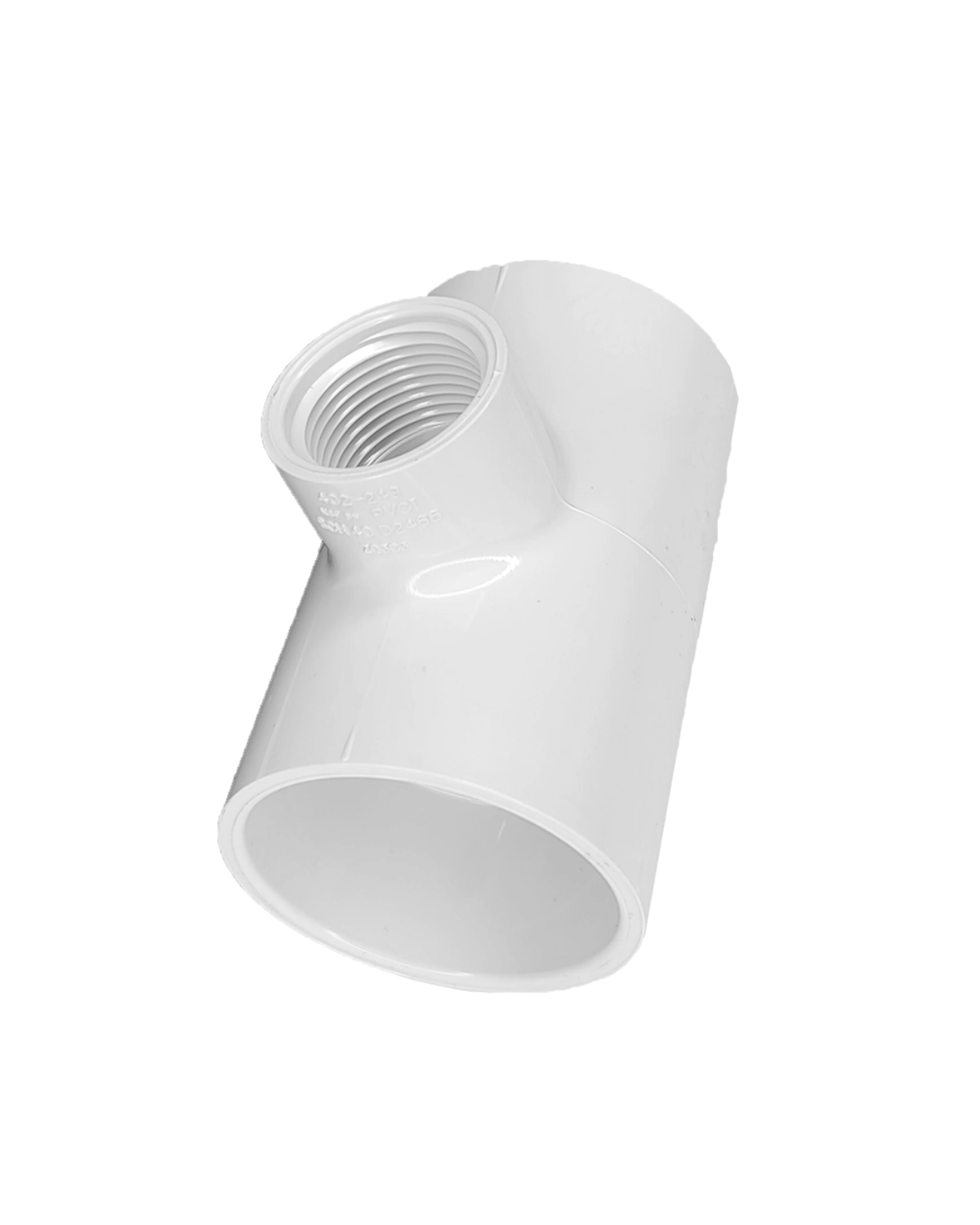

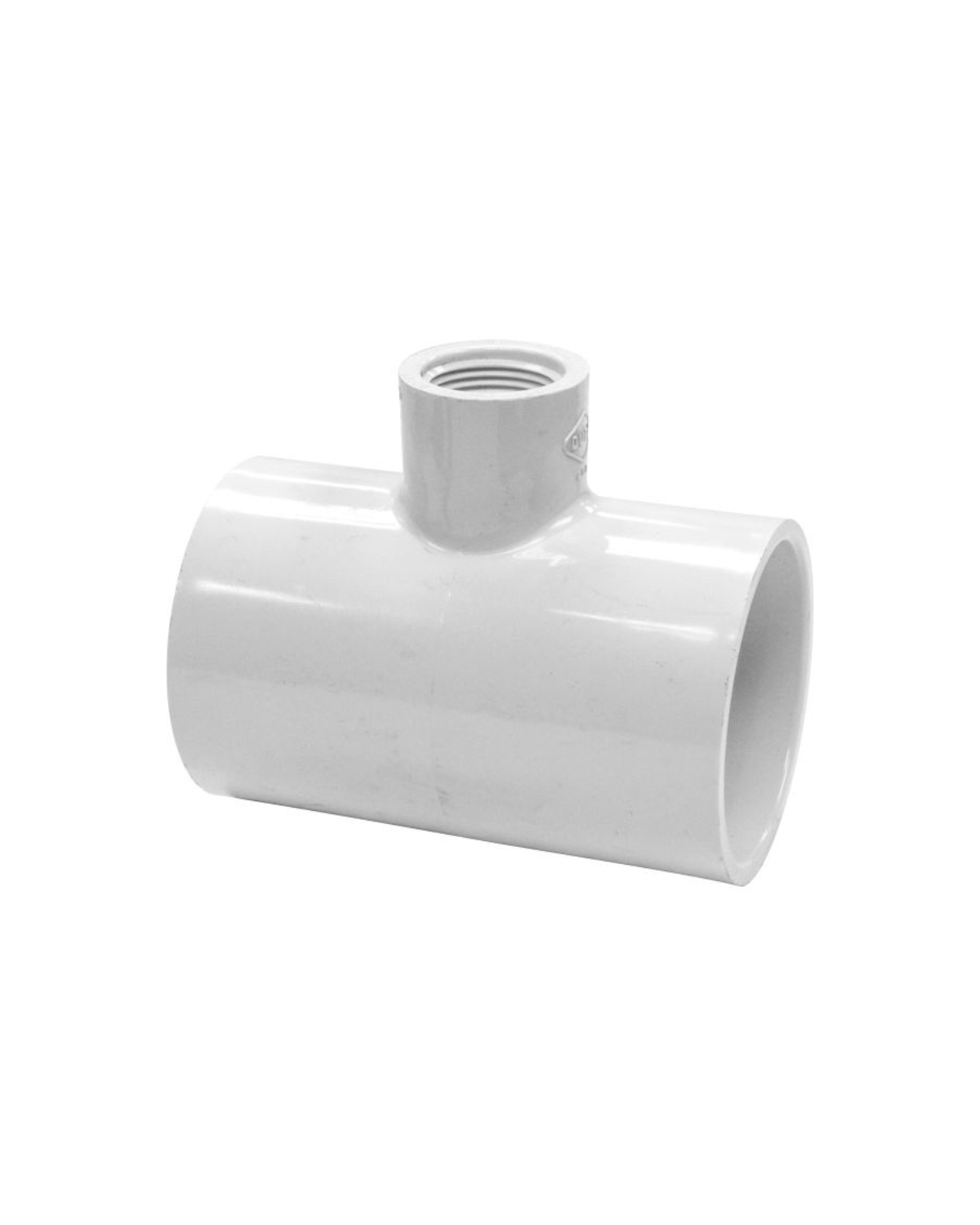

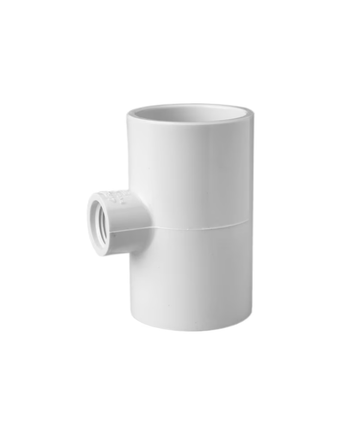

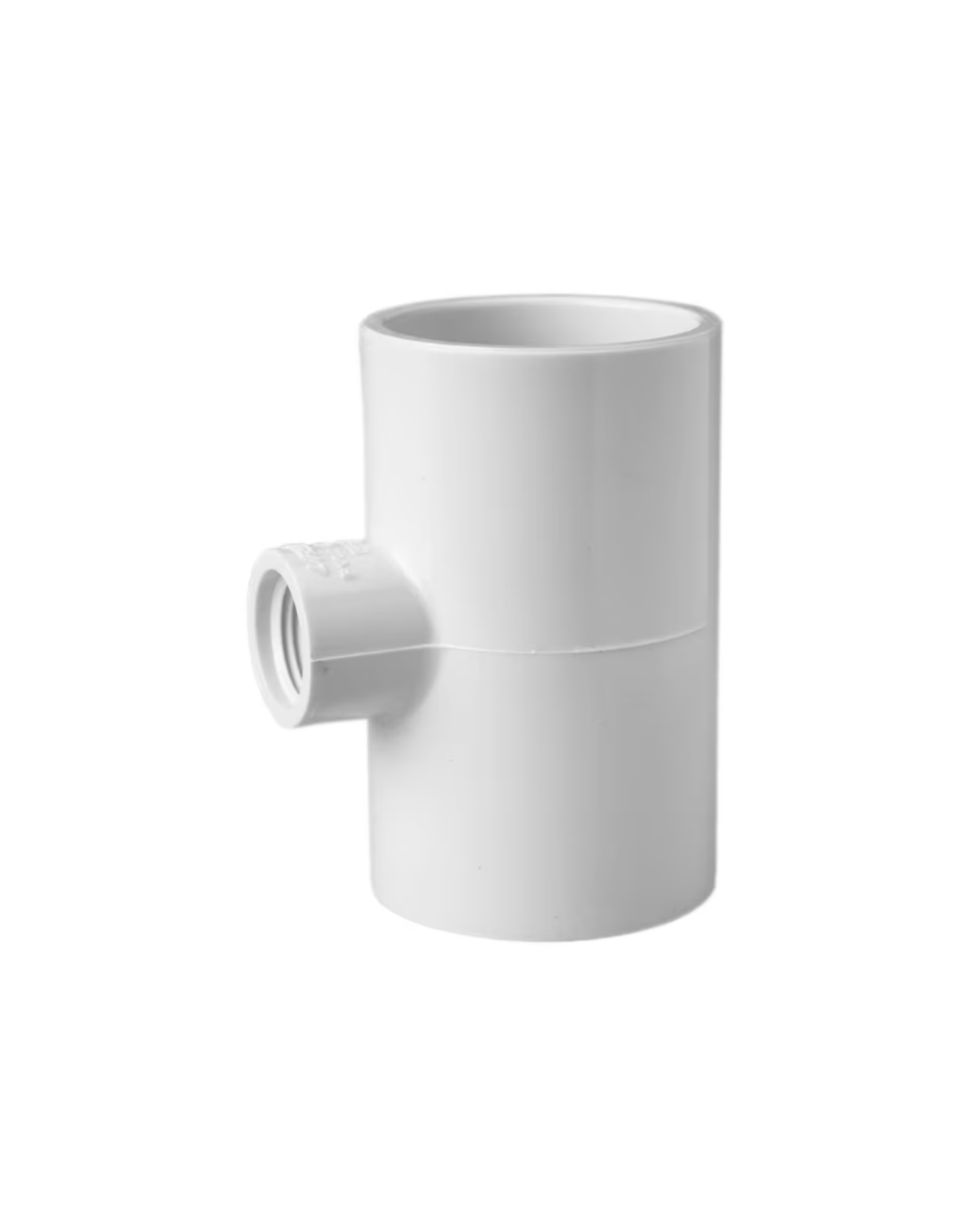

PVC SCH 40 Reducing Tee (SOC x SOC x FIPT)
$2.05
/
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description
The PVC Schedule 40 Reducing Tee (SOC x SOC x FIPT) is a high-durability fitting used to branch a primary pipeline into a smaller, threaded connection. These tees are ideal for transitioning between larger solvent-weld (slip) pipes and smaller threaded adapters or sensors in irrigation, pool, and spa systems.
Key Product Features
- Versatile Configuration: Combines two 2-inch socket (slip) ends for permanent solvent welding with a single female pipe threaded (FIPT) branch for removable connections.
- High-Strength Material: Injection-molded from white Schedule 40 PVC, offering excellent corrosion resistance and a long service life in cold-water applications.
- Optimal Flow Dynamics: Features a smooth interior finish that reduces friction and inhibits material buildup for maximum hydraulic efficiency.
- Third-Party Certified: Many models are NSF/ANSI 61 certified, making them safe for use in potable water distribution systems.
Specifications
PVC Schedule 40 Reducing Tee (SOC x SOC x FIPT)
A high-durability fitting used to branch a primary pipeline into a smaller, threaded connection. These tees are ideal for transitioning between larger solvent-weld (slip) pipes and smaller threaded adapters or sensors in irrigation, pool, and spa systems.
Technical Specification Sheet
StandardASTM D2466
MaterialPVC (White)
Connection TypeSOC x SOC x FIPT
Max Pressure166 PSI @ 73°F
Max Temperature140°F (60°C)
Key Product Features
Versatile Configuration2" Slip x Threaded Branch
High-StrengthInjection-Molded PVC
Flow DynamicsSmooth Interior Finish
CertificationsNSF/ANSI 61 Certified
ApplicationCold-Water Distribution
Model Comparison & Sizes
All models feature a 2-inch primary run with varying branch thread sizes:
| Part Number | Nominal Size (Run x Run x Branch) | Weight (Approx.) |
|---|---|---|
| 402-247 | 2" x 2" x 1/2" | 0.30 lbs |
| 402-248 | 2" x 2" x 3/4" | 0.31 lbs |
| 402-249 | 2" x 2" x 1" | 0.34 - 0.43 lbs |
⚠️ Critical Plumbing Warnings
NON-COMPRESSED GAS: DANGER: Never use PVC fittings for compressed air or other gases, as the material can shatter under pressure, causing fatal injury.
TEMPERATURE LIMITS: Not suitable for hot water systems; for media exceeding 140°F (60°C), use CPVC fittings instead to prevent structural failure.
💡 Professional Installation Tips
- Thread Sealant: Always use a high-quality PTFE (Teflon) tape or non-hardening thread sealant on the FIPT branch to ensure a watertight seal.
- Proper Priming: For the two socket ends, use a standard PVC primer and solvent cement (glue). Allow the joints to cure fully before pressurizing.
- Avoid Over-tightening: Hand-tighten threaded fittings into the FIPT branch first, then turn only 1–2 times with a wrench to prevent cracking the PVC.
