Madimack 71101 EliteClear 200 sq ft Cartridge Pool Filter

$1,060.00
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days

Pickup available at Online Only

Usually ready in 24 hours

View Specifications
Product Description

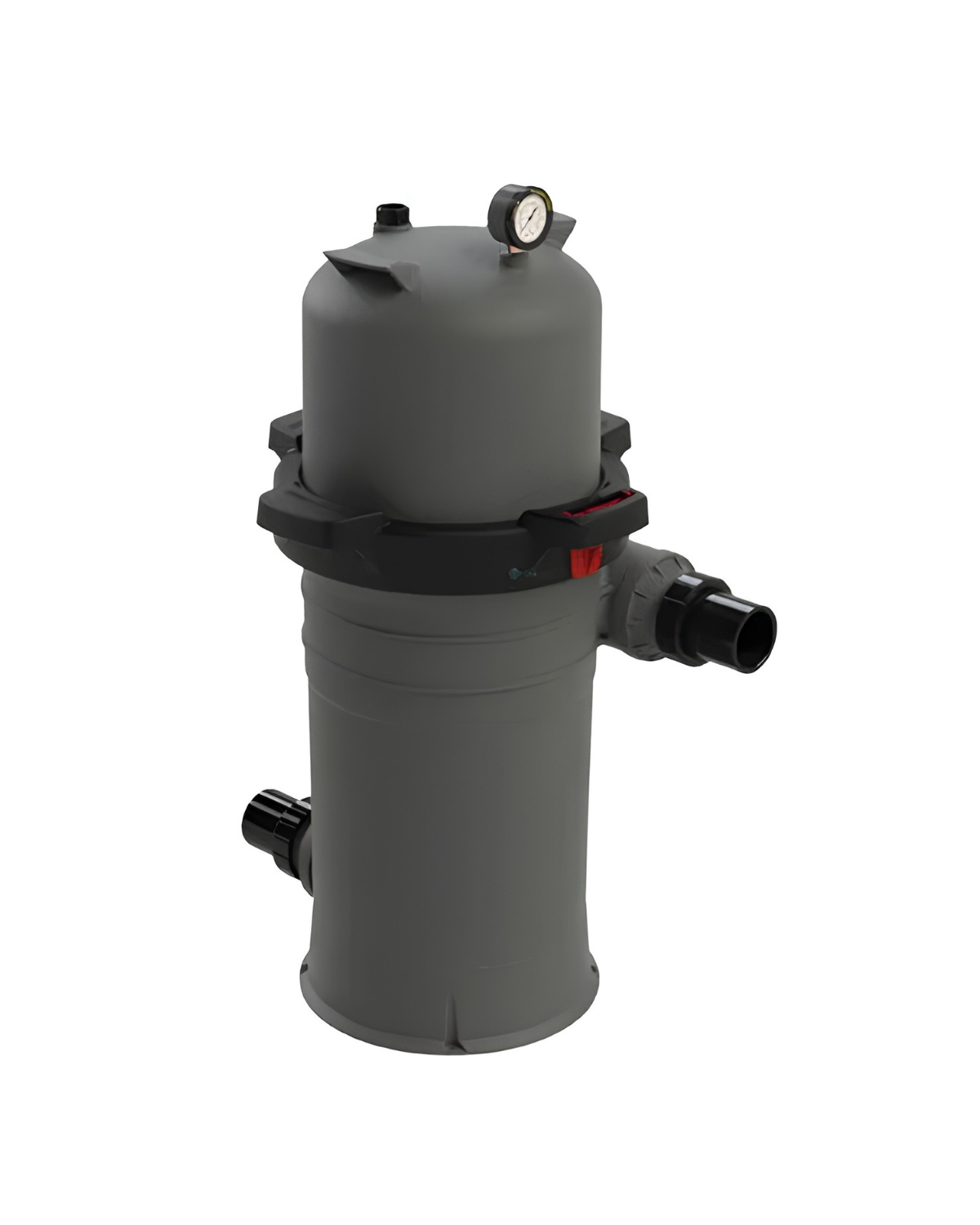

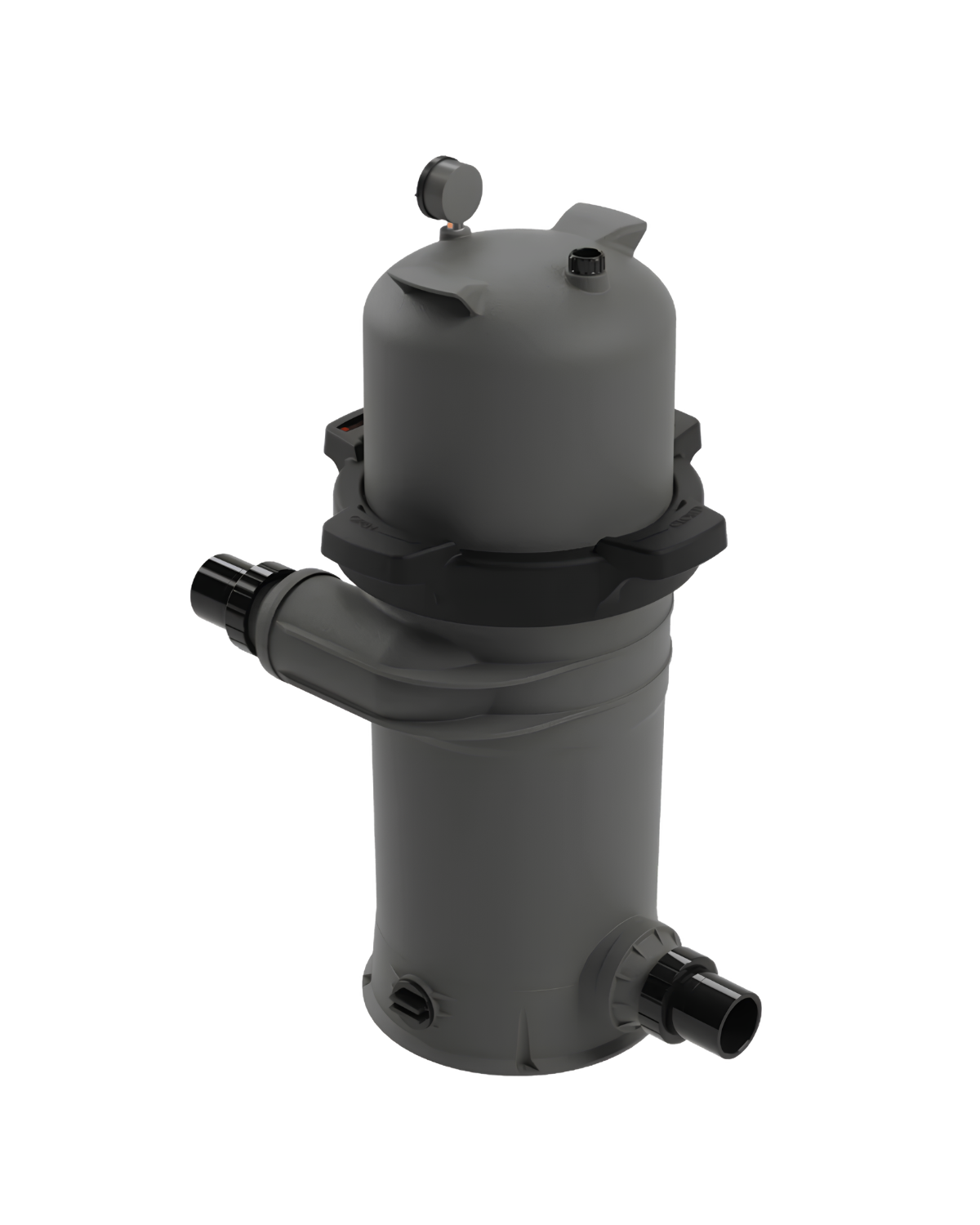

Achieve superior water clarity with this high-capacity 200-square-foot single-element cartridge filter. Designed for high-performance residential pools, it features a rugged, UV-resistant tank and an advanced filtration system that captures fine particles without the need for backwashing. The EliteCLEAR 200 includes a quick-release locking ring latch for rapid maintenance, an easy-grip lid handle, and a smart indicative pressure gauge. Its compact, low-profile design ensures it fits easily onto standard equipment pads while delivering a massive 120 GPM flow rate for crystal-clear results.



Key Features & Points

  • High-Capacity 200 Sq. Ft. Element: Provides a massive filtration surface area to trap more dirt and debris, significantly extending the time between cleanings.
  • Eco-Friendly Operation: Saves thousands of gallons of water and chemicals annually by eliminating backwashing.

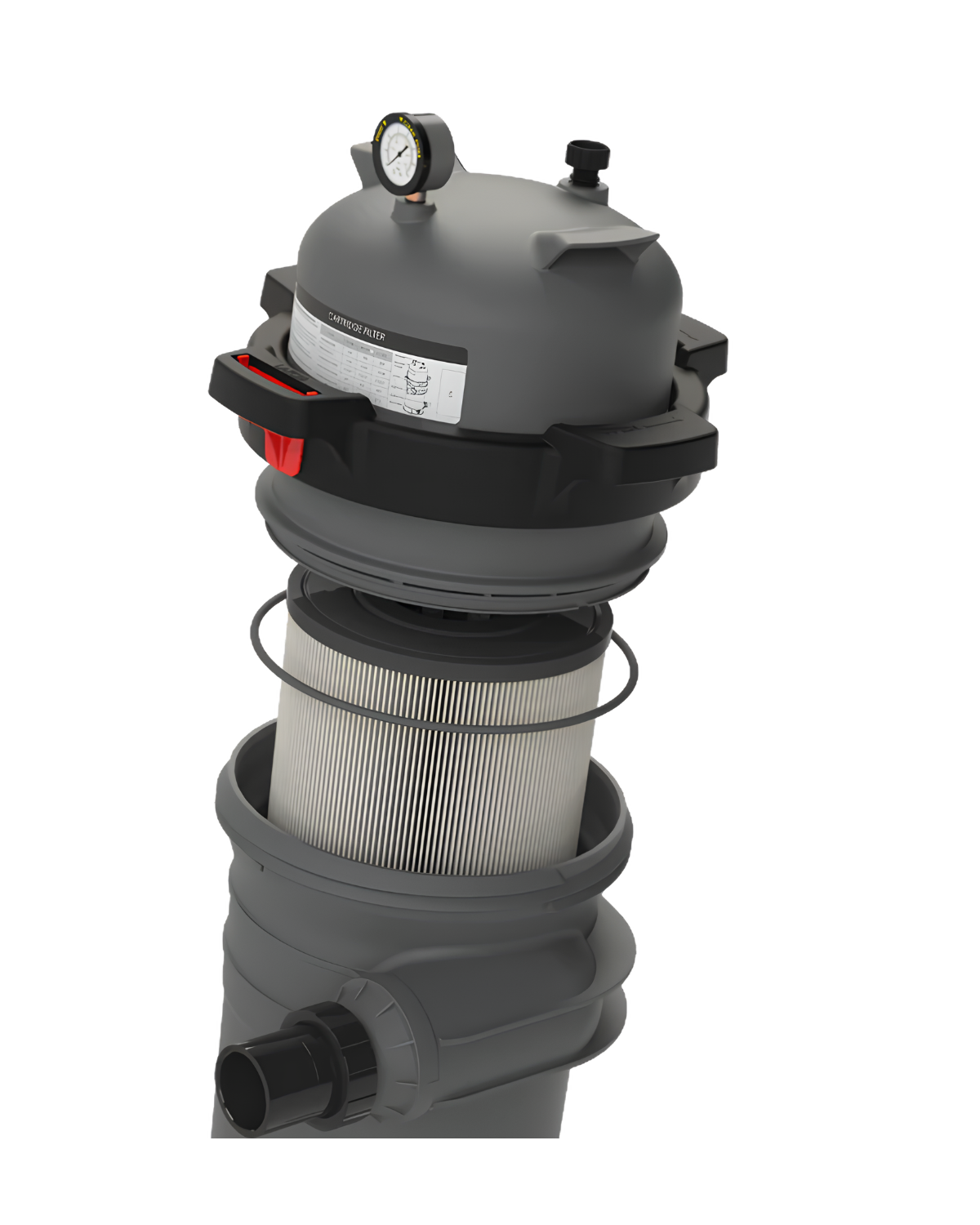

  • Maintenance-First Design: Equipped with an easy-grip lid handle and a locking ring featuring a quick-release latch for effortless access.
  • Built for Longevity: Constructed from high-strength, UV-resistant plastic with a weatherproof, cylindrical, rounded top for a long service life.
  • Real-Time Monitoring: The smart indicative pressure gauge provides a clear visual signal when the filter element requires servicing.
  • Fast Winterization: Features a large 1.5-inch water drain for quick and easy tank drainage during seasonal closings.


Warranty

Click here to view warranty information
What installation covers

Filter Installation Option Details: Covers replacement of an existing pool filter only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties. (Please note that installation costs are not included in the equipment price. Installation services are sold separately.)

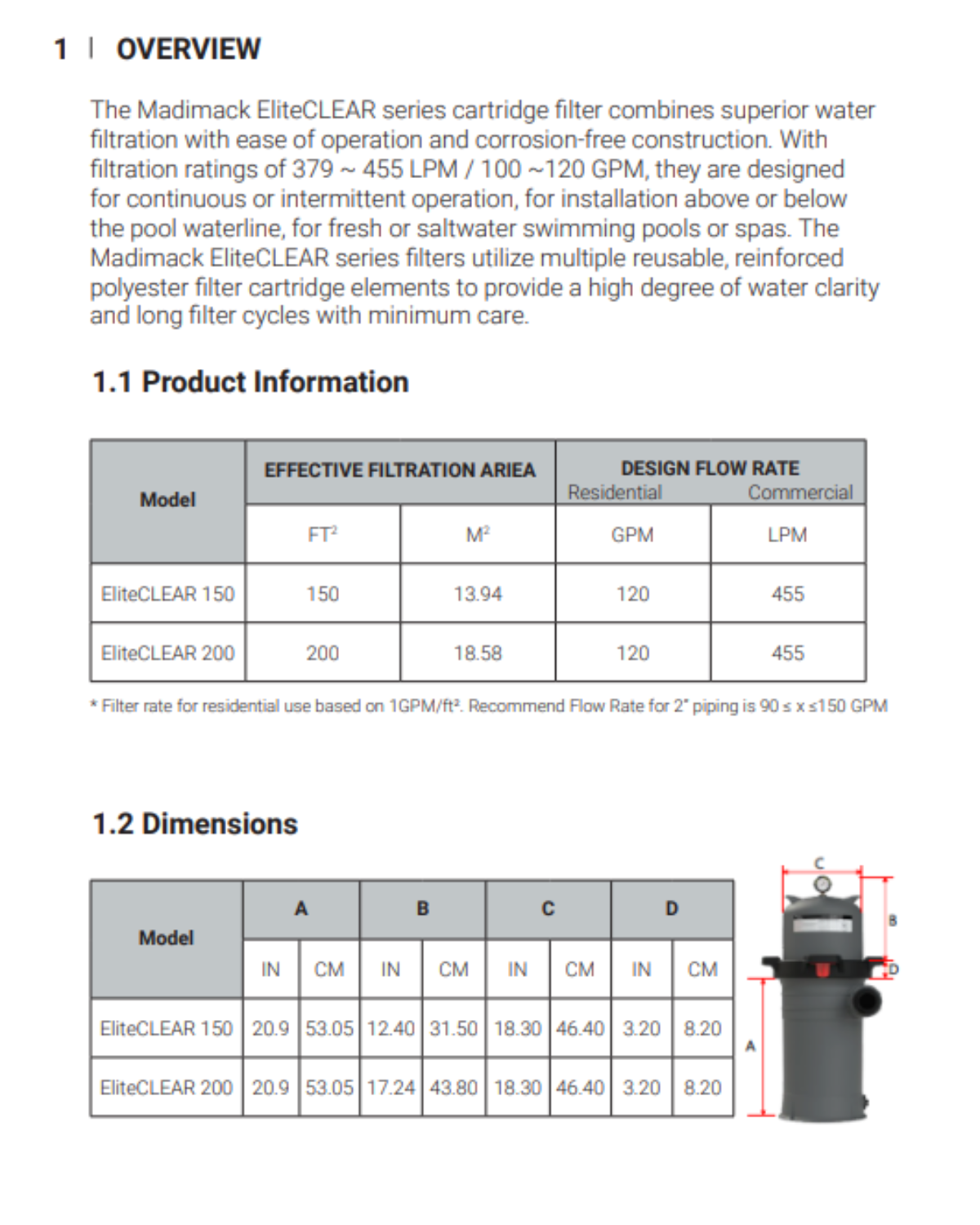

Specifications

Specifications

200 Sq. Ft. Single-Element Cartridge Filter (71101 / EliteCLEAR 200)

Achieve superior water clarity with this high-capacity 200-square-foot single-element cartridge filter. Designed for high-performance residential pools, it features a rugged, UV-resistant tank and an advanced filtration system that captures fine particles without the need for backwashing.

Model Number 71101 / EliteCLEAR 200
Filter Area 200 Sq. Ft.
Maximum Flow Rate 120 GPM
Max Operating Pressure 50 PSI
Connection Size 1.5" / 2" or 2" / 2.5"
Unit Height 36.0" (91.2 cm)
Diameter 18.3" (46.4 cm)
Side Clearance Req. 18.3" (46.4 cm)
Vertical Clearance Req. 18.0" (45.0 cm)
Drain Size 1.5" Rapid Drain

Safety Warnings & Professional Requirements

Pressure Safety: NEVER attempt to open the locking ring latch while the pump is running. Always turn off power and bleed air through the relief valve until the gauge reads zero.
Chemical Precautions: Never add pool chemicals directly into the skimmer; concentrated chemicals can damage the filter element before they are properly diluted.
Mandatory Installation: It is recommended that this high-pressure vessel be installed by a qualified professional to ensure safety and local code compliance.
💡 Pro-Tips for Peak Efficiency
  • Eco-Friendly: Saves thousands of gallons of water and chemicals annually by eliminating the backwashing process required by standard filters.
  • Rinse Routine: Simply rinse the element with a standard garden hose. Avoid using high-pressure sprayers, which can damage the fine filter media.
  • Pressure Baseline: Clean the cartridge once the pressure rises 8-10 PSI above the "clean" baseline noted when the element was new or freshly cleaned.
  • Monitoring: The smart indicative pressure gauge provides a clear visual signal when the filter element requires servicing.
⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

User Disclaimer: Ensure minimum vertical and side clearances are met during installation for maintenance access. Operating in water exceeding temperature limits can compromise the structural integrity of the UV-resistant tank.
