Madimack 71100 EliteClear 150 sq ft Cartridge Pool Filter

$840.00
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days

Pickup available at Online Only

Usually ready in 24 hours

View Specifications
Product Description

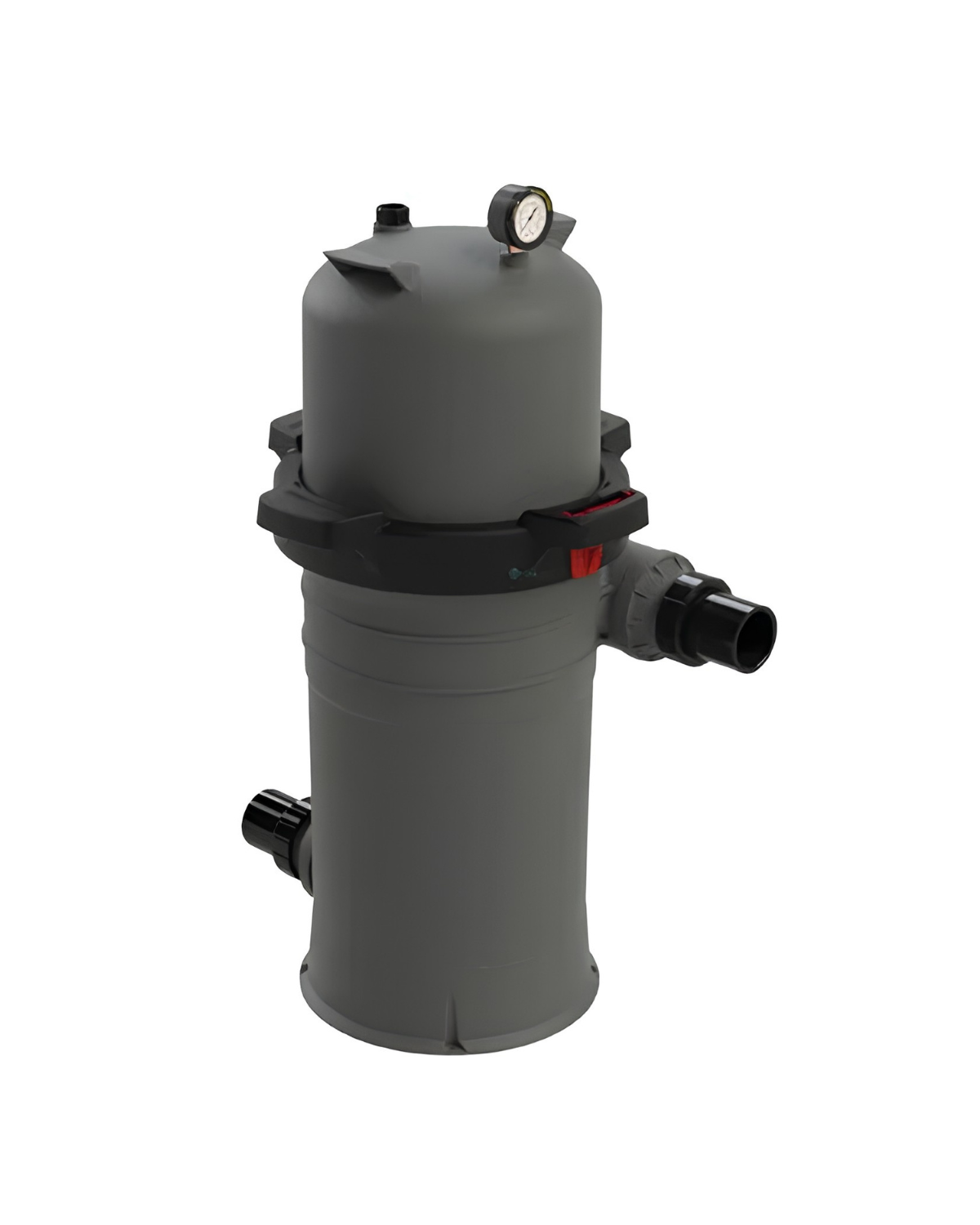

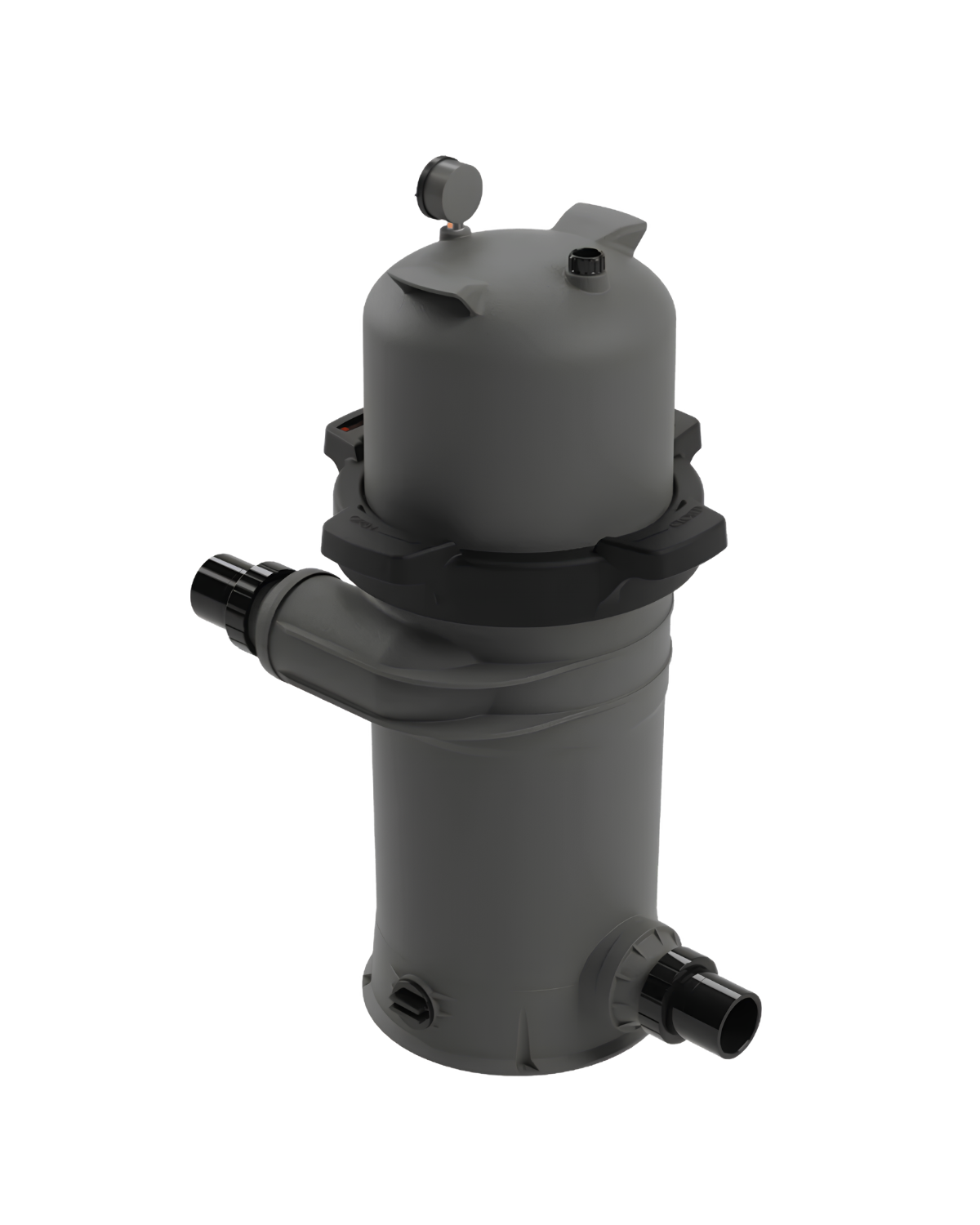

Achieve sparkling clear pool water with this high-flow 150-square-foot single-element cartridge filter. Designed for durability and efficiency, it features a high-strength, UV-resistant tank and a compact, low-profile design ideal for tight equipment pads. The advanced filtration system traps fine dirt and debris without backwashing, significantly saving water and chemicals. Equipped with an easy-grip lid handle, a smart indicative pressure gauge, and a quick-release locking ring, it offers effortless maintenance for residential pools up to 120 GPM.



Key Features & Points

  • Large One-Piece Element: Provides 150 sq. ft. of filtration surface area, trapping more debris and reducing cleaning frequency compared to smaller units.

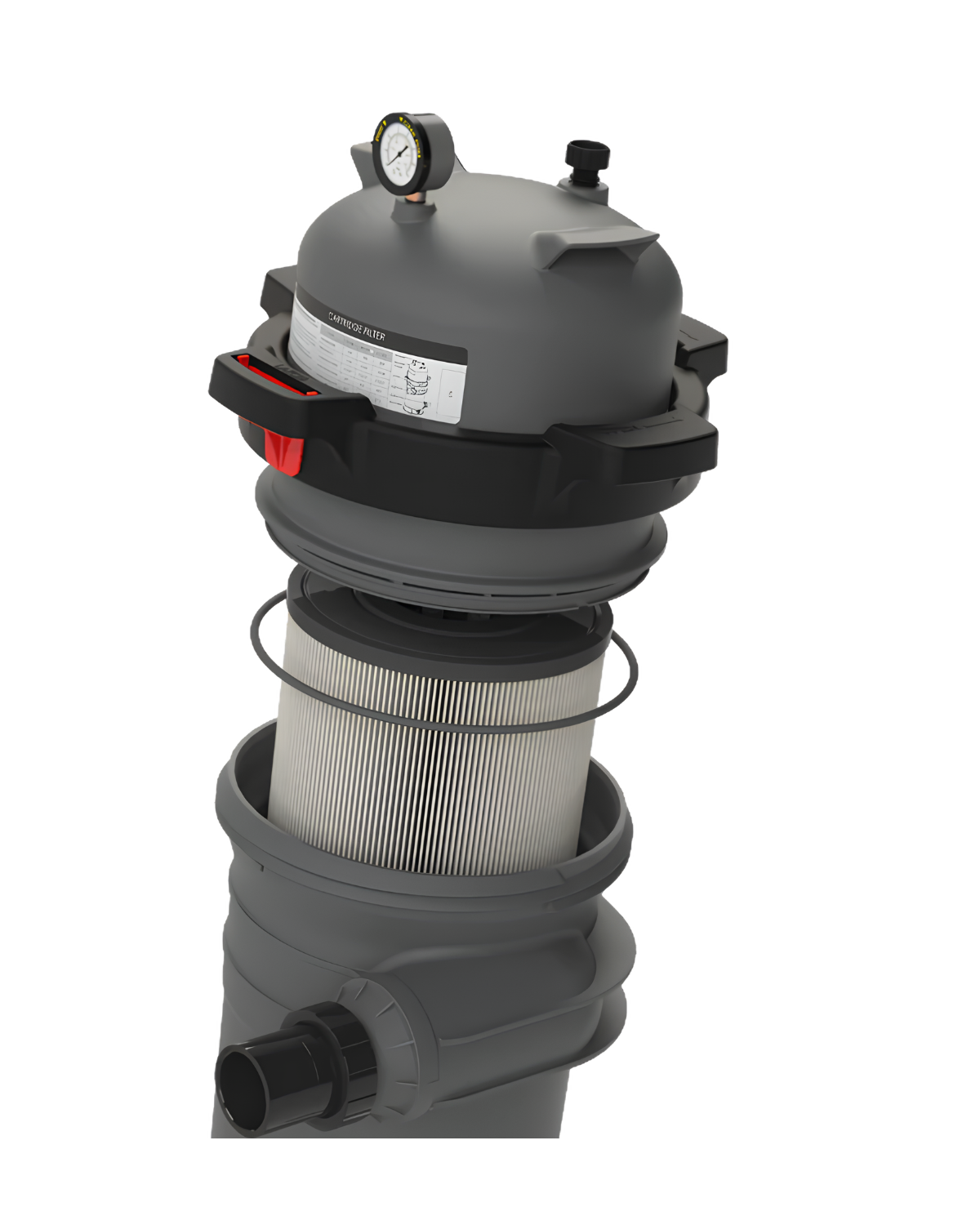

  • Maintenance-Friendly Design: Features a quick-release latch on the locking ring for fast access and an easy-grip handle for effortless lid removal.
  • Sustainability: Eliminates the need for backwashing, preserving thousands of gallons of treated pool water and chemicals annually.
  • Durability: Constructed with a UV-resistant, weatherproof, cylindrical, rounded tank designed for a long lifespan in harsh outdoor conditions.
  • Monitoring & Safety: Includes a smart indicative pressure gauge that clearly signals when the element requires rinsing.
  • Fast Winterization: Integrated large 1.5-inch water drain enables rapid and simple tank drainage for seasonal closing.


Warranty

Click here to view warranty information
What installation covers

Filter Installation Option Details: Covers replacement of an existing pool filter only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties. (Please note that installation costs are not included in the equipment price. Installation services are sold separately.)
Specifications

Specifications

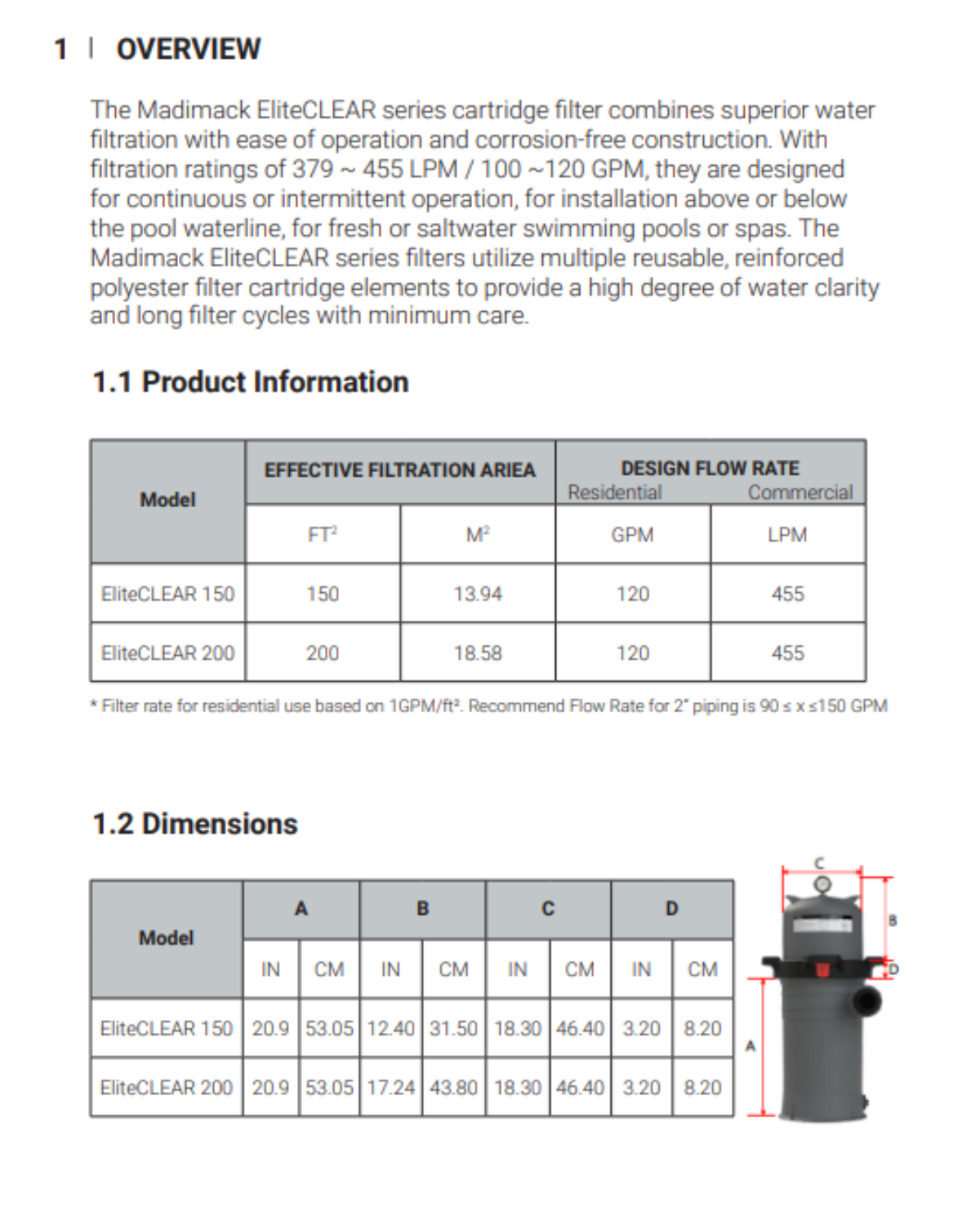

150 Sq. Ft. Single-Element Cartridge Filter (Model 71100)

Achieve sparkling clear pool water with this high-flow 150-square-foot filtration system. Designed for durability and efficiency, it features a high-strength UV-resistant tank and advanced debris-trapping technology that eliminates the need for backwashing, saving thousands of gallons of water annually.

Model Number 71100 / EliteCLEAR 150
Filter Area 150 Sq. Ft.
Max Flow Rate 120 GPM
Max Operating Pressure 50 PSI
Connection Size 1.5" / 2" / 2.5"
Unit Height 36.0 Inches
Tank Diameter 18.3 Inches
Vertical Clearance Req. 18.0 Inches
Side Clearance Req. 18.3 Inches
Drain Size 1.5" Rapid Drain

Safety Warnings & Compliance

Pressure Safety: NEVER attempt to open the locking ring while the pump is running. Always turn off the power and open the air relief valve until the gauge reads zero.
Chemical Mixing: Never add pool chemicals directly into the skimmer. Concentrated chemicals can damage the internal filter element fibers before they are properly diluted.
Installation: To ensure compliance with local plumbing codes and equipment safety, this high-pressure vessel must be installed by a qualified professional.
💡 Pro-Tips for Peak Efficiency
  • Rinse, Don't Scrub: Use a standard garden hose to clean the element. Avoid high-pressure power washers, as they can tear the fine filter media.
  • The 10 PSI Rule: Clean the cartridge as soon as the pressure rises 8-10 PSI above your "clean" baseline to maintain optimal flow and turnover.
  • Quick Maintenance: Features a quick-release latch on the locking ring and an easy-grip lid handle for effortless seasonal maintenance.
  • Winterization: Use the integrated 1.5-inch water drain for rapid and simple tank drainage during seasonal pool closings.
⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

User Disclaimer: Ensure minimum vertical and side clearances are met during installation to allow for element removal. Maximum water temperature limits apply to maintain tank structural integrity.
