Jandy

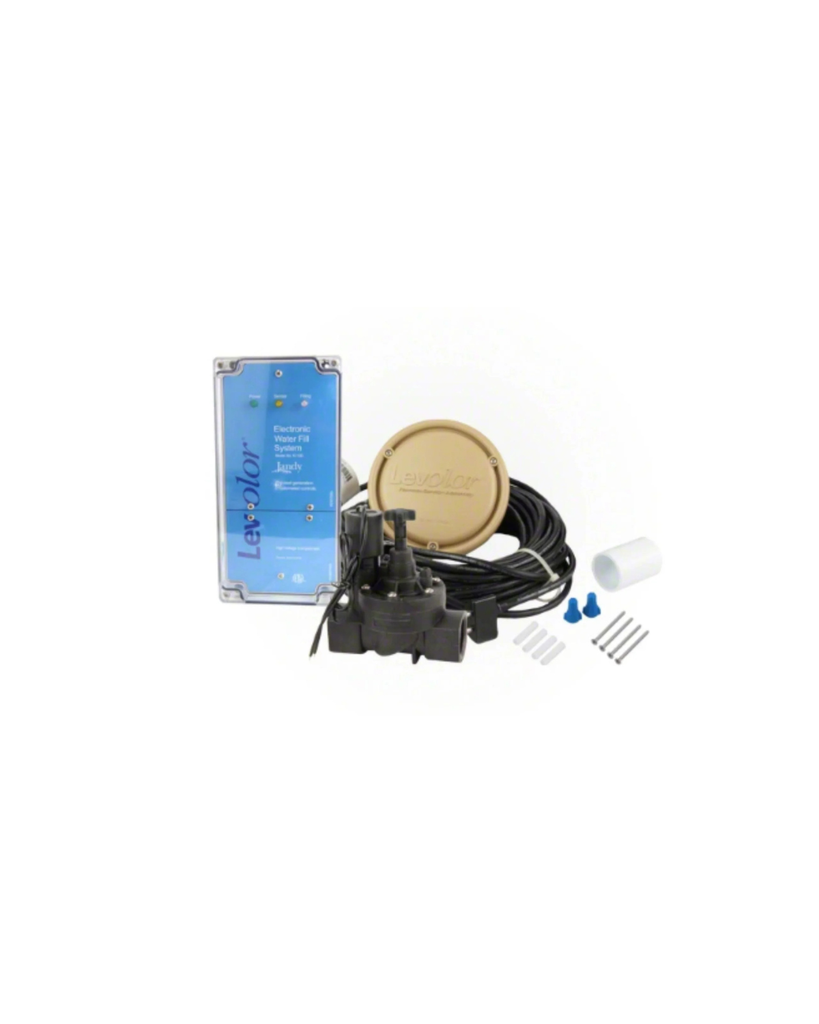

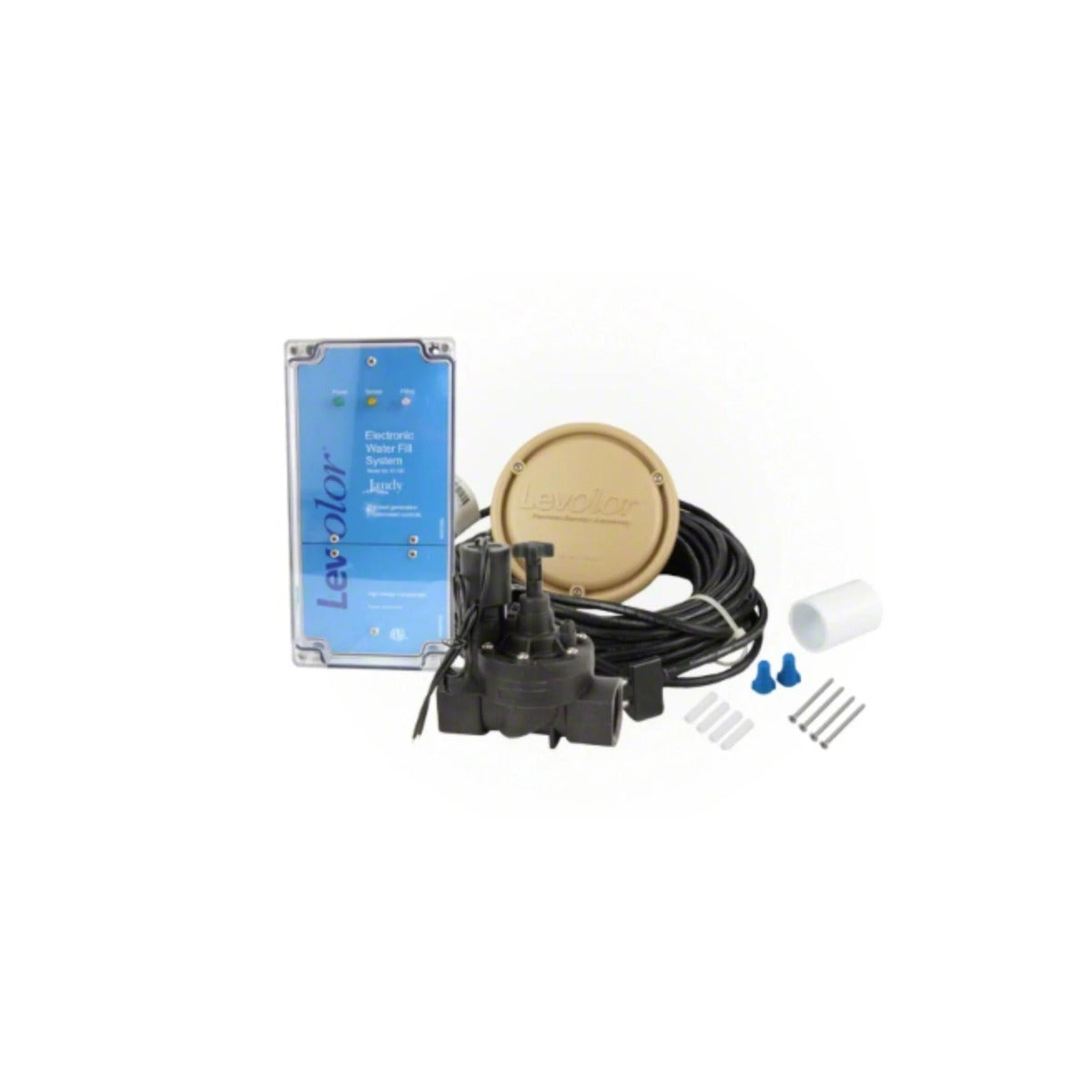

Levolor with Sensor 200' and 1" Valve K1100CKG
$850.00
/
Shipping calculated at checkout.
Request a Quote
Fast shipping
Ships in 2 to 3 business days
Product Description
Eliminate the hassle of manual pool filling and prevent expensive equipment damage with the Jandy K1100CKG Levolor Electronic Water Leveling System (SKU: K1100CKG). This professional-grade, computer-controlled auto-fill device is designed for reliable, hands-off operation in new or existing pools, spas, fountains, and vanishing edge systems.
Key Features & Benefits:
- Fully Automatic Operation: Detects low water conditions using an electronic sensor probe and automatically opens the 1" solenoid valve to restore water to a pre-set level, eliminating the need for a garden hose.
- No Moving Parts: Features sophisticated electronics and no mechanical floats or moving parts to break or rust, ensuring long-term reliability and fewer service calls.
- Advanced Safety Features: Includes a built-in time-out sequence that guarantees against overfilling and helps identify potential leaks in the system. It even compensates for waves or surface disturbances to prevent false readings during windy conditions.
- Flexible Installation: The system controller is housed in a waterproof enclosure suitable for mechanical rooms and can be installed in a skimmer or static pipe.
- Extended 200-Foot Sensor: The generous 200' sensor cord provides exceptional installation flexibility for large or complex pool and water feature layouts.
- Dual Voltage Compatible: The controller is field-adjustable to work with both 110V and 220V electrical supplies for versatile application.
Specifications
Product Name
Jandy Levolor Electronic Water Leveler
Model Number
K1100CKG
Valve Size
1" Solenoid Valve (SOL100)
Sensor Cable
200 Feet (#18 Solid Core)
Input Voltage
110/220 VAC (Field Adjustable)
Max Valve Pressure
125 PSI
Output Voltage
24 VAC @ 1 AMP
Fill Safety Lockout
20 min (Adj. to 40/60 min)
Level Accuracy
Within 1/16"
Certifications
ETL Listed (to UL standards)
Pro Tips for Professional Results
- Continuous Wire: Sensor wires must be continuous. Never splice them; soldering and grease-filled wire nuts are required for all low-voltage connections.
- Lockout Reset: If the 20-minute safety lockout activates (red Fill light), simply cycle the power at the main breaker to reset the system.
- Valve Orientation: Always install the valve with the flow arrow pointing toward the pool/spa. The manual lever should be in the horizontal (closed) position for electronic control.
- Strainers: Jandy strongly recommends installing an in-line brass Y-strainer before the solenoid valve to prevent debris from clogging the internal diaphragm.
Warnings and Disclaimers
- Electric Shock Hazard: Install the control box at least 5 feet (1.5m) from the pool edge. Canadian codes require a 3-meter distance.
- Pressure Limit: Do not exceed the 125 PSI maximum pressure rating on the 1" solenoid valve to avoid internal failure or leaks.
- Professional Installation: This product must be installed by a qualified service technician. Improper wiring can void the warranty and create electrical hazards.
- Anti-Siphon Requirement: An anti-siphon valve should be installed in the supply line to prevent pool water from siphoning back into the potable water supply.
