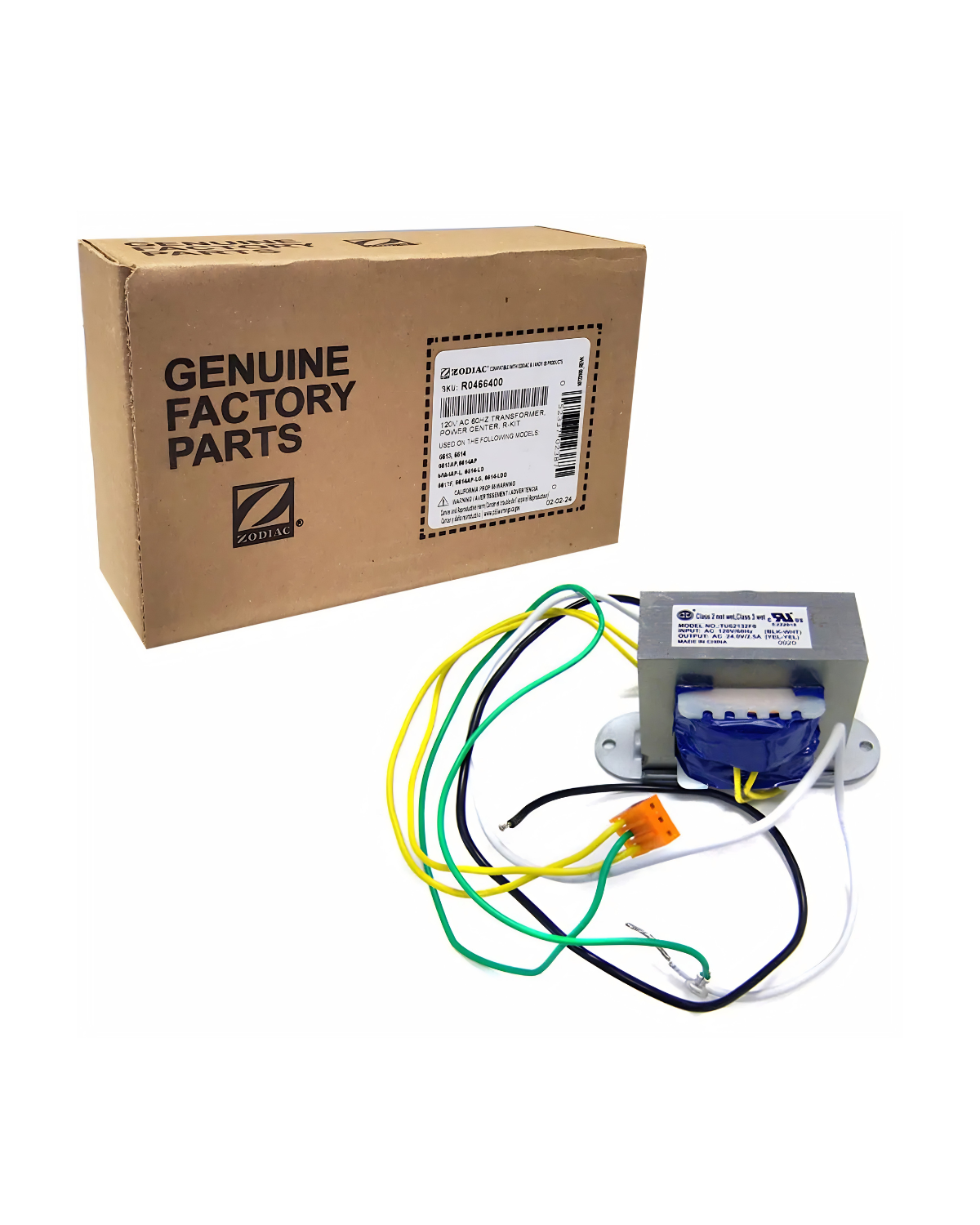

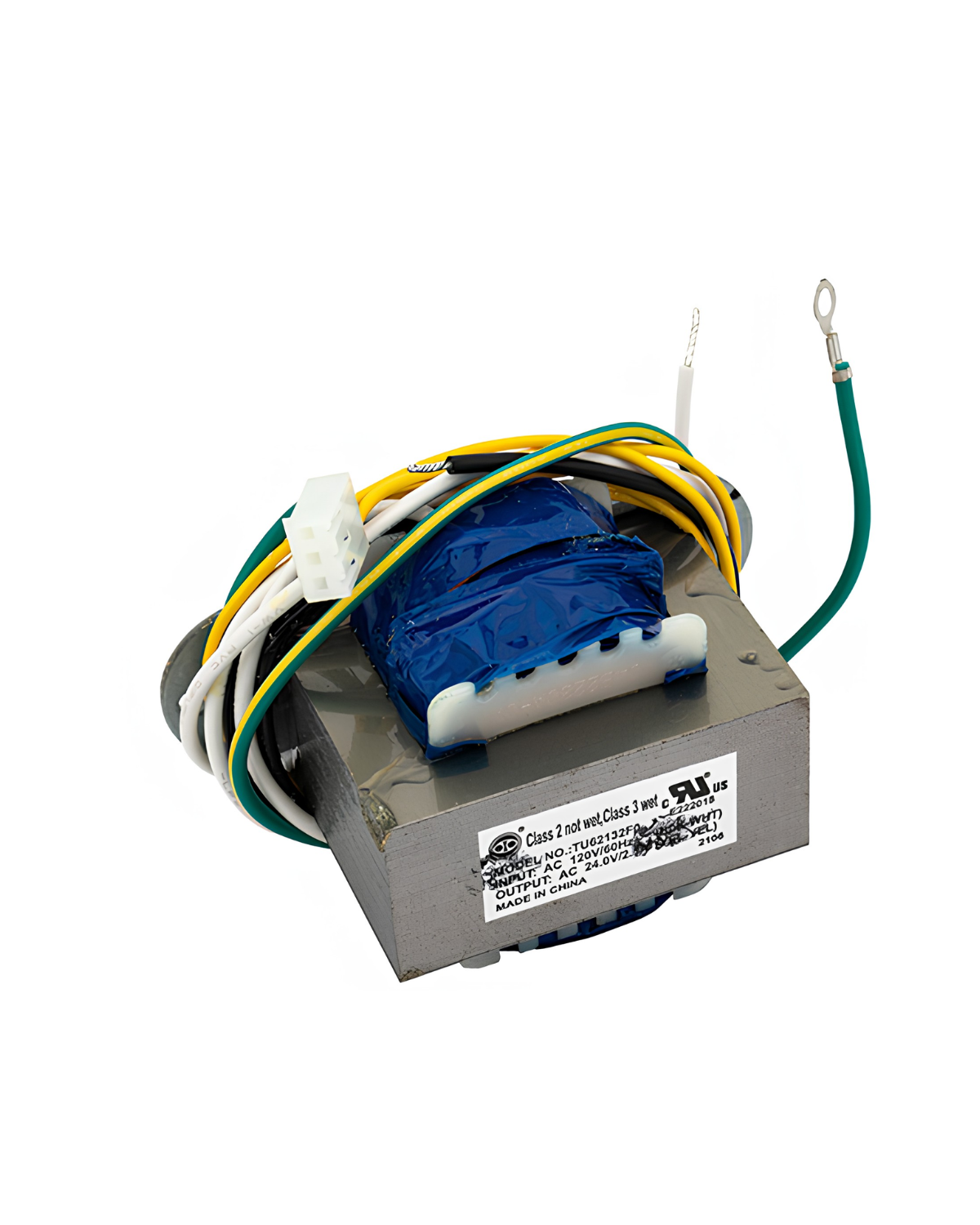

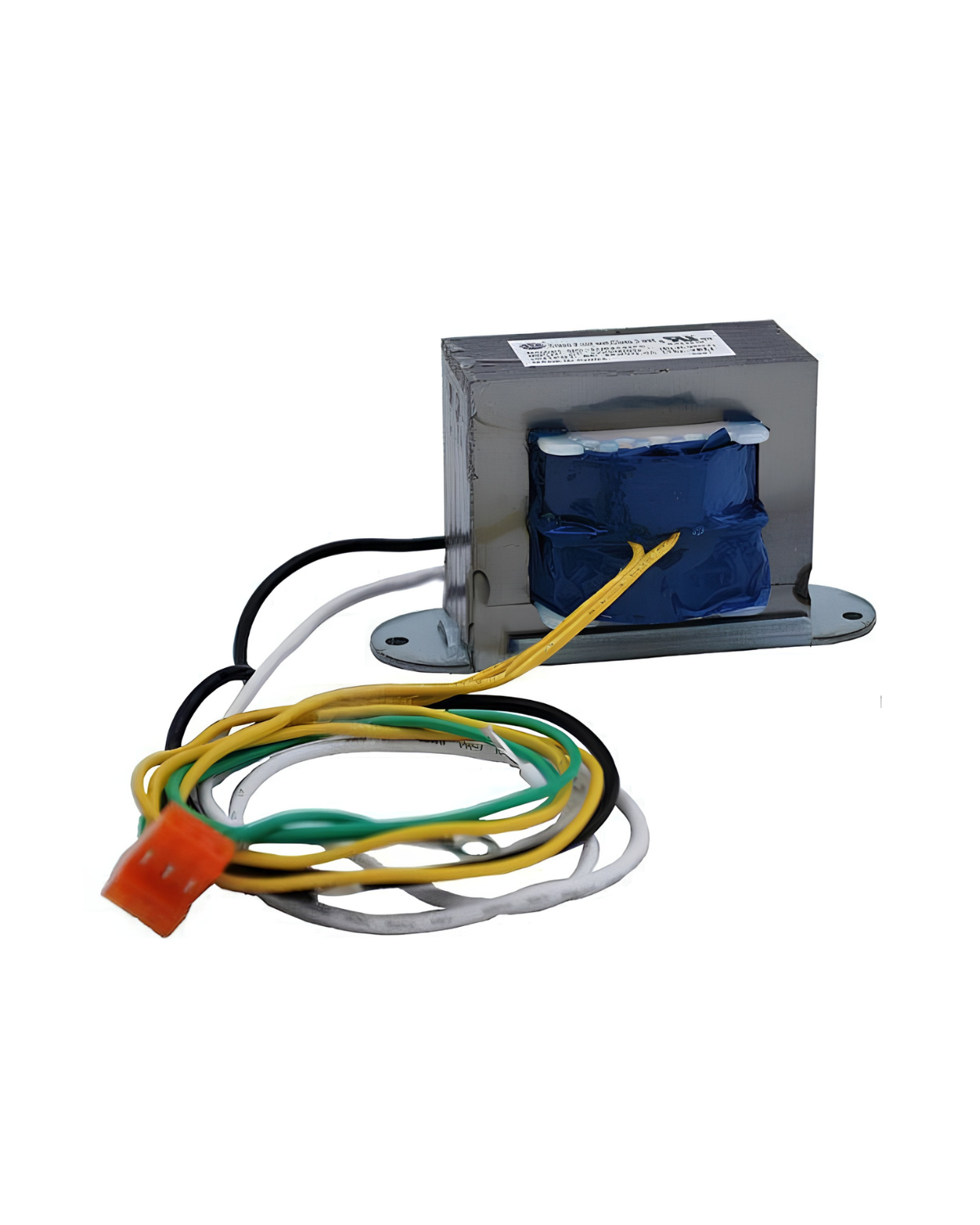

Jandy iAqualink 120/24 VAC Transformer

$225.00 Sold out
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days

Pickup currently unavailable at Marathon FL

View Specifications
Product Description

Restore reliable power to your pool automation with the Jandy R0466400 Transformer. This essential OEM replacement is engineered for seamless integration with AquaLink RS, converting 120 VAC input to 24 VAC output. Built to withstand harsh outdoor conditions, it ensures stable voltage for your control panel, protecting your system from power inconsistencies. Whether repairing a non-responsive panel or performing proactive maintenance, this durable, easy-to-install transformer is the professional choice for maintaining your smart pool environment.

  • Manufacturer Part Number: R0466400
  • UPC Code: 788379652227 (or 52337023870)
  • Input Voltage: 120 VAC, 60 Hz (Standard Household)
  • Output Voltage: 24 VAC
  • Power Rating: ~60 VA (approximately 2.5 Amps at 24 VAC)
  • Material: High-conductivity steel and copper with corrosion-resistant housing
  • Dimensions: 6.7" L x 4.4" H
  • Weight: ~3 lbs
  • Compatibility:
    • AquaLink RS Models: 6612F, 6613, 6614, 6614-LD, 6613AP, 6614AP, 6614AP-L
    • AquaSwitch Models: 7300, 7488
    • Legacy Systems: Ji 2000 Pool/Spa Control Systems
Specifications

Specifications

Jandy® 120V/24V VAC Transformer Replacement (R0466400)

A genuine OEM step-down transformer designed to power AquaLink RS and AquaSwitch control panels. This unit safely converts standard 120V household voltage to the 24V low voltage required for system automation and logic boards.

Part Number R0466400
UPC Code 788379652227
Input Voltage 120 VAC, 60 Hz
Output Voltage 24 VAC
Power Rating ~60 VA
Output Current ~2.5 Amps
Compatibility AquaLink RS / AquaSwitch
Weight ~3 lbs

Safety Warnings & Professional Requirements

Shock Hazard: DISCONNECT ALL POWER at the main circuit breaker before opening the control enclosure or attempting installation. High voltage can cause severe injury or death.
Correct Voltage Only: This is a 120V input model. Connecting to a 240V power source will result in immediate hardware failure and potential damage to the control board.
Qualified Installation: Electrical pool equipment must be installed by a qualified professional to ensure compliance with the National Electrical Code (NEC).
💡 Pro-Tips for System Diagnosis
  • Unresponsive Panel: If the control panel is dead, check the system fuses first. If the fuses are intact but there is no 24V output, the transformer has likely failed.
  • Ventilation: Mount the unit in a well-ventilated area within the power center. Excess heat can shorten the lifespan of the internal electrical coils.
  • Secure Connections: Ensure all wire leads are firmly connected. Loose connections cause arcing, which results in erratic system behavior and potential fire risk.
  • Legacy Support: This transformer is also compatible with Ji 2000 legacy pool/spa control systems.
⚠️ WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.

User Disclaimer: Verify your specific power center model number before purchase. AquaLink RS models 6612F, 6613, 6614, and AquaSwitch 7300/7488 are supported.
