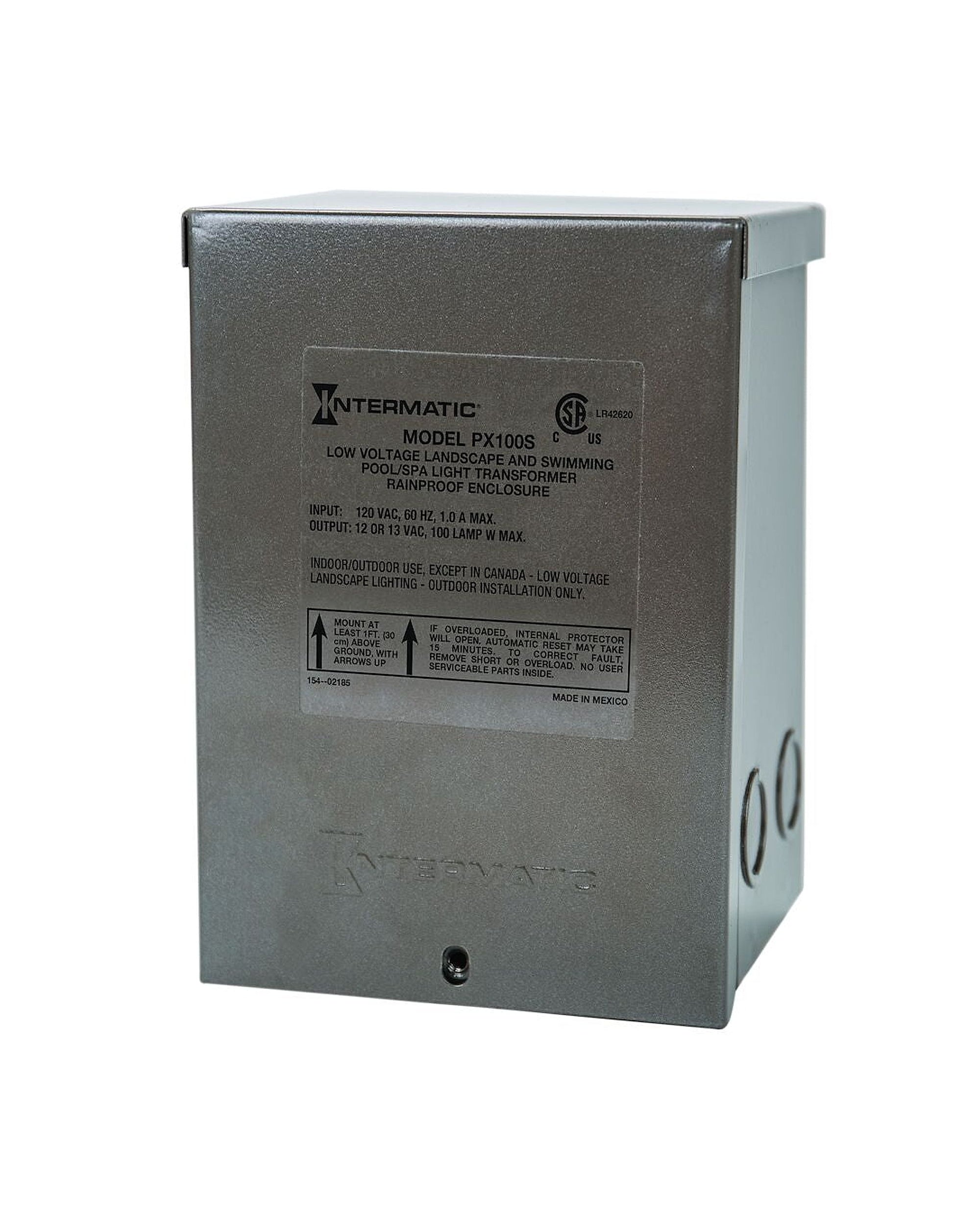

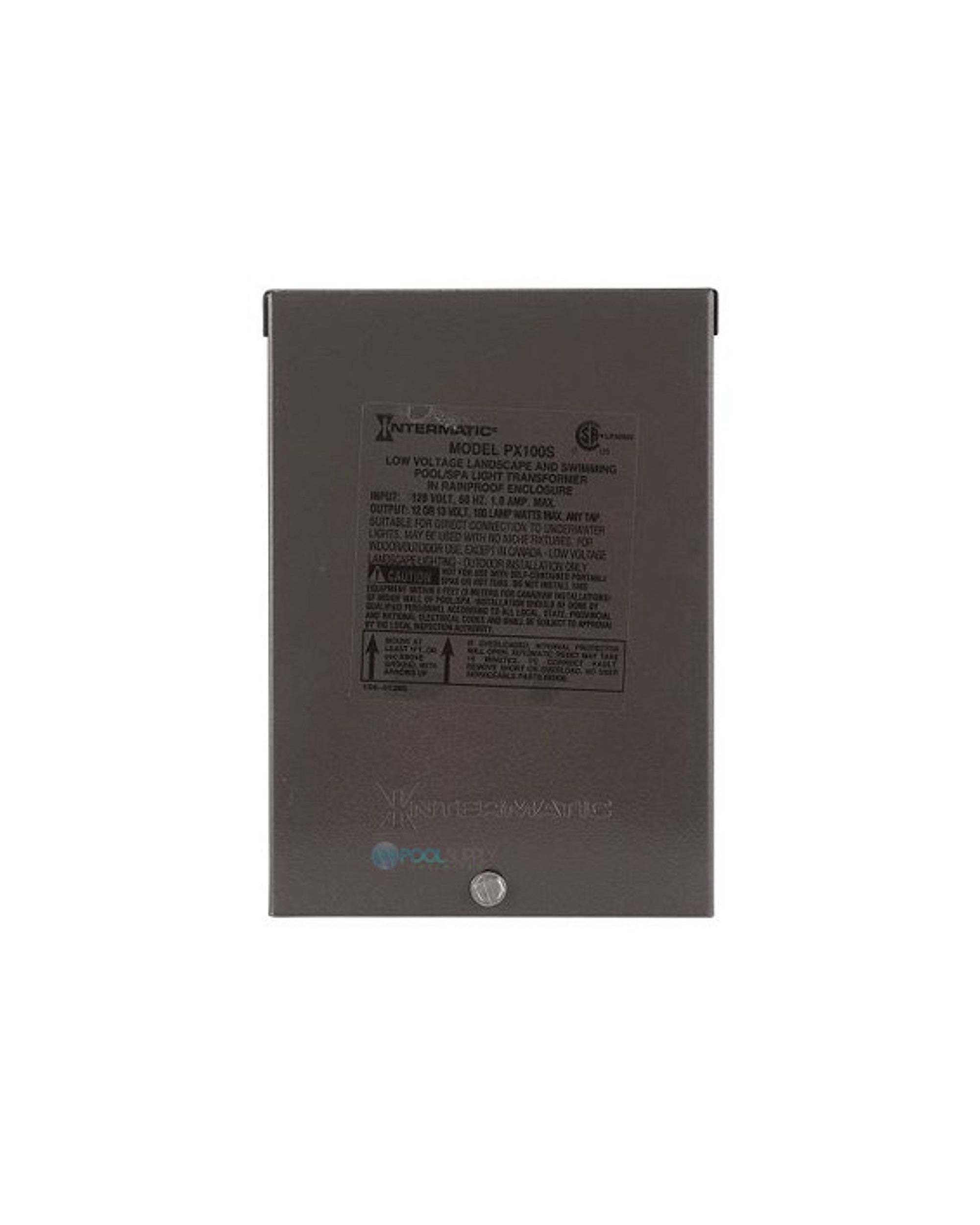

Intermatic PX100S 100W Pool & Spa Safety Transformer, Stainless

The Intermatic PX100S is a 100W pool and spa safety transformer built for harsh, high-humidity, chemical-laden environments around pools and spas. Its stainless steel two-piece enclosure resists corrosion while the two-bobbin winding design with a safety shield between primary and secondary windings ensures safe, quiet operation. Selectable 12, 13, or 14 VAC output makes it easy to match voltage requirements over long wire runs, and built-in automatic-reset circuit protection guards against overload. It's suitable for direct connection to underwater pool/spa lights and outdoor landscape lighting installations.

  • Stainless steel enclosure for superior corrosion resistance in wet, chemical environments
  • Selectable 12/13/14 VAC output for flexible voltage tuning on long cable runs
  • Automatic-reset breaker disconnects power in case of defect or overload
  • Vacuum-impregnated two-bobbin construction for quieter, cooler, more efficient operation
  • Mounting brackets top and bottom with convenient knockouts for easy wiring
Specifications

Specifications

Intermatic PX100S 100W Pool & Spa Safety Transformer, Stainless

The PX100S is a 100 W stainless steel safety transformer built to step down 120 VAC input to a selectable 12, 13, or 14 VAC output for underwater pool and spa lighting as well as landscape lighting circuits. Its non-magnetic stainless steel enclosure is designed to resist the humidity, heat, and chemical exposure typical around pools and spas while operating with reduced audible hum. Built-in automatic-reset circuit protection and a shielded, vacuum-impregnated winding design help ensure safe, reliable, low-maintenance operation.

BrandIntermatic
Product Name100 W Pool & Spa Safety Transformer, Stainless Steel Enclosure
Model / SKUPX100S
UPC Code078275067561
Product TypePool & Spa / Landscape Lighting Safety Transformer
Country of OriginU.S.A. (Intermatic)
Enclosure TypeType 3R, Brown Stainless Steel (0.036")
ColorGray
UL CertificationUL Swimming Pool Transformer
Other CertificationsNEC Code 680.23
Transformer Input120 VAC, 1 A, 60 Hz
Transformer OutputSelectable 12, 13, or 14 VAC
Maximum Power Consumption100 W
Product Dimensions (H x W x D)7.25" x 5.25" x 4.5"
Knockouts(4) Bottom, (2) Back, (2) Left, (2) Right - 1/2"-3/4" combination
Shipping Weight5.751 lbs
Unit Carton Dimensions (H x W x L)7.88" x 4.56" x 5.69"
Units Per Pallet168
RoHS CertificationN/A
California Proposition 65DEHP - see Warning at P65Warnings.ca.gov

Key Features & Performance

Automatic Breaker Reset: Built-in circuit protection disconnects power temporarily in case of overload, and all transformer models are safeguarded by an integral automatic-reset protector.
Selectable Output Voltage: The output voltage of the secondary is selectable depending on the input connections, allowing 12, 13, or 14 VAC output to compensate for voltage drop on long wire runs.
Super Quiet Stainless Steel Construction: The non-magnetic stainless steel enclosure reduces audible hum in low-voltage lighting applications while resisting corrosion from pool/spa chemicals, humidity, and heat.
Shielded, Vacuum-Impregnated Windings: Built using a two-bobbin process with a safety shield between the primary and secondary windings; the entire transformer is vacuum impregnated to resist moisture for cooler, more efficient, and quieter operation.
Wiring Flexibility: With the cover removed, the high and low voltage compartments are fully exposed and knockouts make wiring extremely convenient, with extra enclosure space to simplify installation.
Installation & Compatibility
  • NEC 680.23 Compliance: This transformer complies with NEC Code 680.23 requirements for underwater luminaries, making it suitable for direct connection to underwater pool and spa lights.

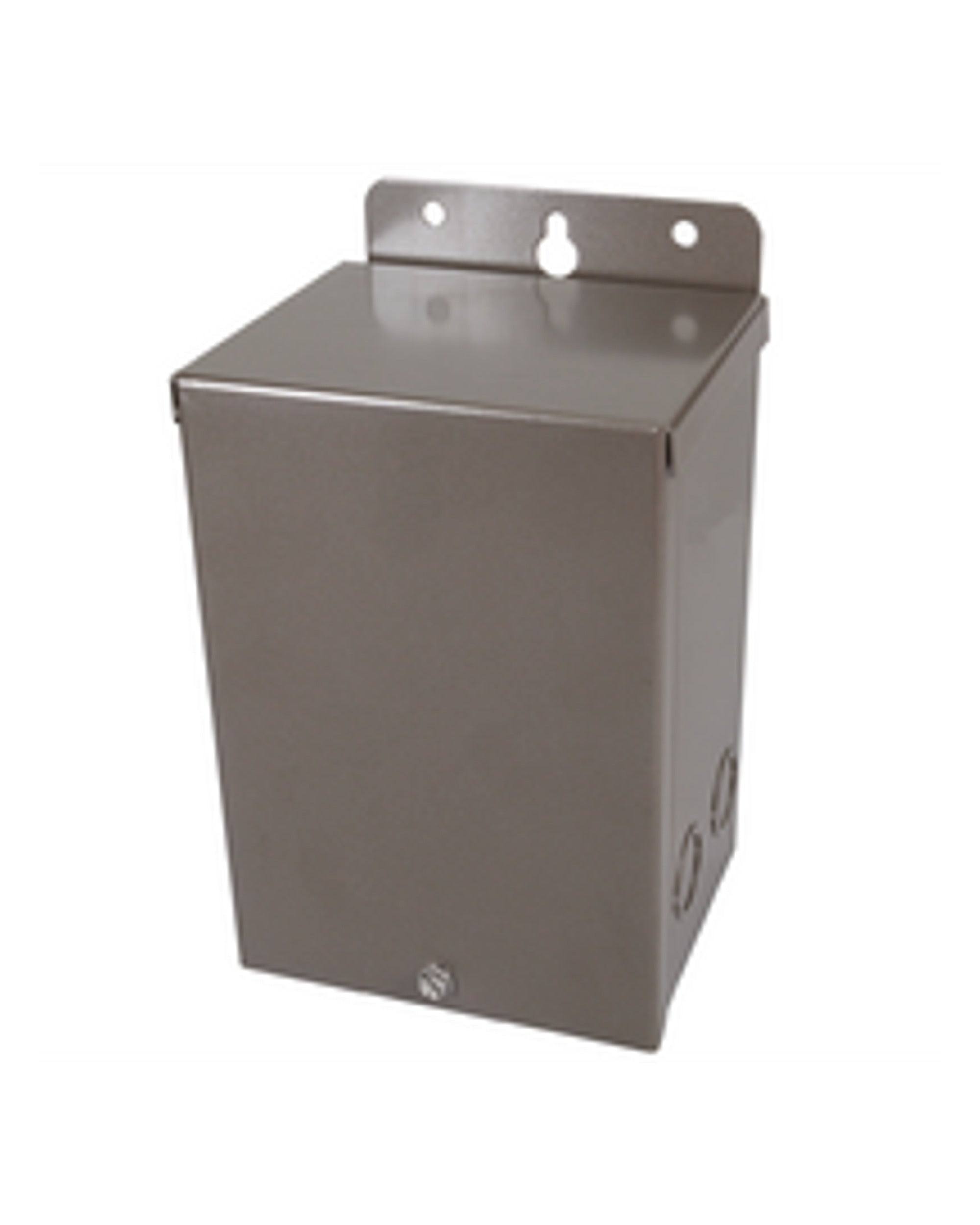

  • Mounting: Mounting brackets are provided on the top and bottom of the enclosure for secure installation.
  • Wire Sizing: Select wire gauge based on cable run length and load using the manufacturer's voltage/wire-gauge selection chart; a minimum of 16 AWG is required for the 100 W transformer, and low-voltage cable must be buried a maximum of 6 inches when used for landscape lighting runs.
  • Do Not Submerge: The transformer must never be submerged, and maximum ratings of individual components, wiring devices, and conductor current-carrying capacity must not be exceeded.
  • Optional Noise Filter: An RC snubber noise filter accessory (part number ET-NF) is available separately to reduce electronic noise and interference in low-voltage lighting applications.
Manufacturer Disclaimer: Technical specifications and other information are subject to change without notice by Intermatic Incorporated, and images can vary from the original product. Because of its commitment to continuing research and improvements, Intermatic reserves the right to make changes in specifications and materials without notice.

User Safety Disclaimer: This is a low-voltage safety transformer intended for use with pool, spa, and landscape lighting circuits. Users should read and follow all safety instructions and basic safety precautions before installation or operation, as improper use presents a risk of fire or electrical shock.

Installation and Use Disclaimer: Installation involving wiring through a building structure requires special wiring methods, and the transformer must not be submerged in water. Maximum ratings of individual components, wiring devices, and conductor current-carrying capacity must not be exceeded, and wire gauge/voltage tap selection should follow the manufacturer's cable selection charts. Only CSA- or UL-certified low-voltage cable should be used, and it should be buried no more than 6 inches deep for landscape lighting connections. Installation should be performed by a qualified professional in accordance with the Installation, Operation & Service Manual.

Compatibility Disclaimer: This transformer is designed for direct connection to underwater pool/spa lights, submersible fixtures, and outdoor garden lighting in accordance with NEC Code 680.23. Compatibility with specific fixtures, controls, or accessories (such as the ET-NF noise filter) should be verified with the manufacturer or a qualified installer prior to purchase or installation.

Liability Disclaimer: Intermatic Incorporated shall not be responsible for any damages, direct or consequential, caused by reliance on the material presented in its product literature. MSP Supply provides this specification information as a convenience based on manufacturer-supplied documentation and is not responsible for errors, omissions, or changes made by the manufacturer after publication.

California Proposition 65 Notice: This product carries a California Proposition 65 warning related to DEHP. Please see the full warning at www.P65Warnings.ca.gov for details before use.

Intermatic

PX100S

Intermatic PX100S 100W Pool & Spa Safety Transformer, Stainless

$158.00
Shipping calculated at checkout.

Pickup available at Marathon FL

Usually ready in 24 hours

Secure checkout — all major payment methods accepted

Documents

Intermatic PX100S Pool Spa Safety Transformer Spec Sheet.pdf

Intermatic PX Series Pool Spa Safety Transformers Sell Sheet.pdf

Intermatic PX100PX300 Series Transformers Installation Operation Service Manual.pdf
