Pentair

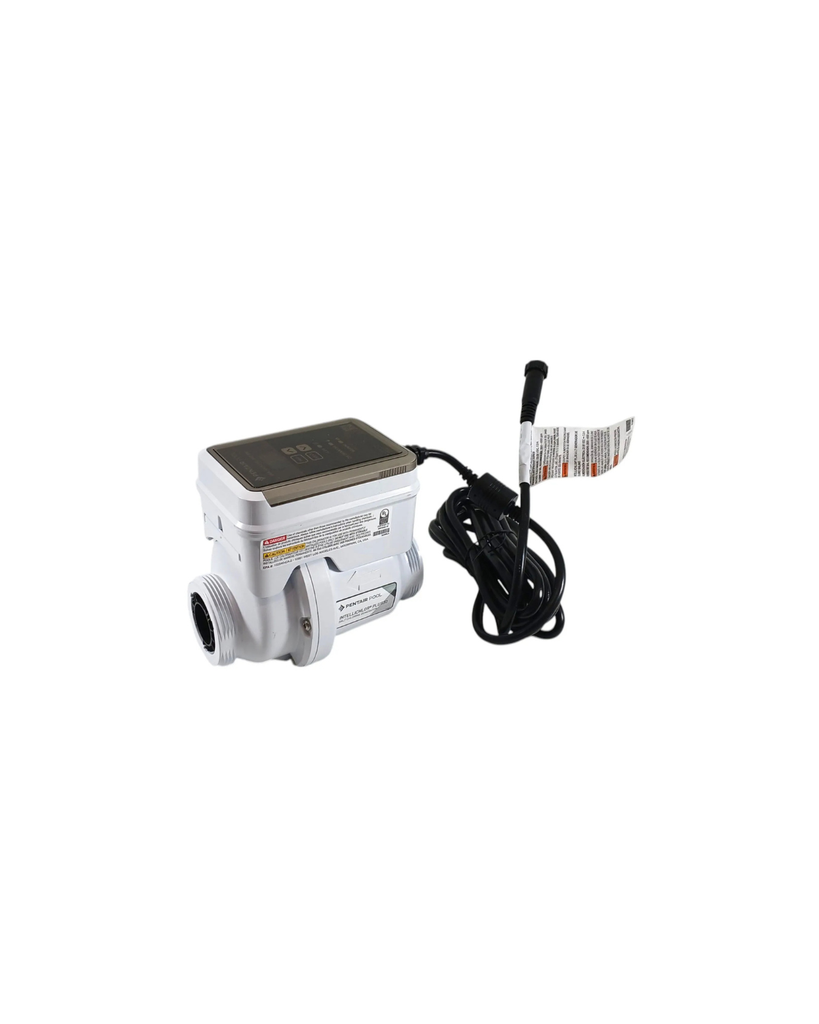

IntelliChlor Plus30 Salt Chlorine Generator Cell Only 30k gal
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description
The Pentair IntelliChlor Plus30 Salt Chlorine Generator Cell (EC-523730) is a high-performance replacement cell designed for residential pools up to 30,000 gallons. It is the upgraded, direct drop-in replacement for the discontinued iChlor 30 (model 523009), requiring no additional plumbing or electrical modifications
Key Features
- Efficient Chlorine Production: Generates approximately 1.10 lbs of pure chlorine every 24 hours, eliminating the need to manually handle, store, or carry traditional chlorine.
- Modular Design: Features a new modular structure that allows for individual replacement of electronics and sensors, reducing maintenance time by over 50%.
- SmartSense™ Technology: Automatically detects pump activity and pool cover status to accurately adjust chlorine output, preventing over-chlorination and extending cell life.
- Advanced Diagnostics: Includes an easy-to-read LCD/LED interface with over 20 built-in diagnostics and warnings for real-time monitoring of salt levels, water flow, and cell status.
- Improved Accuracy: Equipped with a redesigned conductivity sensor that provides salt level readings with 98% accuracy, comparable to laboratory-grade salinity meters.
- Self-Cleaning Function: Uses reverse polarity technology to automatically clean titanium blades, which minimizes calcium and scale buildup to maximize the cell's lifespan.
- Seamless Integration: Fully compatible with existing Pentair automation systems like IntelliCenter®, EasyTouch®, and IntelliTouch® for remote monitoring and control.
Warranty
What installation covers
Salt System Installation Option Details: Covers replacement of an existing salt system only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties. (Please note that installation costs are not included in the equipment price. Installation services are sold separately.)
Specifications
An advanced salt chlorine generator cell designed to replace the discontinued iChlor 30 and first-generation IntelliChlor units for pools up to 30,000 gallons. This "Cell Only" SKU requires an existing Pentair Power Center to function.
| Light Status | Meaning | Action Required |
|---|---|---|
| Solid Green | System Normal | Salt is in ideal range (3,000–4,500 ppm). |
| Flashing Green | High Salt | Above 4,500 ppm. Dilute pool with fresh water. |
| Solid Red | Low Salt | Between 2,600–3,000 ppm. Add salt immediately. |
| Flashing Red | Very Low Salt | Below 2,600 ppm. Unit shutdown triggered. |
⚠️ Critical Safety Warnings
- The Spacer Rule: For newly plastered pools, use a spacer cell (P/N 520588) for the first 30 days to protect titanium blades from plaster dust.
- Vertical Install: Water flow must always be directed upwards through the cell to prevent hazardous gas pockets.
- The 3-Foot Rule: Install the cell at least 3 feet away from your heater outlet to protect sensors from extreme heat.
- Phosphate Check: High phosphate levels act as "chlorine food," making the cell appear to be failing when it is simply being outpaced by consumption.
