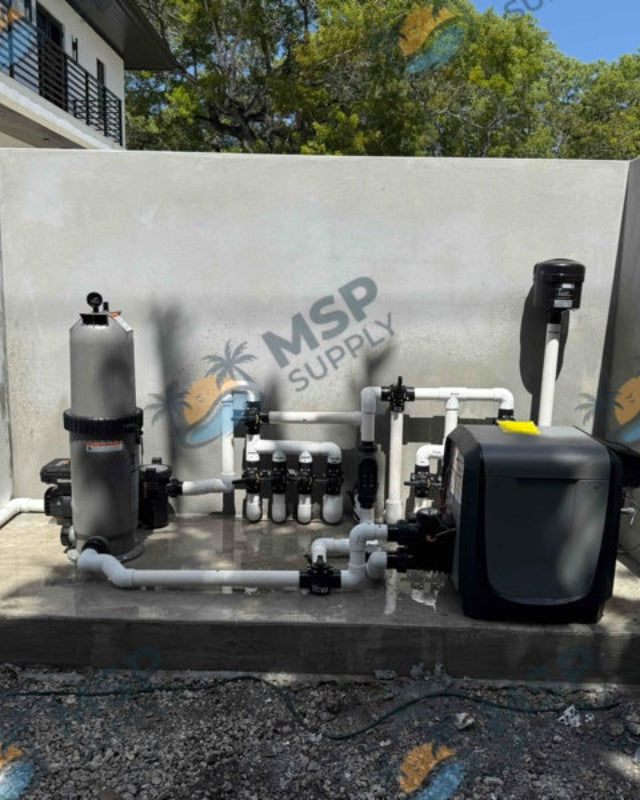

Jandy CS filter in the back Jandy flopro pumps in front Jandy Purelink salt system to the right (PLC1400) Jandy CS filter in the back Jandy flopro pumps in front Jandy Purelink salt system to the right (PLC1400)
Jandy CS filter in the middle Jandy flopro to the right Jandy purelink to the left Jandy CS filter in the middle Jandy flopro to the right Jandy purelink to the left

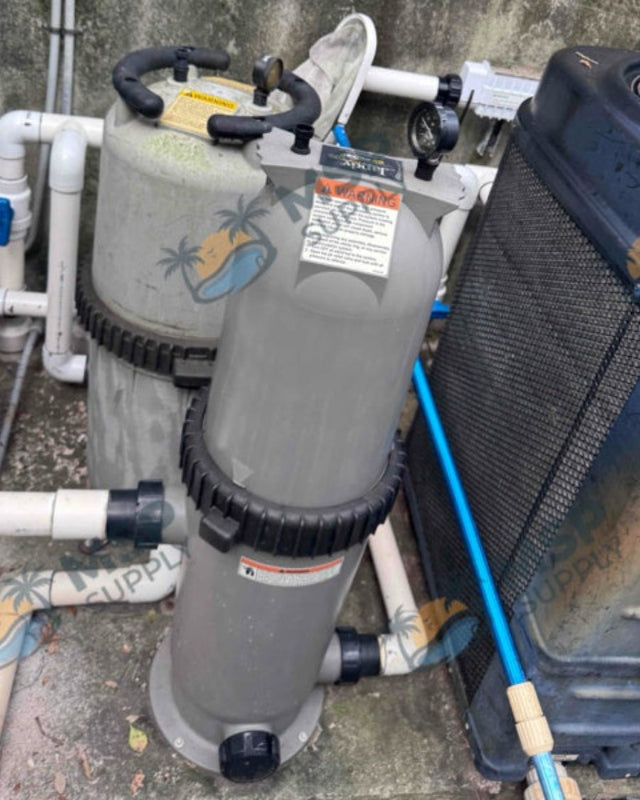

Jandy JRT Heat/cool heat pump to the right Jandy CS Filter on the left Jandy JRT Heat/cool heat pump to the right Jandy CS Filter on the left
Jandy CS filter in the middle. Jandy CS filter in the middle.
Jandy CS Filter in the middle Jandy JRT heat/cool heat pump in the back Jandy Flopro variable speed pump in front of the filter Jandy CS Filter in the middle Jandy JRT heat/cool heat pump in the back Jandy Flopro variable speed pump in front of the filter
Jandy CS series filters Jandy CS series filters
Jandy CS Filter on the left Jandy JXI series on the right Jandy spa air blower on the back right Jandy CS Filter on the left Jandy JXI series on the right Jandy spa air blower on the back right

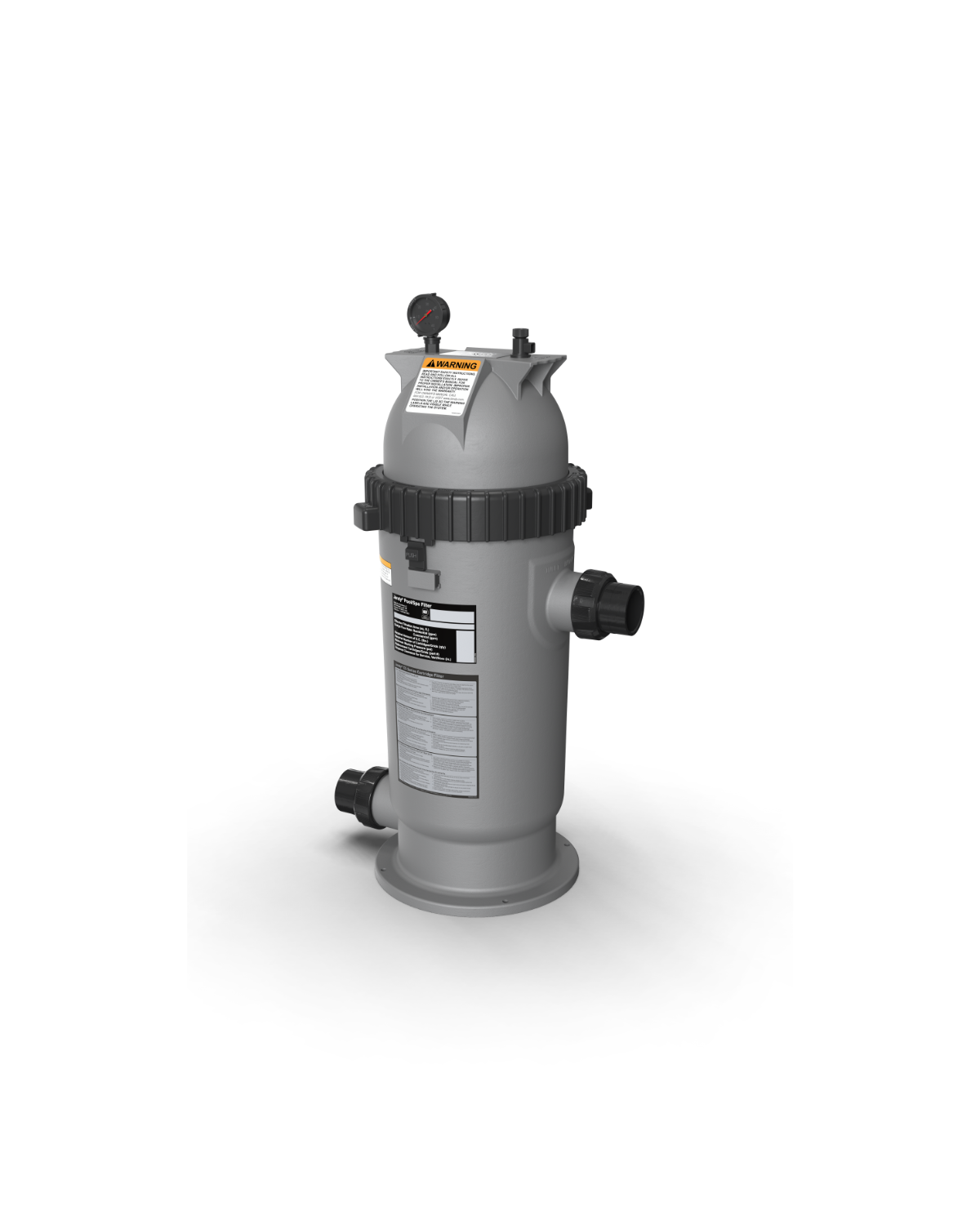

Jandy SqFt Cartridge Filter Single Element Jandy

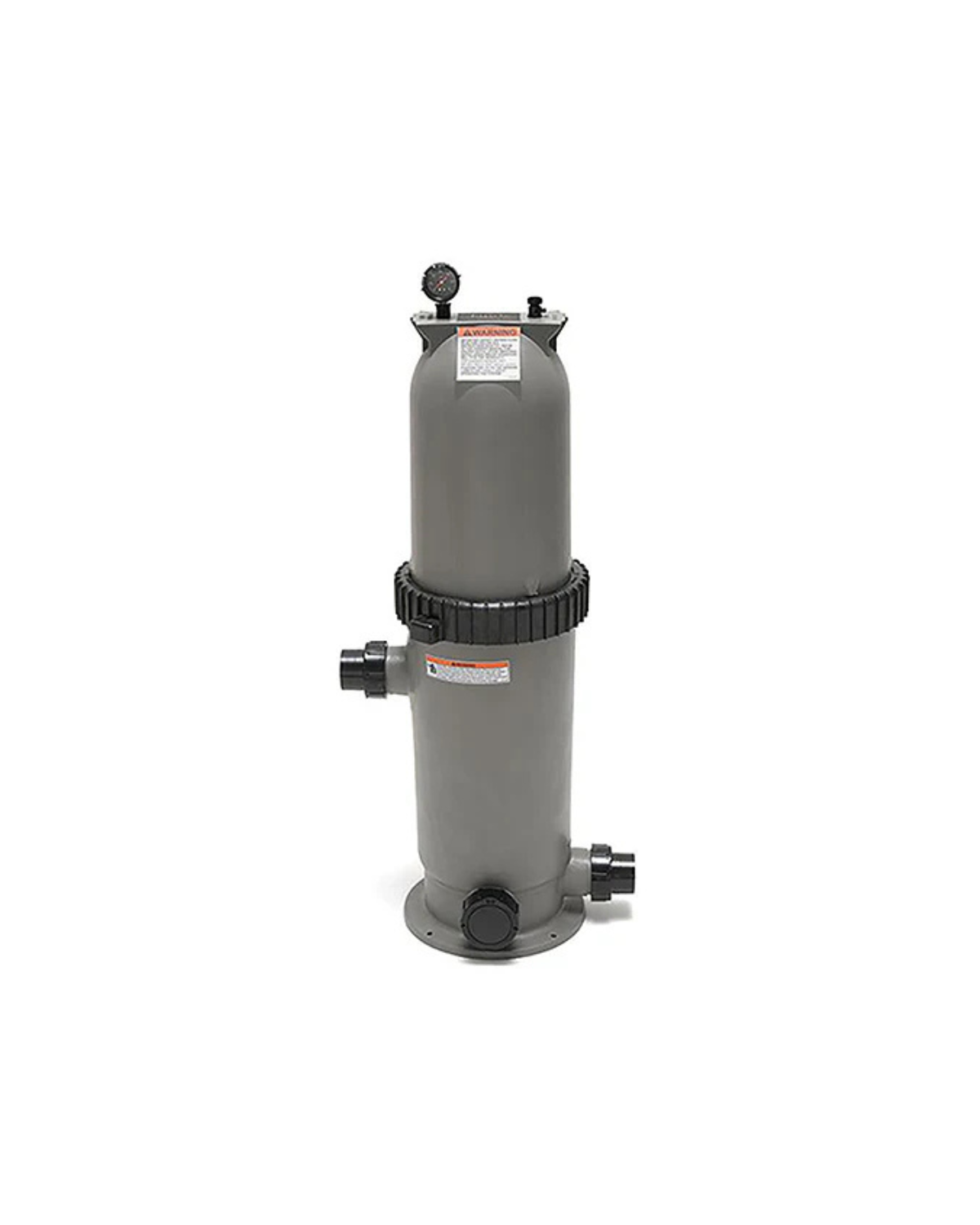

Jandy SqFt Cartridge Filter Single Element Jandy

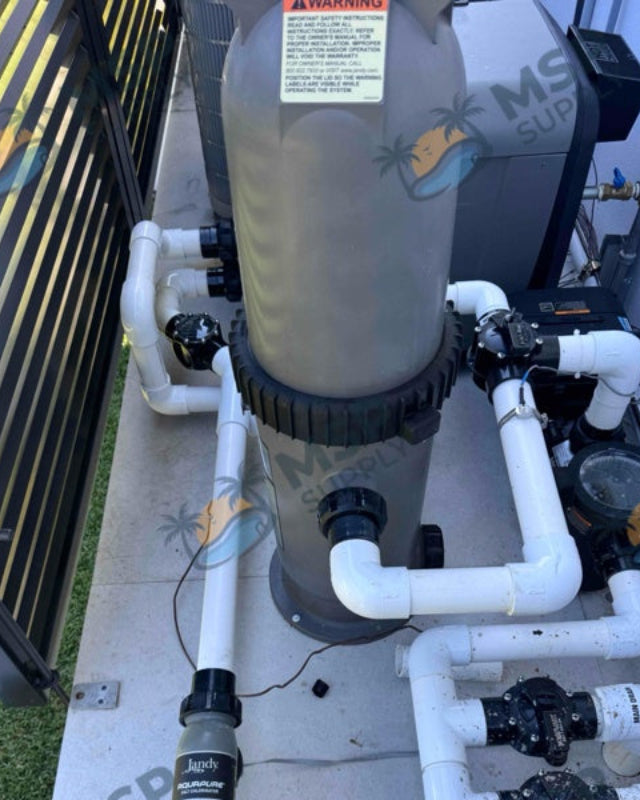

Jandy CS filter

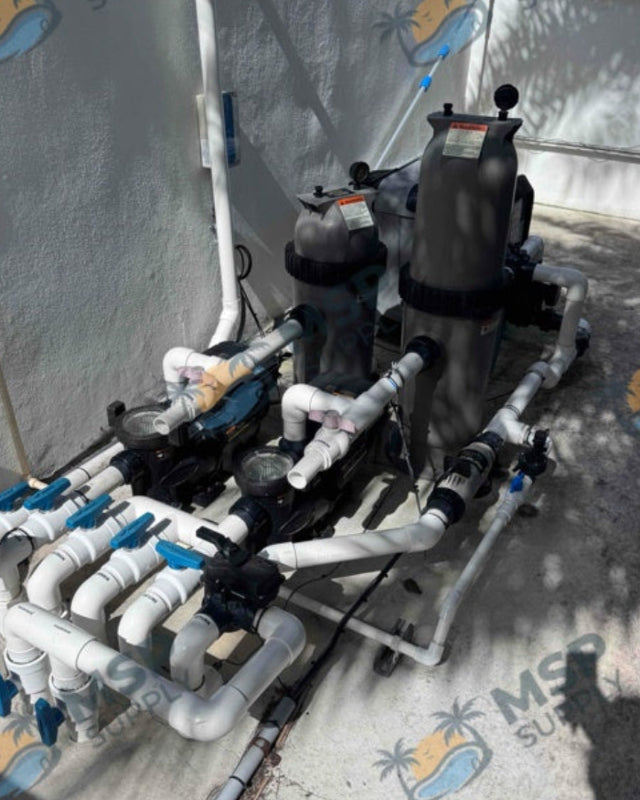

Jandy CS filter in the back Jandy flopro pumps in front Jandy Purelink salt system to the right (PLC1400)

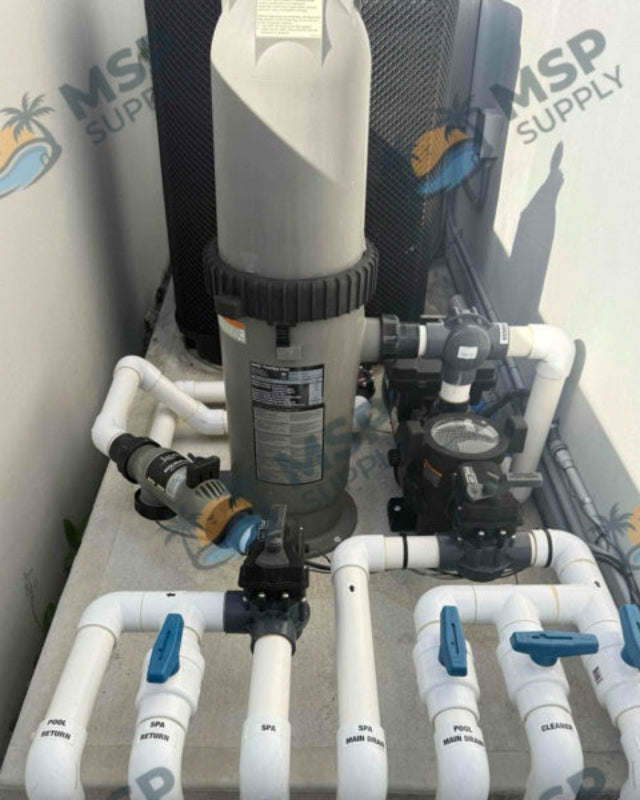

Jandy CS filter in the middle Jandy flopro to the right Jandy purelink to the left

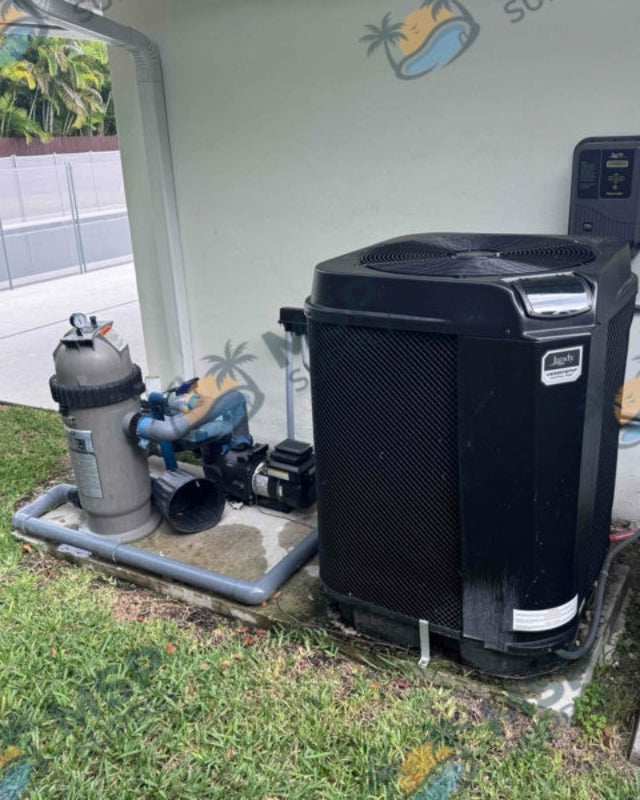

Jandy JRT Heat/cool heat pump to the right Jandy CS Filter on the left
Jandy CS filter in the middle.

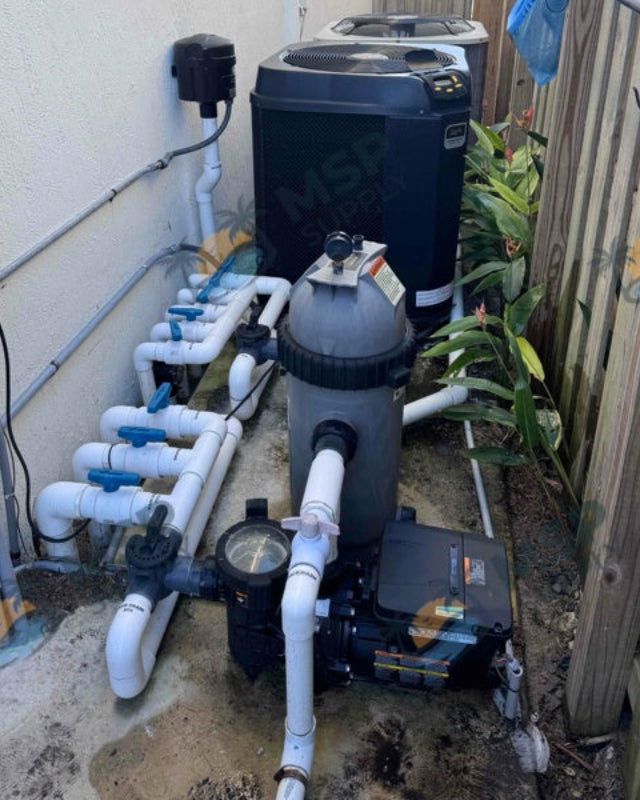

Jandy CS Filter in the middle Jandy JRT heat/cool heat pump in the back Jandy Flopro variable speed pump in front of the filter

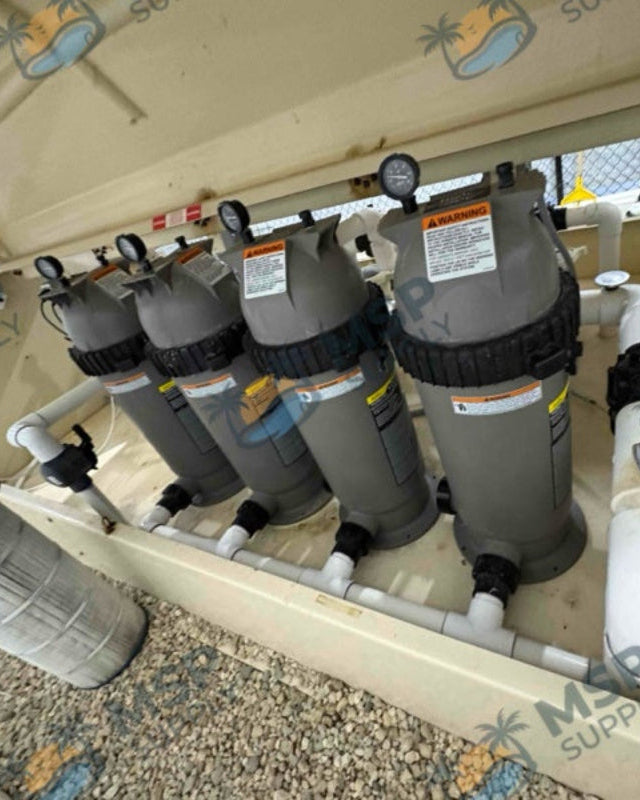

Jandy CS series filters
Jandy CS Filter on the left Jandy JXI series on the right Jandy spa air blower on the back right
Jandy SqFt Cartridge Filter Single Element

The Jandy® CS Series Single Element Cartridge Filter (100–250 Sq. Ft.) is an ultra-compact, high-performance filtration solution designed for pools and spas with limited equipment space. Built with a durable, UV-resistant thermoplastic tank, this filter uses a single large-surface-area cartridge to trap fine debris without the need for backwashing. Its Versa Plumb® ready design ensures maximum hydraulic efficiency, while ergonomic handles and a tool-free locking ring make maintenance fast and simple. Ideal for tight retrofits, the CS series delivers sparkling water clarity with a minimal footprint.

Key Features

  • Compact Footprint: Just over one foot wide, perfect for small or confined equipment pads.
  • Single Element Filtration: High-quality cartridge traps more dirt for superior clarity and longer cycles.
  • Eco-Friendly: Saves thousands of gallons of water annually by eliminating backwashing.
  • Tool-Free Maintenance: Easy-grip handles and a locking ring allow quick cartridge access.
  • Versa Plumb® Integrated: Maximizes flow and efficiency when paired with Jandy equipment.
  • Extra-Large Drain Port: 2-inch drain for rapid cleaning and easy winterization.

Specifications

Jandy� CS100 Single Element Cartridge Filter

Engineered for maximum filtration in the smallest possible footprint. Constructed from high-impact, UV-resistant thermoplastic, the CS Series is ideal for tight equipment pads and retrofits without sacrificing durability.

Filter Area100 Sq. Ft.
Max Flow Rate100 GPM
8-Hour Turnover48,000 Gallons
Max Pressure50 PSI
Product Height32 3/8"
Vertical Clearance38" (for lid removal)
Plumbing Size2" x 2" Unions
Tank MaterialUV-Resistant Thermoplastic

?? Critical Safety Warnings

HIGH PRESSURE HAZARD: This system operates under high pressure. Failure to bleed air from the tank before starting the pump can cause the lid to blow off, resulting in severe injury, death, or property damage.
AIR RELIEF REQUIREMENT: Always open the Manual Air Relief Valve on top of the tank before starting the pump. Leave it open until a steady stream of water (no air) emerges.
SYSTEM LIMITS: Never exceed the maximum operating pressure of 50 PSI. Do not use with water temperatures exceeding 104�F (40�C).
SHUT-OFF PROCEDURE: Always turn off the pump and any automatic suction cleaners before adjusting valves or attempting to open the filter locking ring.
?? Professional Tips for Success
  • The Rule of 10: Clean your cartridge when the pressure gauge reads 8-10 PSI higher than your initial "clean" starting pressure.
  • Lube the O-Ring: Apply a thin layer of 100% silicone-based lubricant to the tank O-ring every time you open the filter. Never use Vaseline.
  • Degrease Annually: Rinsing removes dirt, but soaking in a degreaser is required to remove body oils and lotions from the Reemay� fibers.
  • Hand-Tighten Only: Never use a hammer or wrench on the locking ring. If it won't close by hand, check the O-ring alignment.
PROFESSIONAL INSTALLATION REQUIRED: This product must be installed by a licensed professional. Improper installation can result in serious safety hazards and will void the manufacturer's warranty.
INDOOR INSTALLATION: If installed indoors, the area must have a high-capacity floor drain. The manufacturer is not responsible for flood damage caused by tank or pipe failure.
DATA ACCURACY: All specifications are sourced from [Jandy CS Series Technical Data](https://www.jandy.com). Dimensions and weights are approximate and subject to change without notice.
BACKWASHING PROHIBITED: This is a cartridge-only system. Do not attempt to backwash; doing so will damage the internal core of the element.
CS100

Jandy SqFt Cartridge Filter Single Element

$588.00
Shipping calculated at checkout.
5.0

Jandy

Call or text for price: +1 (305) 359-7665
Size: 100 SqFt

Request a Quote

🔒 Your information is secure
✉️ No spam or marketing emails
⚡ Fast response from a real pool equipment specialist
Fast shipping
Ships in 2 to 3 business days
Warranty

Warranty is voided by the manufacturer if purchased online
What installation covers

Filter Installation Option Details: Covers replacement of an existing pool filter only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties. (Please note that installation costs are not included in the equipment price. Installation services are sold separately.)
