Hayward
ECX1322A

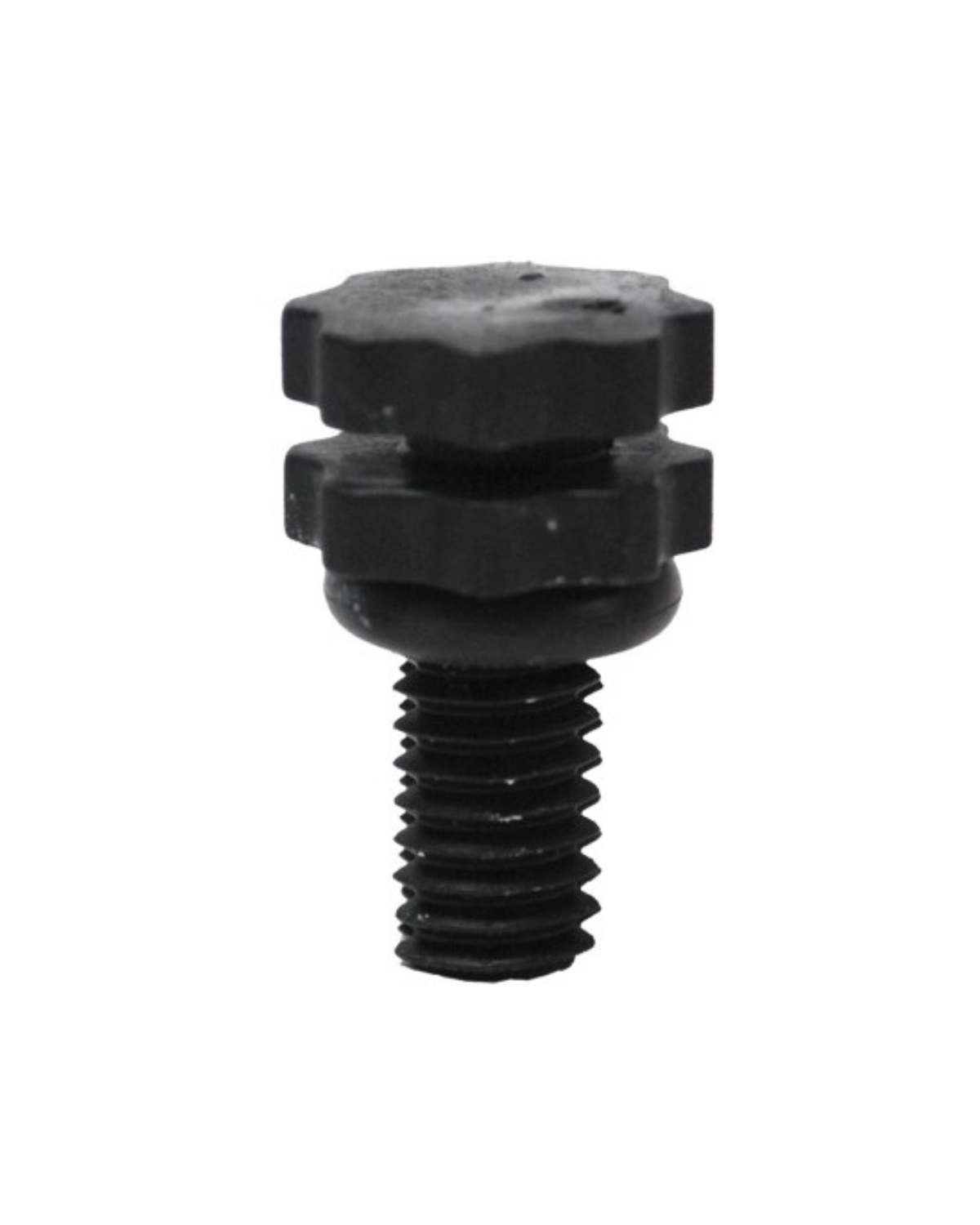

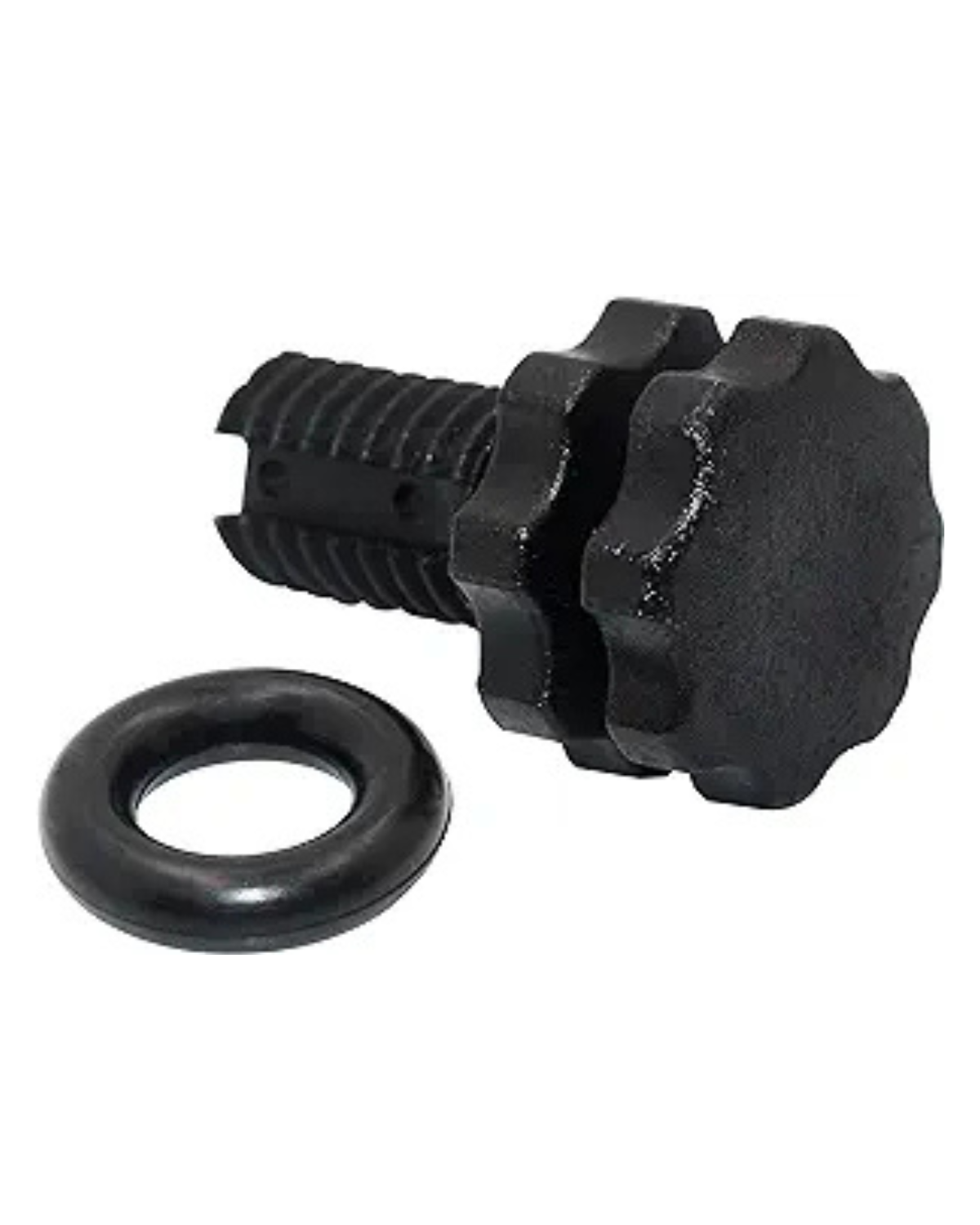

Directional Air Vent Valve with O-Ring ECX1322A
$18.00
/
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description
The Hayward ECX1322A Directional Air Vent Valve is a critical safety and maintenance component designed to bleed trapped air from pool filtration systems, ensuring optimal pressure and preventing potential equipment damage
Key Product Features
- Directional Air Relief: Safely vents air from the filter tank, allowing the system to reach peak filtration efficiency.
- Includes Sealing O-Ring: Comes with a specialized O-ring to ensure a secure, leak-proof seal during high-pressure operation.
- Durable Construction: Built from heavy-duty, corrosion-resistant materials to withstand harsh pool chemicals and UV exposure.
- User-Friendly Design: Features a threaded body for straightforward, tool-free installation and removal.
Specifications
Hayward ECX1322A Directional Air Vent Valve
A critical safety and maintenance component designed to bleed trapped air from pool filtration systems. This directional air relief valve ensures optimal system pressure and prevents equipment damage by safely venting air from the filter tank.
Technical Specifications
ManufacturerHayward
Part NumberECX1322A

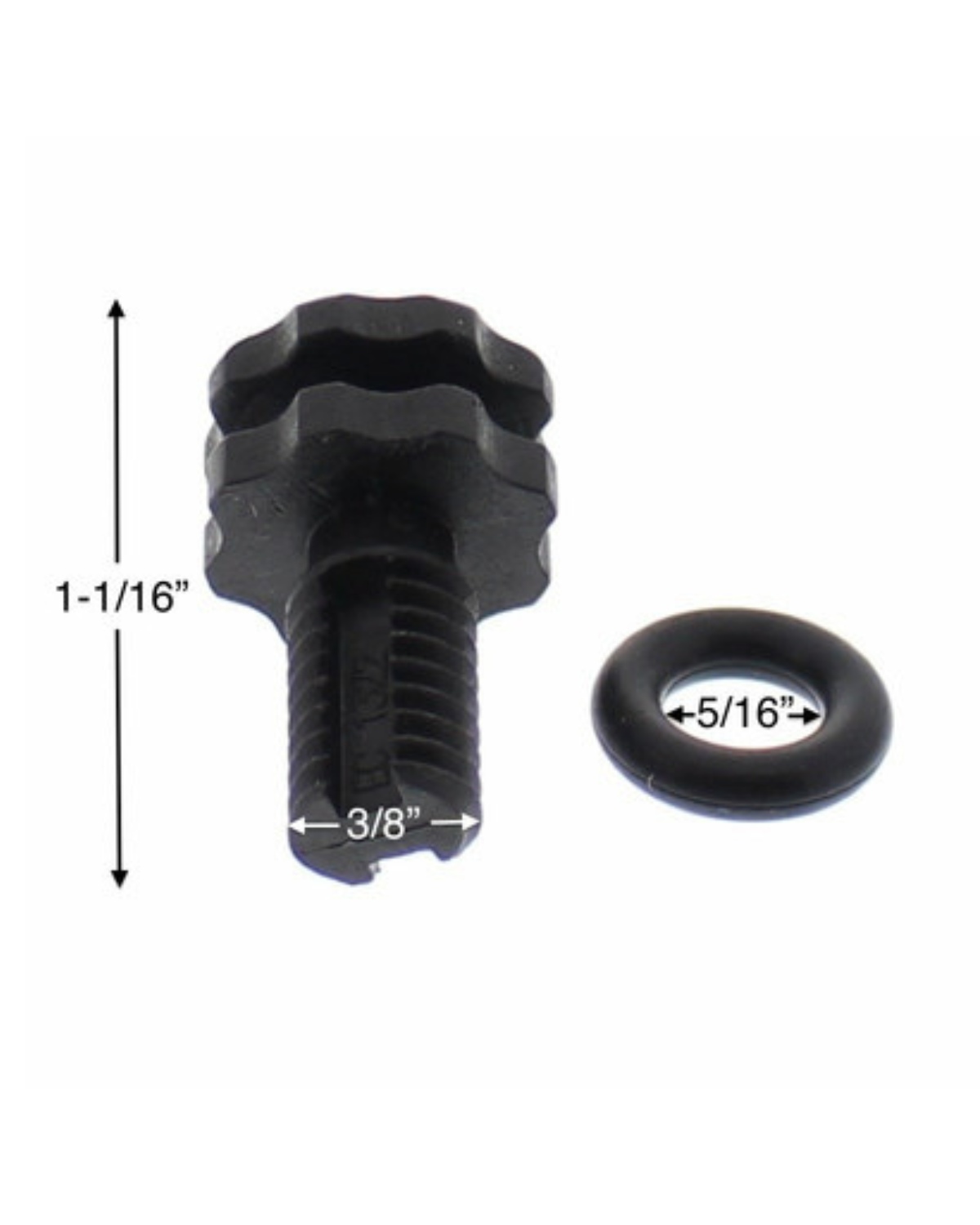

Thread Width3/8"
Thread Length5/8"
MaterialHigh-Grade Plastic
Product Identification
UPC Code0610377024808
Inlet Connection1.5" FNPT (Approx.)
Valve Size~0.67" x 0.35"
Included ComponentSealing O-Ring
Package Weight~1.0 lb
Universal Filter Compatibility
Star-Clear Series: C225, C250, C500, C750, C800, C1100, C1500
Star-Clear Plus: C900, C1200, C1500, C1750, C2002
Perflex D.E. Filters: EC30, EC40, EC50, EC65, EC75 (All models)
Star-Clear Plus: C900, C1200, C1500, C1750, C2002
Perflex D.E. Filters: EC30, EC40, EC50, EC65, EC75 (All models)
ReGenX Series: RG450, RG700
Easy-Clear Series: C400, C550
ASL Filter Series: Universal replacement for all models
Easy-Clear Series: C400, C550
ASL Filter Series: Universal replacement for all models
⚠️ Critical Safety & Installation Warnings
HAZARDOUS PRESSURE: Pool filtration systems operate under high pressure. Never operate your system at more than 30 PSI. Components installed incorrectly can fail violently, leading to property damage or serious injury.
WATER DISCHARGE: Position the valve's discharge path away from electrical outlets, pump motors, or control panels. High-pressure water spray can cause electrical shorts or motor failure.
SYSTEM BLEEDING: Always open the air relief valve slowly when starting the pump. Keep it open until a steady stream of water emerges to ensure no air is trapped in the tank.
💡 Professional Installation Tips
- Lubrication: Apply a small amount of pool-grade silicone lubricant to the O-ring before installation to ensure a leak-proof seal and prevent rubber dry-rot.
- Hand-Tight Only: Do not use a wrench or pliers. Over-tightening can crack the plastic valve body or the expensive filter manifold.
- Inspection: Check the O-ring for cracks or flattening every time you clean the filter. A failing O-ring is the #1 cause of air leaks into the system.
