Pentair

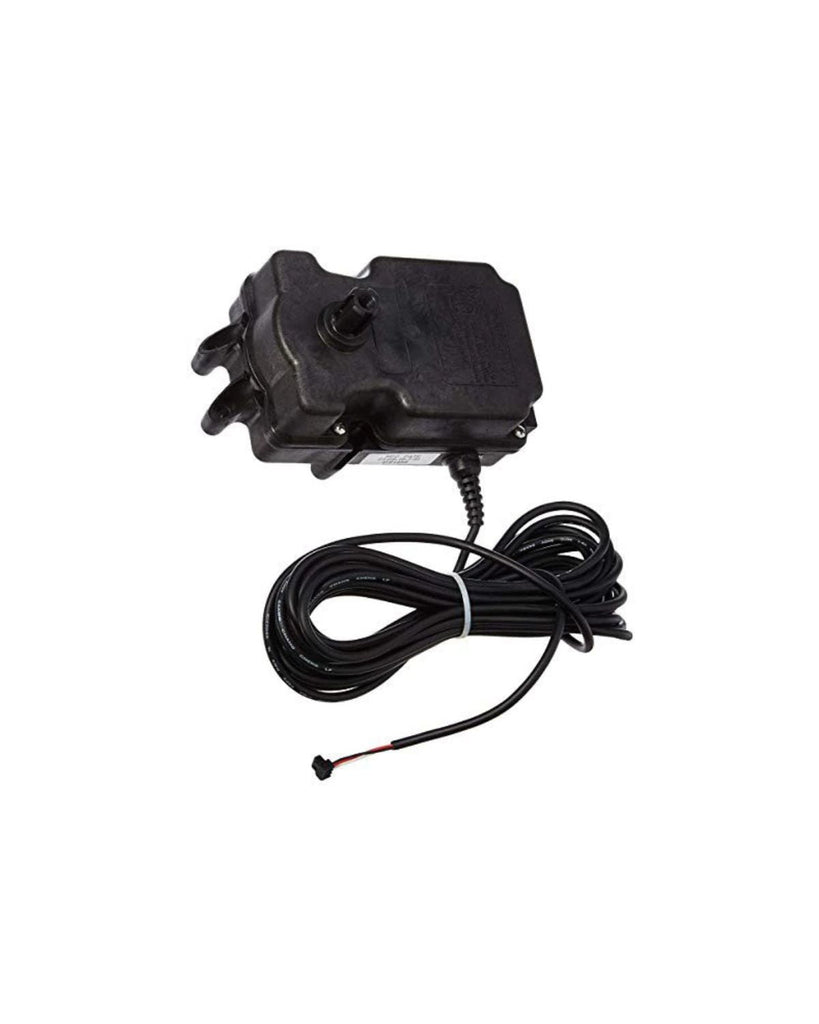

CVA24 Valve Actuator for 3 Port Valve
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description
Automate your pool and spa water flow with the reliable Pentair CVA24 Valve Actuator. This essential component seamlessly integrates with your existing pool automation system (including Pentair IntelliTouch, EasyTouch, and Compool systems) to precisely manage water direction between different features, such as your main pool, spa, waterfall, or cleaner line.
The CVA24 operates on safe, low-voltage 24 VAC power and provides a full 180-degree rotation, which is adjustable for custom flow settings. Its durable, weather-resistant housing is built for outdoor longevity. The actuator features a convenient manual switch for service checks and a standard 20-foot cord for flexible installation options. It fits most standard 2-port and 3-port pool valves, including Pentair's own 2-inch, 2.5-inch, and 3-inch models.
Key Features
- Universal Automation Compatibility: Designed to work flawlessly with Pentair automation systems (EasyTouch, IntelliTouch) and legacy Compool control panels.
- Precise Water Management: Provides reliable 180° flow diversion for automated control of pool/spa combinations or water features.
- Durable & Weatherproof: Features a robust, outdoor-rated case with water-tight seals to withstand harsh weather and pool chemicals.
- Manual Override: Includes a simple two-position manual switch and handle for easy servicing or operation during power outages.
- Versatile Fitment: Compatible with most industry-standard 2-way and 3-way valves, including Jandy, Hayward, Zodiac, and Pentair models.
- Energy Efficient: The 24-volt motor is designed for reliable, low-power operation.
Warranty
Specifications
Product Details
Technical Data & Electrical
⚠️ Warnings and Disclaimers
- Electrical Hazard: Installation requires working with electricity. All power to the pool equipment must be turned OFF at the circuit breaker before installation or service.
- Qualified Professional: This product must be installed by a licensed and qualified professional in accordance with local and National Electrical Codes (NEC) to prevent injury or damage.
- Proper Voltage: Ensure your automation system provides 24 VAC power. Using this 24 VAC actuator on a 12 VAC system will cause failure.
- Manual Override: A manual override handle is present but should only be used after cutting power to the unit.
💡 Professional Tips
- Automation Ready: This actuator is designed to integrate seamlessly with Hayward OmniLogic, AquaRite Pro, and other control systems that use 24 VAC automation signaling.
- Cam Adjustment: The internal cams can be adjusted easily to fine-tune the start/stop positions of the valve rotation, useful for complex plumbing configurations or partial flow requirements.
- Universal Fit: This actuator is highly versatile and fits not only Hayward valves but also most Jandy Pro Series and Compool 2-way and 3-way valves.
