Jandy

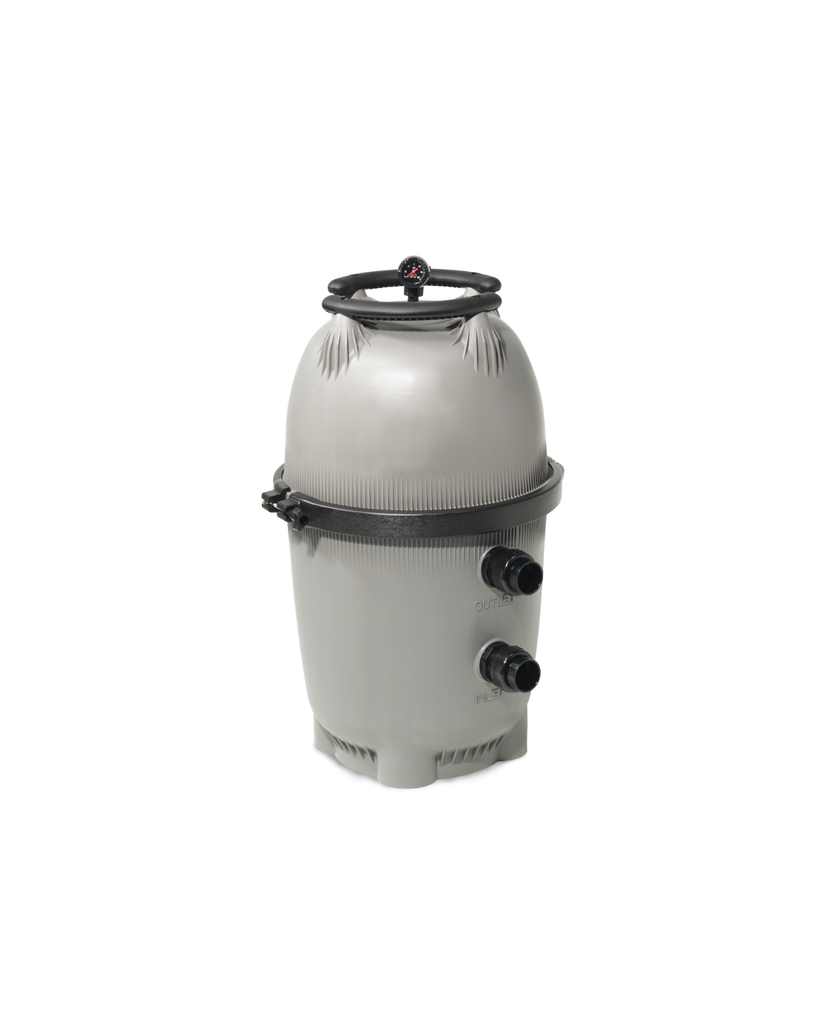

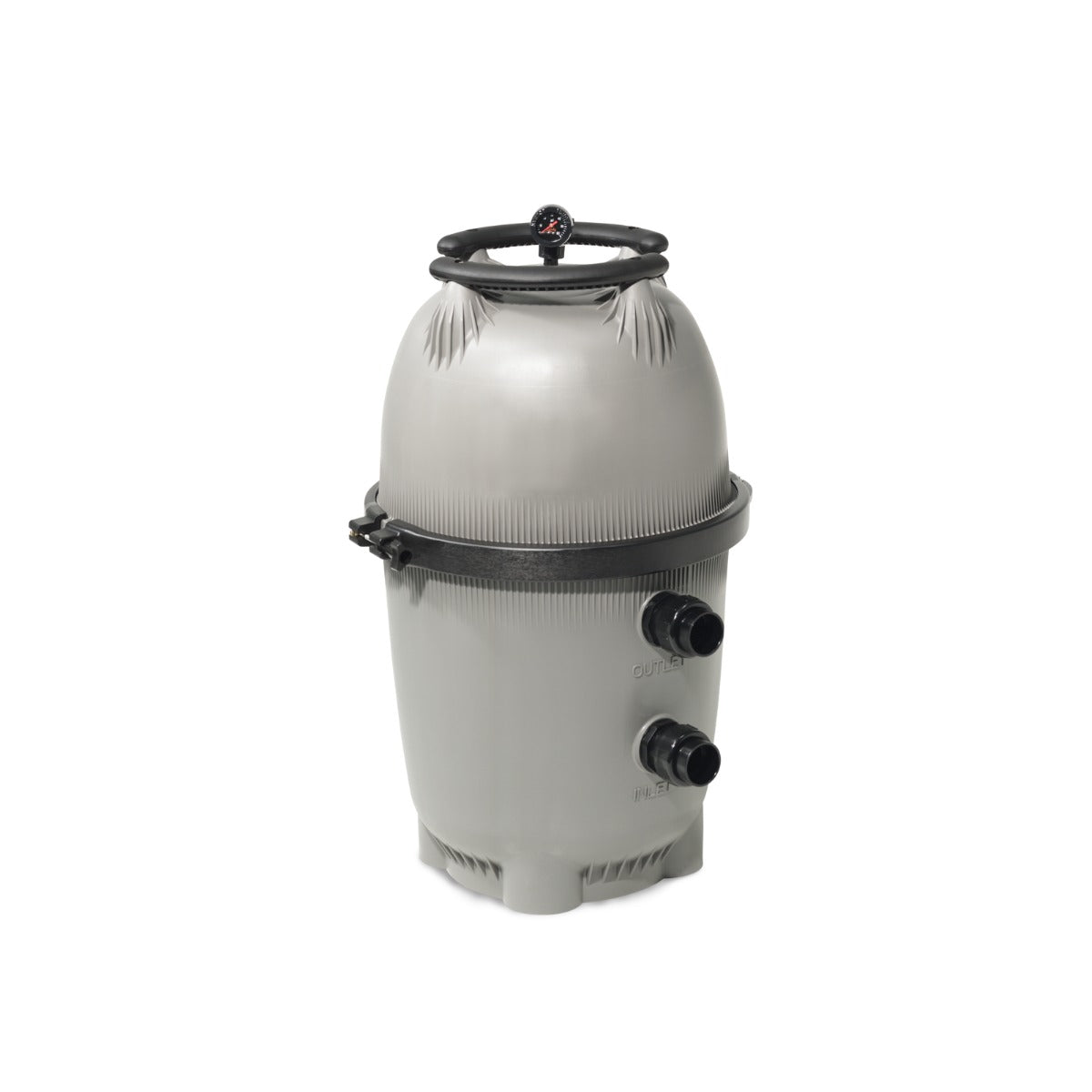

4 Cartridge CL Series Filter System
Request a Quote
Product Description
Achieve professional-grade water clarity with the CL Series 4-Cartridge Filter System. Engineered for maximum debris-holding capacity and ultra-high flow rates, these filters utilize four heavy-duty cartridges to provide superior filtration without the need for backwashing. The CL460 (460 sq. ft.) and CL580 (580 sq. ft.) models feature a chemical-resistant, glass-reinforced tank and a heavy-duty manual air relief valve for safe operation. With their compact footprint and 2.5" internal plumbing, these systems reduce energy costs by minimizing pump backpressure, making them the ultimate choice for large-scale aquatic environments
What installation covers
Filter Installation Option Details: Covers replacement of an existing pool filter only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties. (Please note that installation costs are not included in the equipment price. Installation services are sold separately.)
Specifications
Achieve professional-grade water clarity with the CL Series. Engineered for maximum debris-holding capacity and ultra-high flow rates, these systems utilize four heavy-duty cartridges to provide superior filtration without the need for backwashing, minimizing pump backpressure and energy costs.
| Attribute | CL460 Model | CL580 Model |
|---|---|---|
| Filtration Area | 460 sq. ft. | 580 sq. ft. |
| Number of Cartridges | 4 (Large Format) | 4 (Extra-Large) |
| Max Flow Rate | 150 GPM | 150 GPM |
| Max Working Pressure | 50 PSI | 50 PSI |
| Plumbing Size | 2" or 2.5" | 2" or 2.5" |
| Vertical Clearance | 38" | 44" |
| Footprint Width | 21" | 21" |
Safety Warnings & Critical Procedures
- The "Rotation" Strategy: Keep a spare set of 4 cartridges. This allows for instant swapping and overnight soaking of the dirty set without system downtime.
- Uniform Flow: Always ensure the internal air bleed sock is attached to the top manifold to prevent air pockets that reduce effective filtration area.
- Lubrication: Lightly coat the tank body O-ring with silicone lubricant (never petroleum) during every cleaning to prevent the lid from sticking.
- Tank Construction: Built with a chemical-resistant, glass-reinforced thermoplastic tank designed for large-scale aquatic environments.
