Aquamax
AM-C-8409

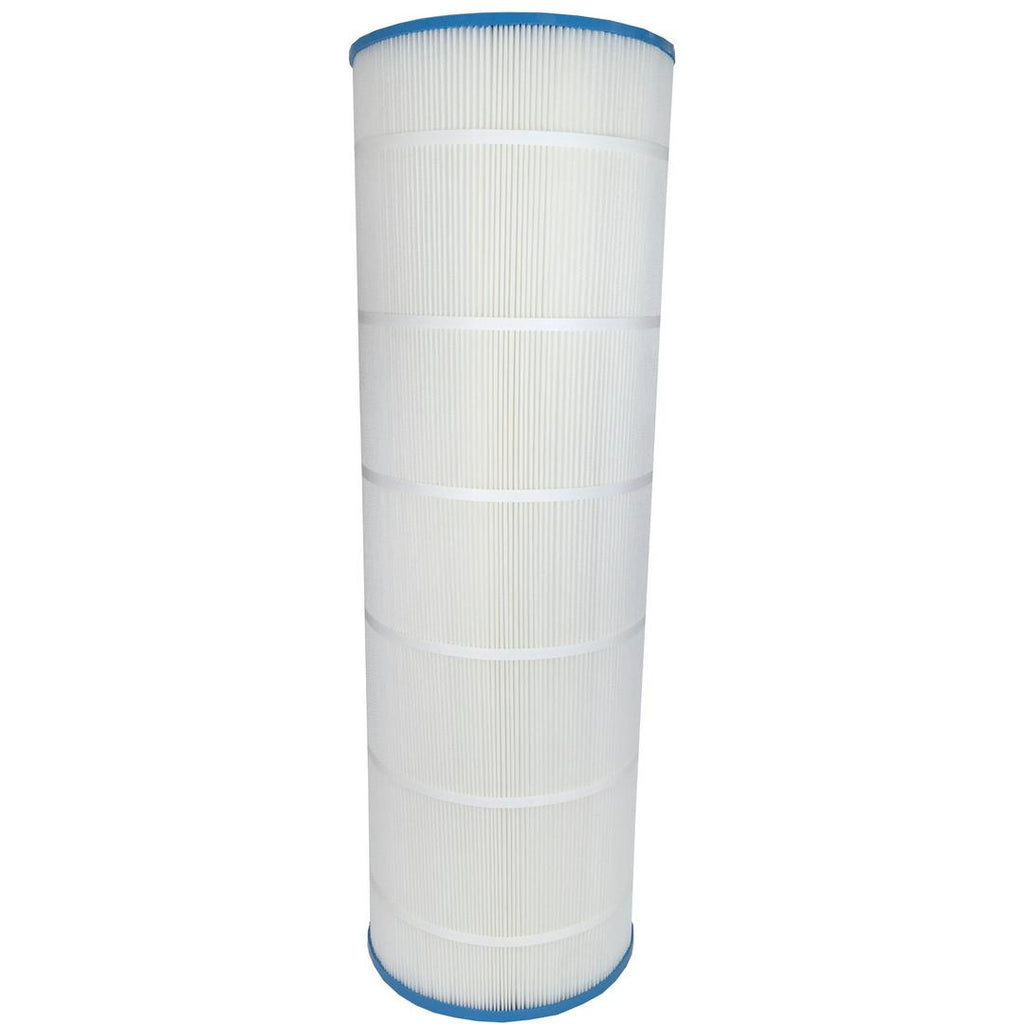

AquaMax 90 SQFT cartridge for Hayward Sta-Clear AM-C-8409
$50.00
/
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description
The AquaMax AM-C-8409 is a high-performance replacement cartridge designed for 90-square-foot pool filter systems. It is an aftermarket alternative to the popular Unicel C-8409 and Hayward CX900RE filters
Key Features
- High Filtration Capacity: Provides 90 square feet of filtration area using 174 tight pleat folds.
- Precision Debris Capture: The 4-ounce polyester Reemay® media is designed to trap contaminants down to 20 microns.
- Durable Construction: Features high-impact, chemical-resistant end caps and a sturdy inner core to prevent collapse under high-pressure cycles.
- Optimized Flow: The uniform pleat design maximizes water flow while minimizing pressure loss, leading to longer run times between cleanings.
Specifications
AquaMax AM-C-8409 Pool Filter Cartridge (90 Sq. Ft.)
A high-performance replacement cartridge designed for 90-square-foot pool filter systems. This aftermarket alternative to the Unicel C-8409 and Hayward CX900RE features premium Reemay® media and reinforced end caps to provide superior clarity and long-lasting durability.
Technical Specification Sheet
Part NumberAM-C-8409
UPC850069949082
Filtration Area90 Sq. Ft.
Media Weight4 oz Polyester Reemay®
Pleat Count174 Folds
Micron RatingTraps down to 20 Microns
Dimensions & Fitment
Outer Diameter (OD)8-15/16"
Length17-3/8"
Top Hole ID4" (Open w/ Gasket)
Bottom Hole ID4" (Open w/ Gasket)
Core DesignHigh-Flow Inner Core
System Compatibility & Cross-References
| Manufacturer / Brand | Filter Model | OEM Part Number |
|---|---|---|
| Hayward | Star-Clear Plus C900 | CX900RE |
| Sta-Rite | Posi-Clear PXC95 | 25230-0095S |
| Waterway | Clearwater II / Pro Clean 100 | 817-0100N |
| Unicel / Pleatco | C-8409 / PA90 | FC-1292 (Filbur) |
⚠️ Critical Filter Maintenance Warnings
NO PRESSURE WASHERS: Never use a high-pressure power washer to clean pleats. This will tear the polyester fibers and allow dirt to bypass the filter and return to your pool.
CHEMICAL HAZARDS: Do not use flocculants or clarifiers unless labeled "cartridge-safe." These chemicals can coat pleats in a sticky goo that is nearly impossible to wash off.
ALGAE WARNING: If your pool has a live algae bloom, the cartridge will clog extremely quickly. Kill algae with shock first before relying on the filter for cleanup.
💡 Professional Maintenance Tips
- The "Rotate" Rule: Buy two cartridges. Keep one clean and dry while the other is in use. Rotating them allows fibers to "rebound," extending lifespan by up to 50%.
- Pressure Gauge: Clean the cartridge when the tank pressure rises 8–10 PSI above your starting "clean" pressure.
- Degrease First: Always soak in a filter cleaner/degreaser to remove body oils before using an acid bath. Acid can permanently bake oils into the fabric.
- Check the Core: If the inner plastic core is warped or "fuzzy" fibers appear, the media is breaking down. Replace immediately to prevent pump strain.
