Generic
Air Gauge Release Valve Assembly, 0-60 PSI Air Release Compatible with R0357200, and Zodiac Jandy Pool and Spa Filters DEV/DEL Series, CL/CV Series, and JS Series Filters
$19.89
/
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description
The Poolzilla Air Gauge Release Valve Assembly is a high-performance, all-in-one diagnostic and safety tool designed to manage internal tank pressure. This assembly allows for precise monitoring of your filter's health via a 0-60 PSI gauge while providing a manual air relief path to safely bleed trapped air during system startup.
Key Product Features

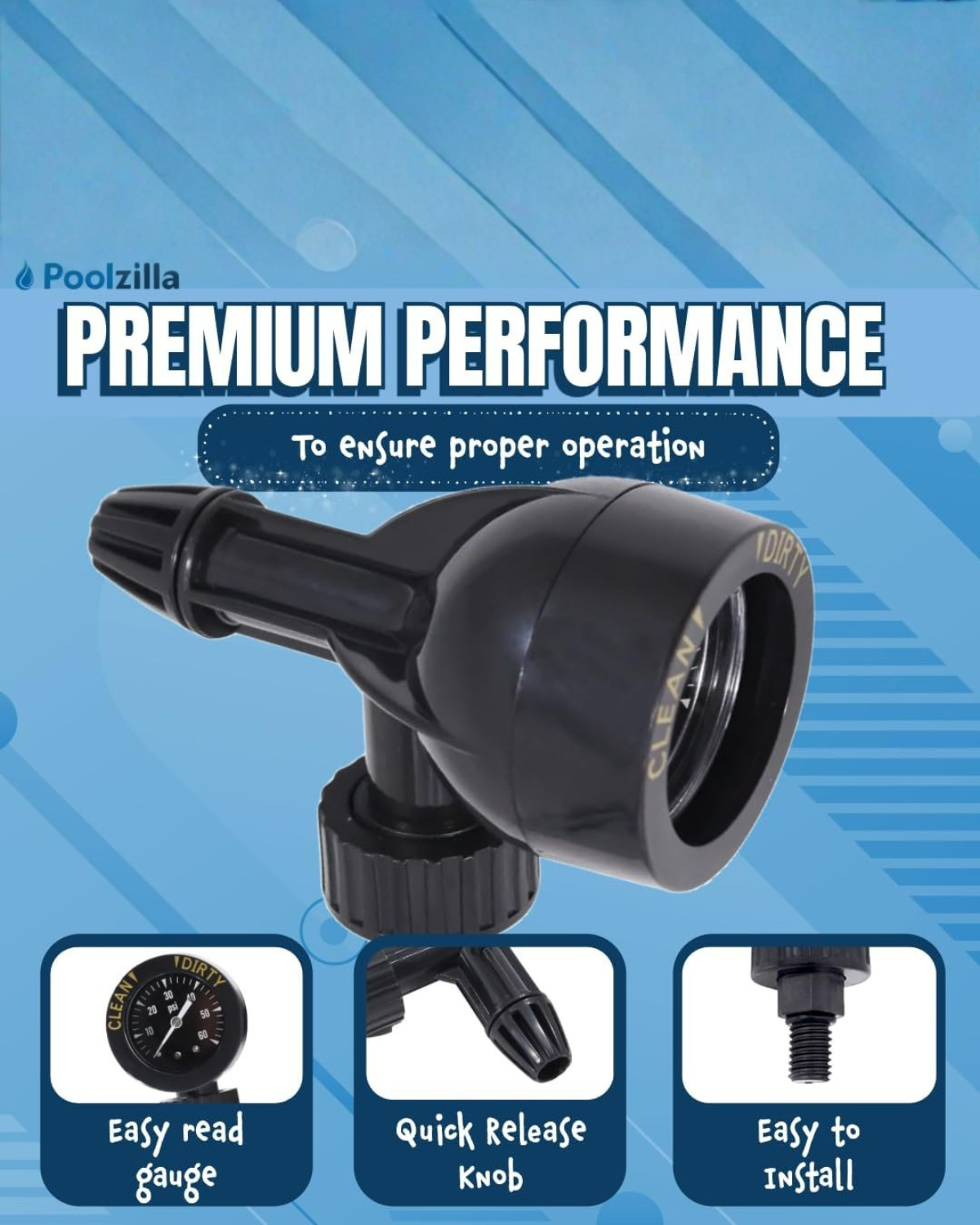

- Dual-Function Design: Integrates a high-accuracy pressure gauge with a manual air bleed valve for comprehensive filter management.

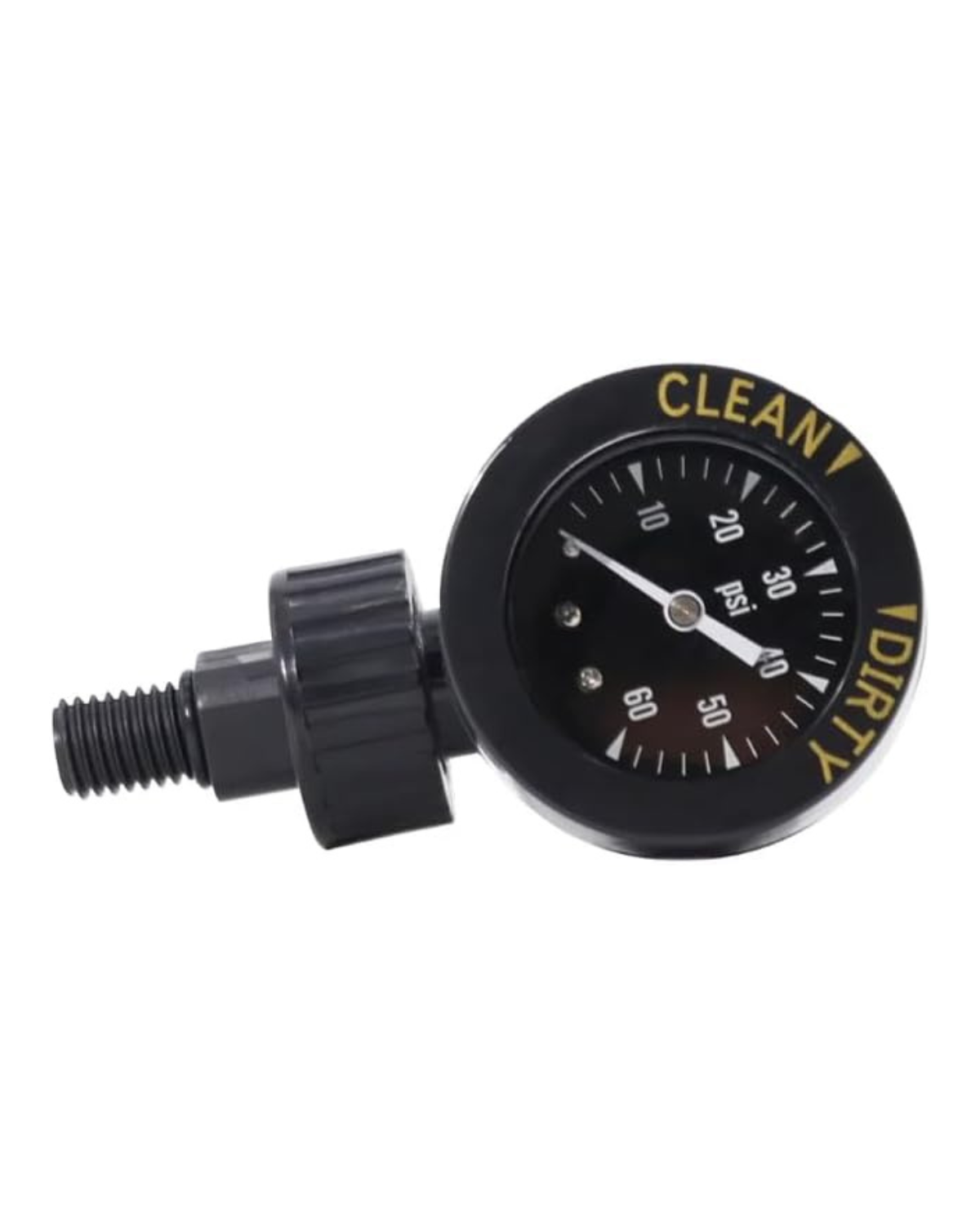

- Visual Maintenance Indicator: The 0–60 PSI scale features a clear layout to help identify the "Clean" vs. "Dirty" operating zones for timely backwashing.
- Corrosion-Resistant Housing: Specifically engineered to withstand outdoor exposure, UV rays, and corrosive pool chemicals.
- Hassle-Free Installation: A direct-fit replacement that hand-tightens into the existing manifold port, requiring no specialized plumbing tools.

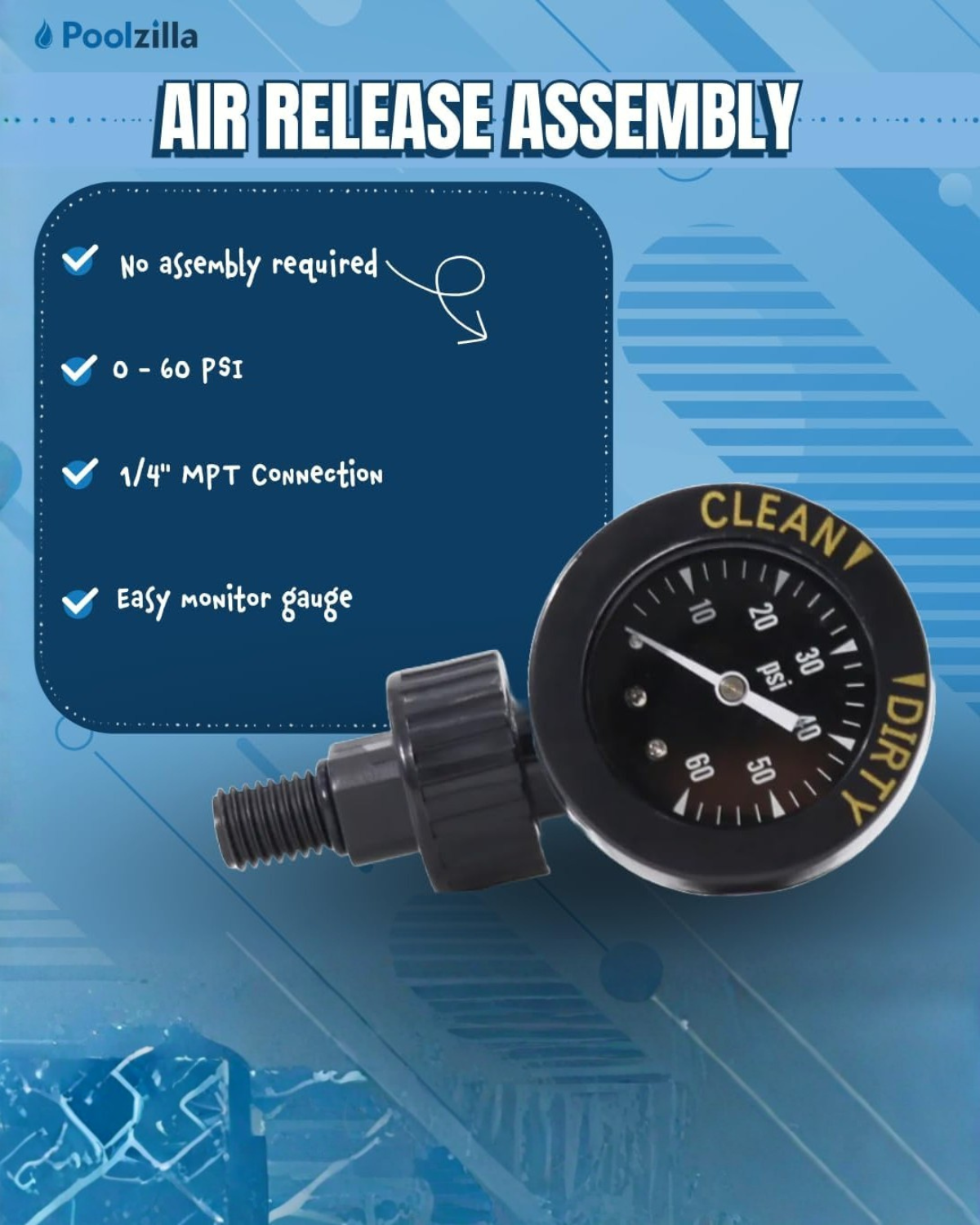

Specifications
Poolzilla Air Gauge Release Valve Assembly
A high-performance diagnostic and safety tool designed to manage internal tank pressure. This dual-function assembly allows for precise monitoring of filter health via a 0-60 PSI gauge while providing a manual air relief path to safely bleed trapped air during system startup.
Technical Specification Sheet
BrandPoolzilla
Part NumberGREAT065
OEM Cross-ReferenceJandy R0357200
Pressure Range0 - 60 PSI
Connection Size1/4" MPT (Male)
Dimensions & Logistics
Overall Dimensions6.5" x 4.75" x 4.5"
Item Weight8.4 ounces
UNSPSC Code40141600
ASINB0DPXPDFGL
InstallationHand-Tighten

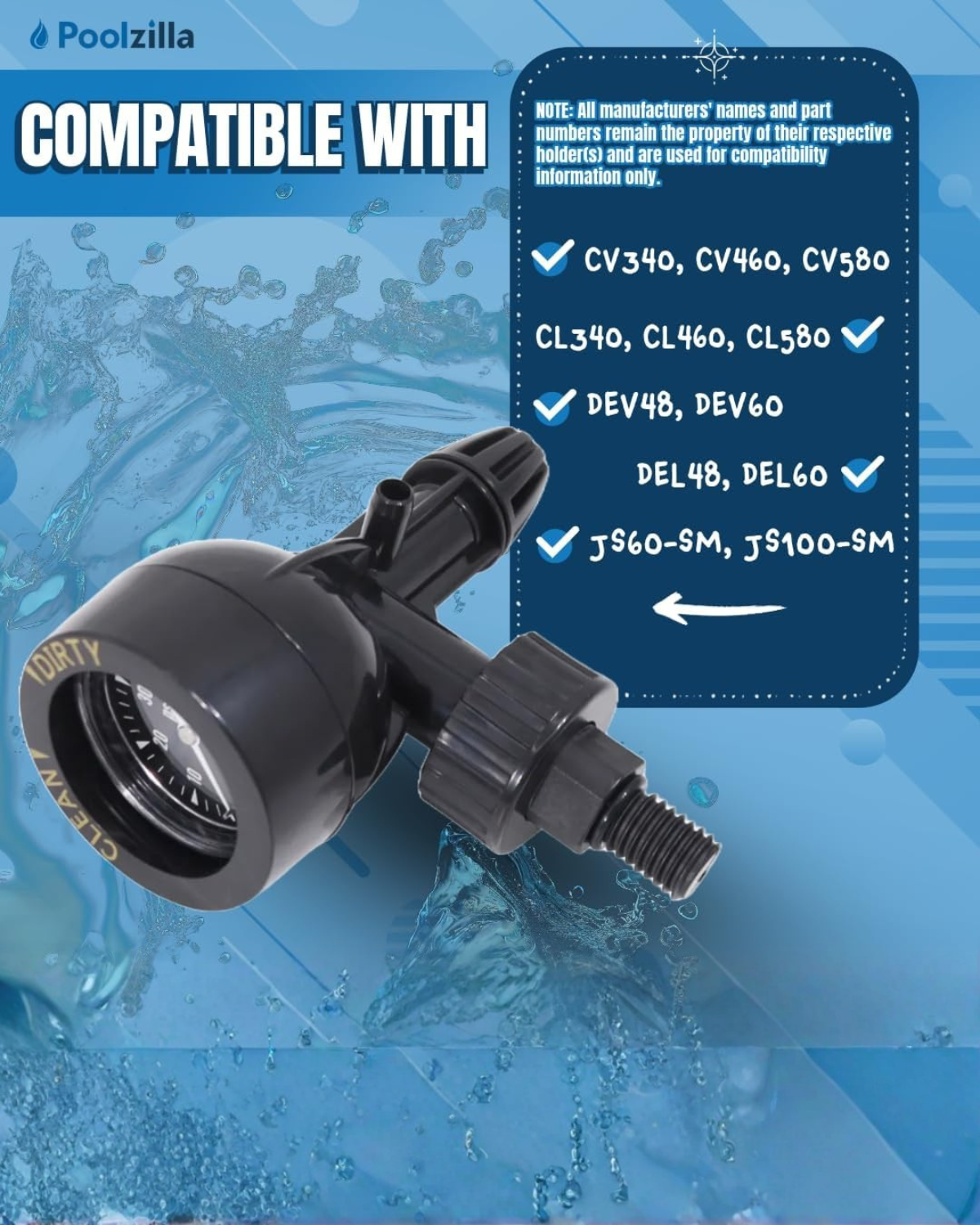

Complete Compatibility List (Zodiac Jandy)
CV & CL Series: CV340, CV460, CV580, CL340, CL460, CL580
DEL & DEV Series: DEV48, DEV60, DEL48, DEL60
DEL & DEV Series: DEV48, DEV60, DEL48, DEL60
JS Series: JS60-SM, JS100-SM
General: Any manifold requiring 1/4" MPT gauge fittings.
General: Any manifold requiring 1/4" MPT gauge fittings.
⚠️ Critical Safety & Installation Warnings
PRESSURE EXPLOSION HAZARD: Air trapped in a filter can be dangerous. Never stand directly over the filter tank when starting the pump or opening the release valve. Improper venting can cause catastrophic tank failure.

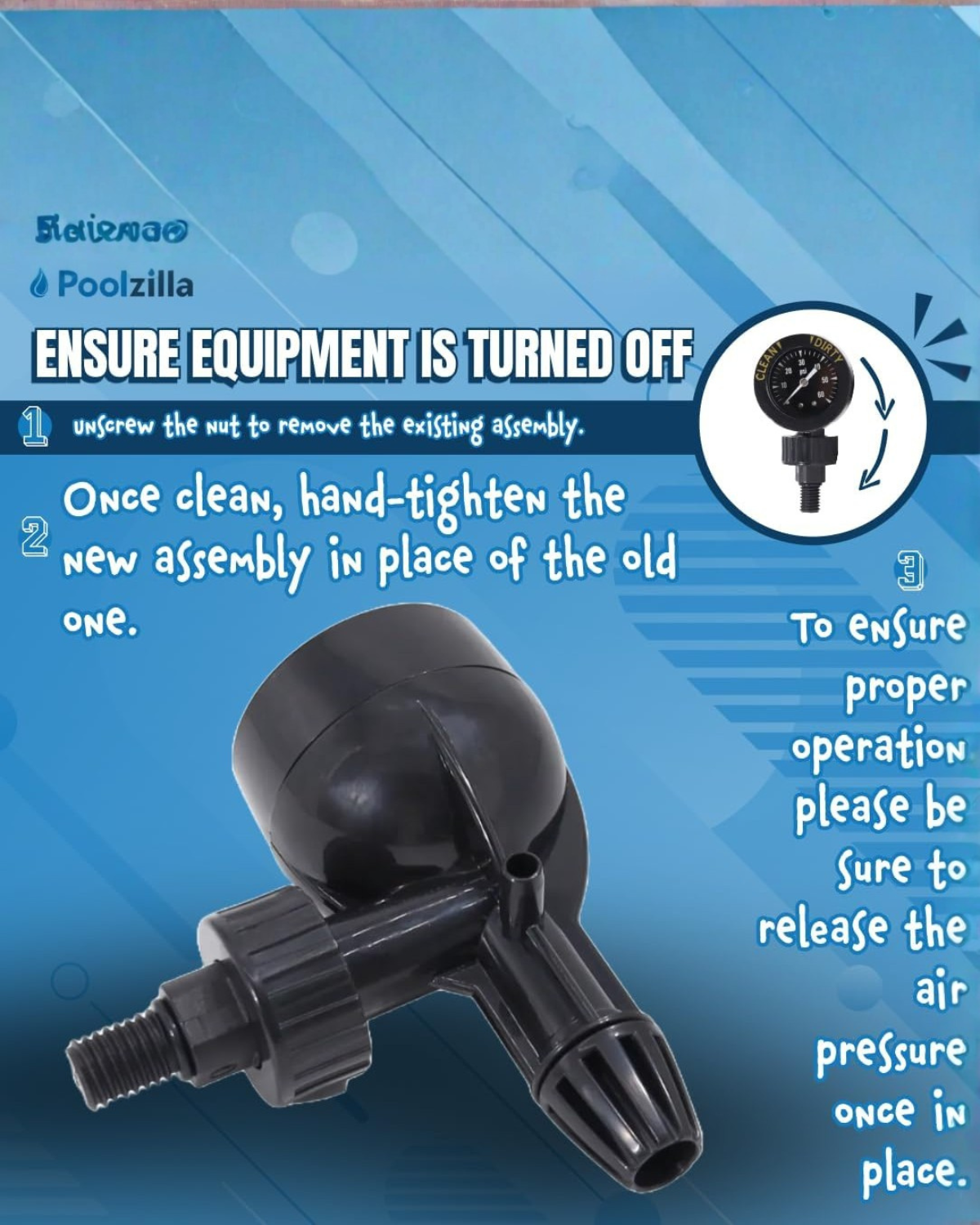

HAND TIGHTEN ONLY: Excessive force with a wrench or pliers can crack the plastic manifold or strip the brass threads of the gauge. Hand-tighten until snug to avoid permanent equipment damage.
CALIBRATION CHECK: If the gauge does not return to "0" when the pump is powered off, the internal mechanism is clogged or broken. Replace immediately for accurate pressure monitoring.
💡 Professional Tips for Success
- The 10 PSI Rule: Mark your gauge when the filter is clean. Once pressure rises 8-10 PSI above that point, it is time to backwash or clean your cartridges.
- PTFE Tape: Apply 2–3 wraps of Teflon tape to the 1/4" threads to ensure a perfect, airtight seal without over-torquing the fitting.
- Daily Bleeding: Open the release valve every time the pump starts until a steady stream of water emerges. This prevents "water hammer" and air pockets.
