521218 for Intellitouch/Easytouch Load Center SCQ Surge Board，Fits For Use With EasyTouch PL4/PSL4 Control Systems, IntelliTouch i5+3 3 Personality Kit Automation Control Systems Replace 521218
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description

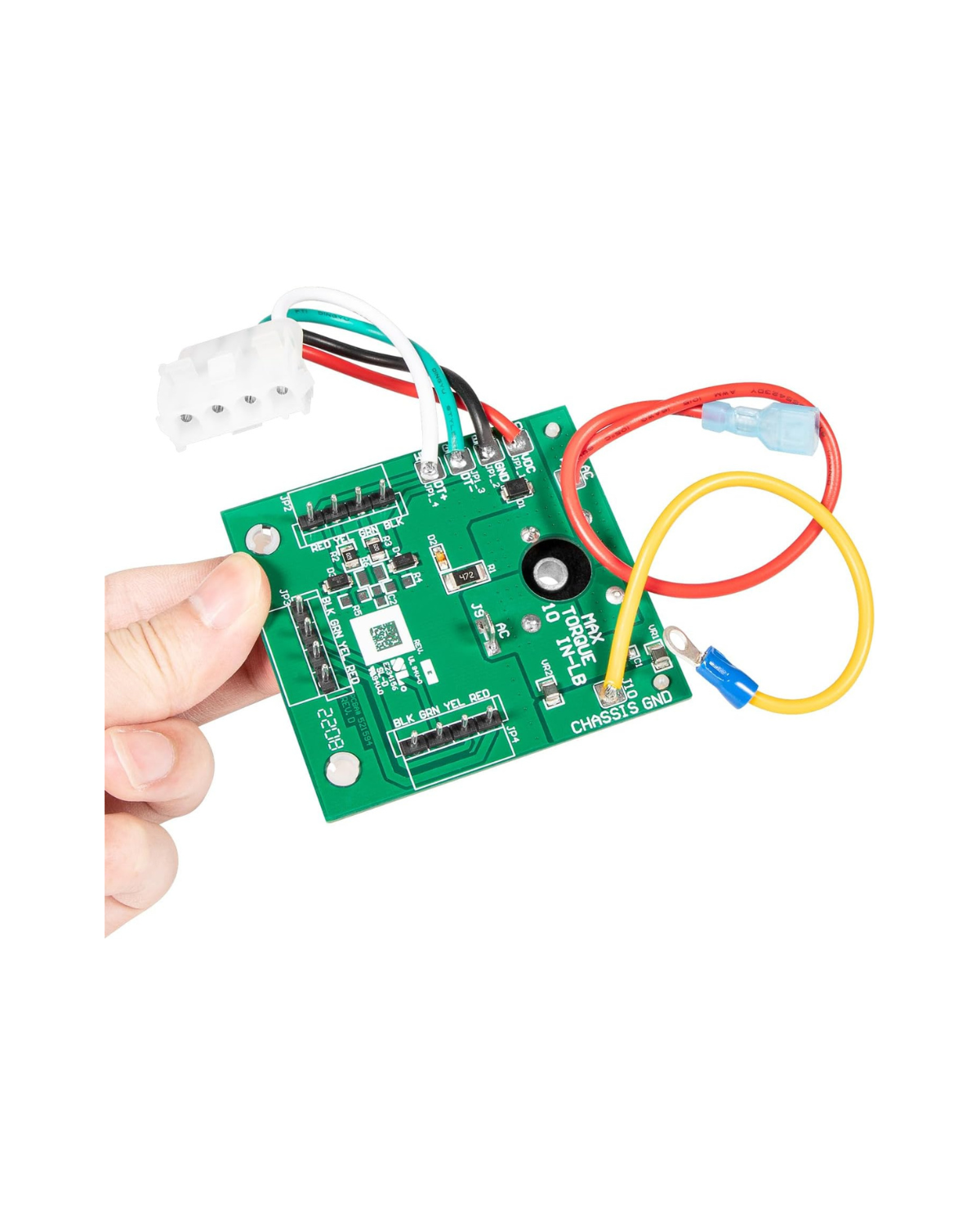

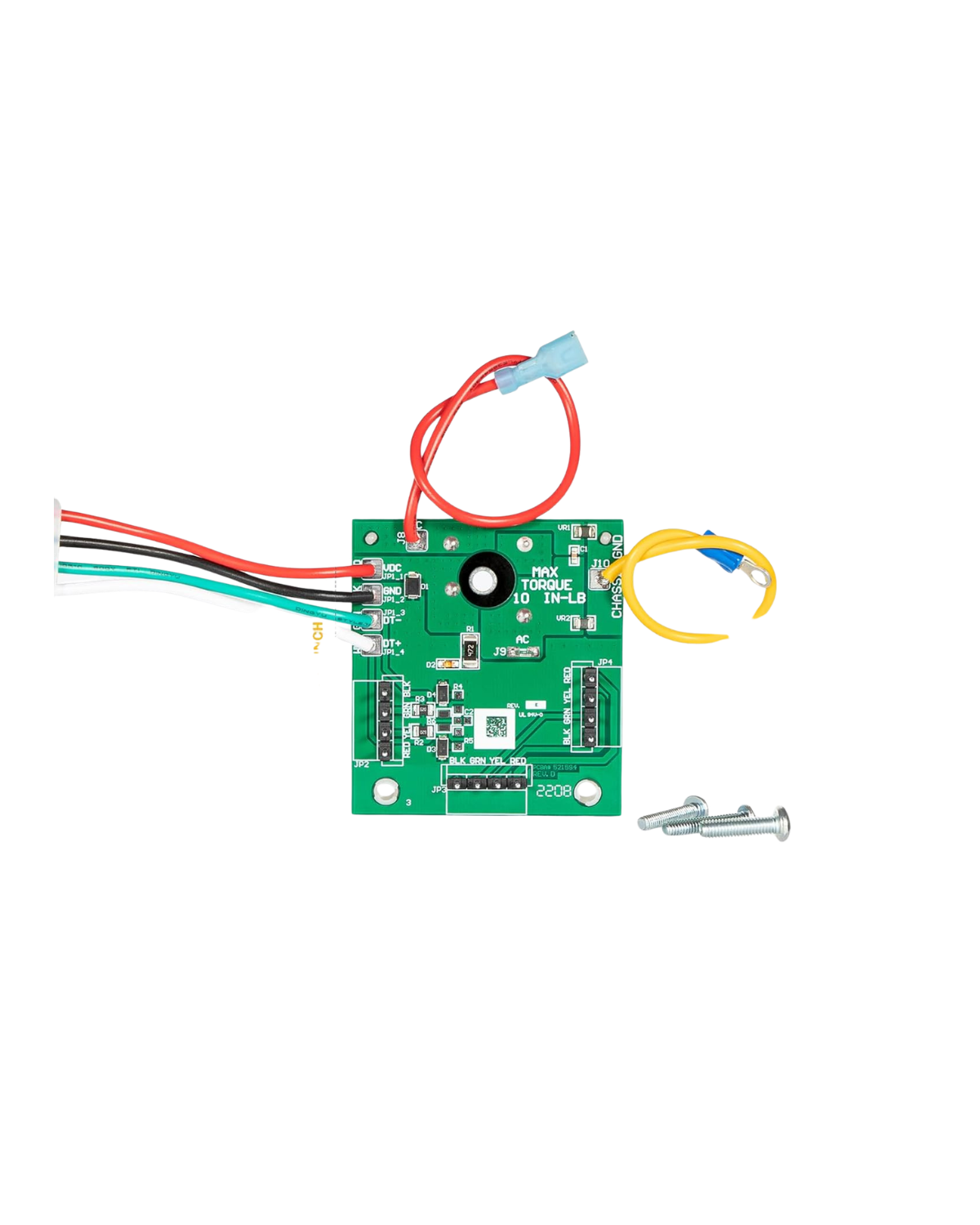

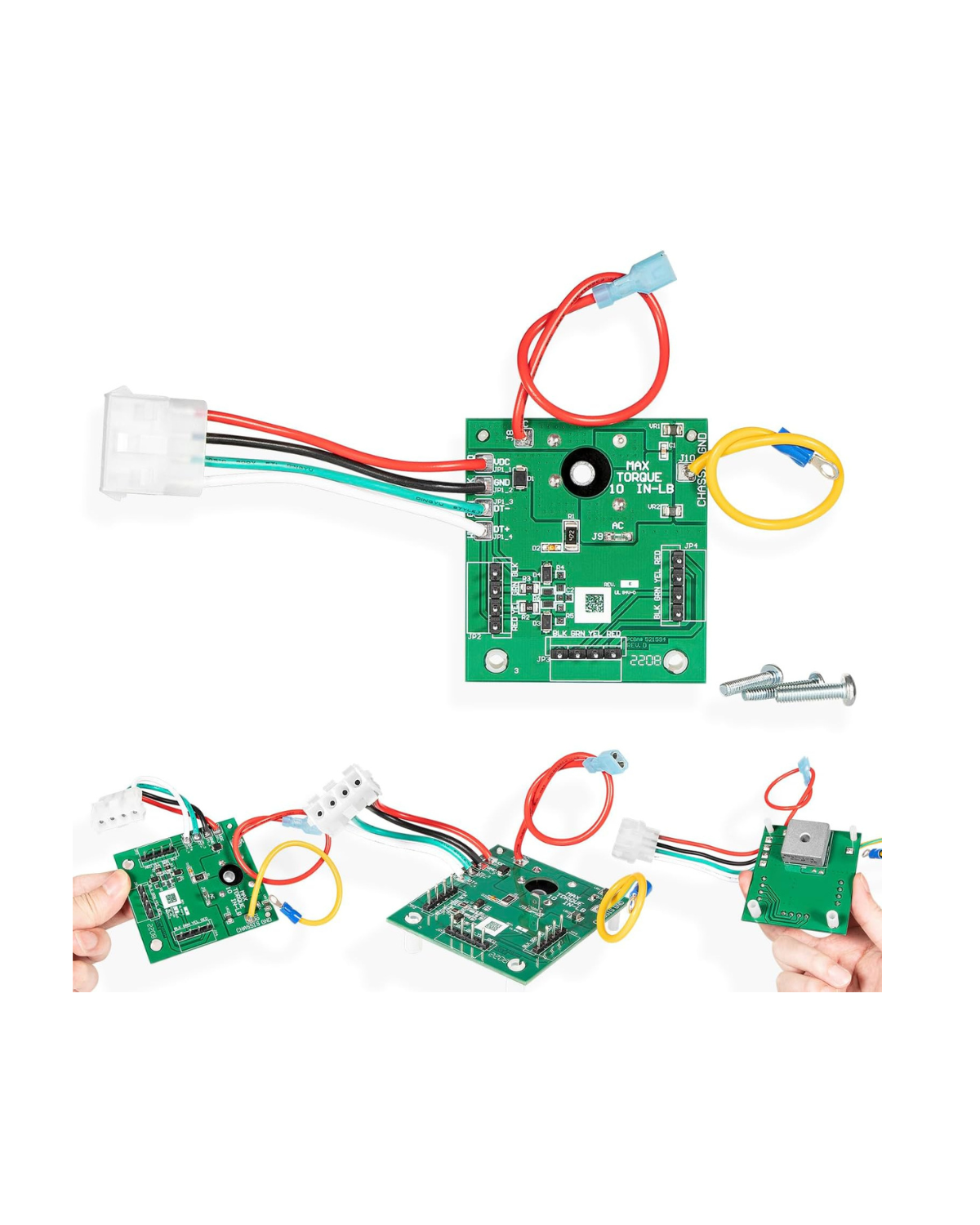

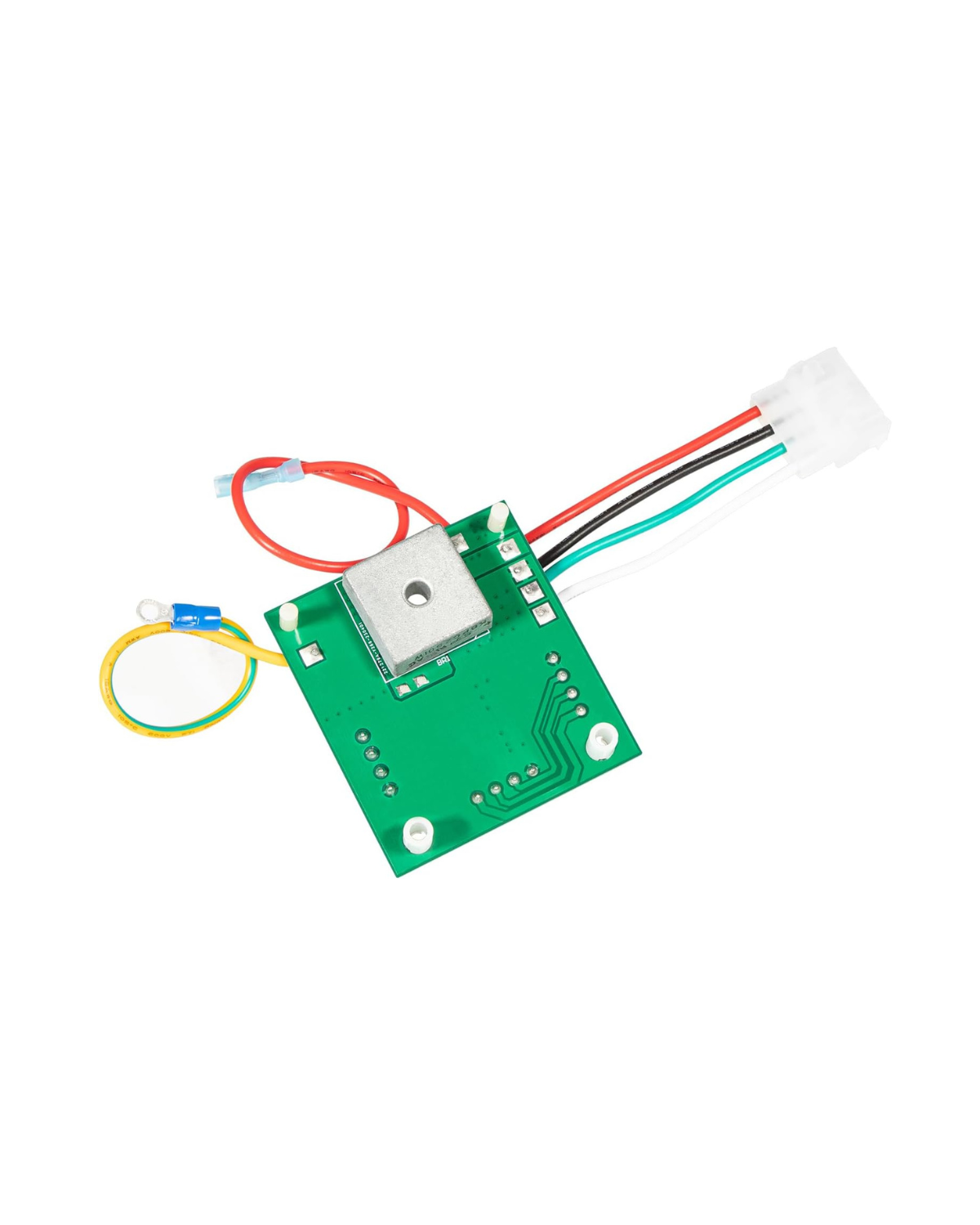

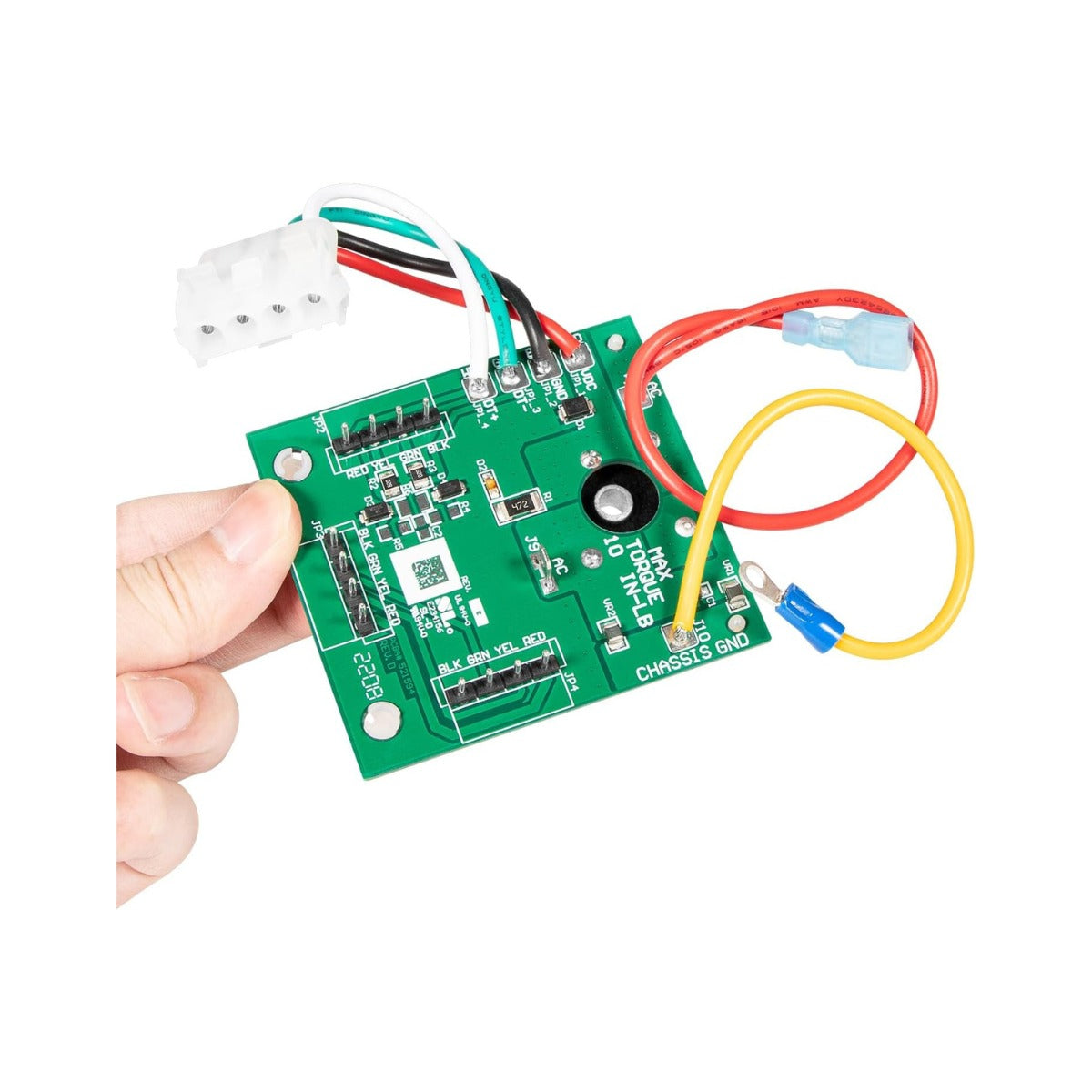

The 521218 Surge Board PCBA is a critical protection component for high-end pool automation and salt chlorination systems. Designed to safeguard sensitive electronics from power surges and voltage fluctuations, this board ensures the continuous operation of your water sanitization and control logic.
Key Product Features
- Advanced Surge Mitigation: Protects the automation control system and integrated salt chlorine generators from harmful electrical spikes.
- High-Durability Build: Constructed with FR-2 Copper Clad Laminate and high-grade capacitors for stable performance in outdoor environments.
- Environmental Coating: Features a three-layer anti-paint coating that provides superior insulation and resistance against moisture, saltwater, and corrosion.
- Precision Engineering: Utilizes high-precision welding technology to prevent short circuits and ensure long-term structural integrity.
Specifications
A critical protection component for high-end pool automation and salt chlorination systems. Designed to safeguard sensitive electronics from power surges and voltage fluctuations, this board ensures the continuous operation of your water sanitization and control logic.
This surge board is a direct replacement for components within the following automation platforms:
| Automation Series | Specific Kits/Platforms | Power Center Type |
|---|---|---|
| PL4 / PSL4 Series | Automation Control Systems | Integrated SCG Centers |
| Personality Kits | i5+3 Systems | Load Centers |
⚠️ Critical Electronics Warnings
- Voltage Verification: Verify the transformer is outputting 30–35V AC. If transformer power is good but the salt cell is dark, this board has likely failed.
- Grounding Check: Ensure the green grounding wire is securely bonded to the enclosure to enable the surge protection circuitry.
- Seating Connectors: Align multi-pin adapters carefully before applying pressure to avoid bending the header pins on the new PCBA.
- Seal the Enclosure: Ensure all conduit openings are sealed to prevent moisture from bypassing the board's protective anti-corrosion coating.
