25' Automation Cable Wiring Kit 356324Z
$85.00
/
Sold out
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup currently unavailable at Marathon FL
Product Description
Unlock the full potential of your pool system with the

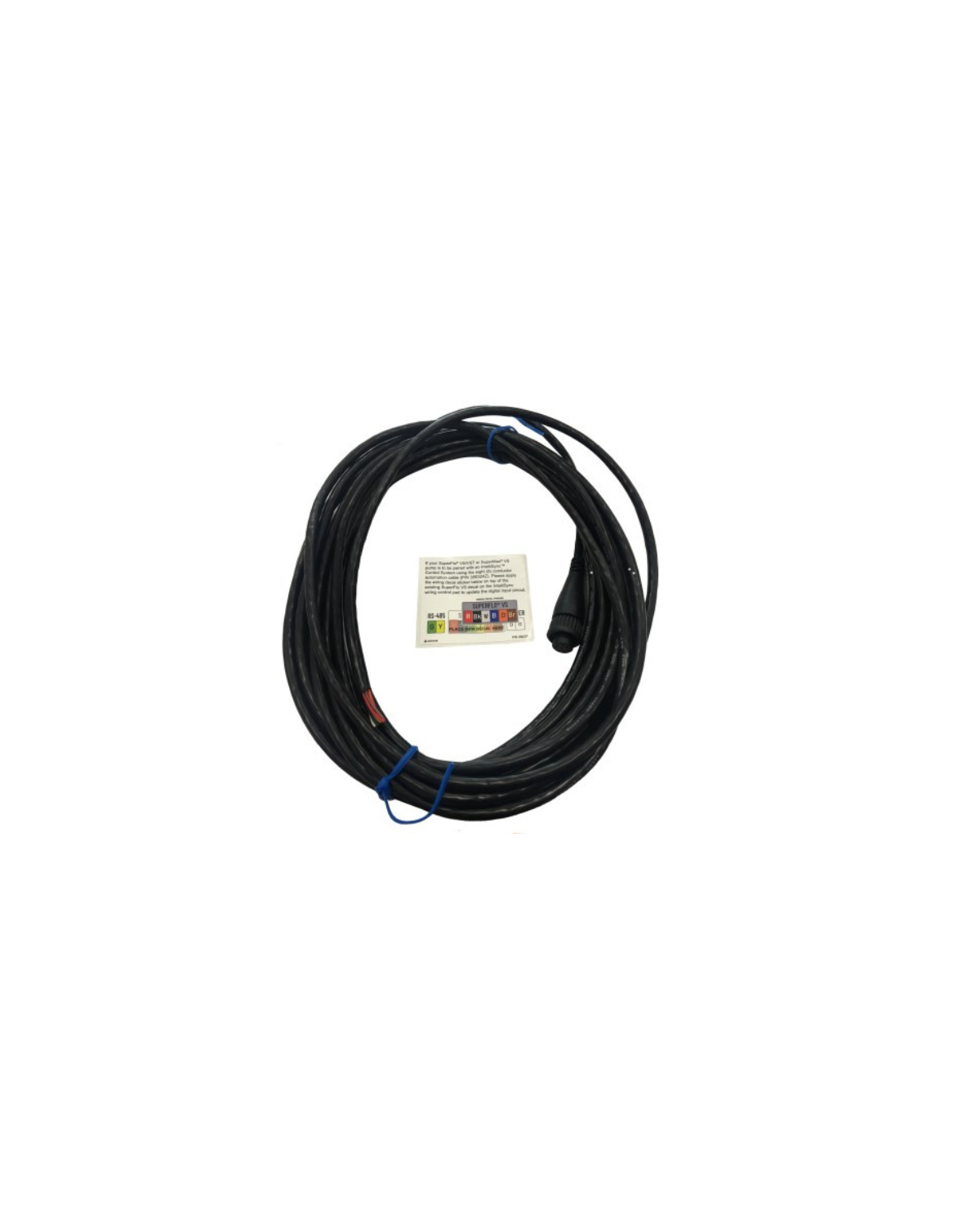

Pentair 25' Automation Cable Wiring Kit
(Part No. 356324Z). This genuine Pentair communication cable is essential for integrating your variable speed pump with your existing pool automation system, allowing for seamless remote control, scheduling, and monitoring.
Key Features & Benefits:
- Seamless Integration: Enables RS-485 communication between compatible pumps and automation systems such as the Pentair EasyTouch, IntelliTouch, IntelliCenter, and Jandy AquaLink.
- Remote Control Capability: Allows you to control pump functions, set custom schedules, and monitor performance (like RPM and wattage usage) directly from your control panel or mobile app.
- Durable & Reliable: Constructed with high-quality, corrosion-resistant PVC sheath and copper conductors to resist weather, heat, and moisture, ensuring stable and uninterrupted data transmission.
- Optimal Length: The 25-foot length provides ample flexibility for routing the cable between your pump and control panel in various pool pad configurations.
- Genuine OEM Part: Ensures compatibility and reliable performance, meeting strict manufacturing standards for your Pentair equipment.
Specifications
Product Type
IntelliFlo®/IntelliPro® Automation Communication Cable
Cable Length
25 Feet (7.6 Meters)
Communication Protocol
RS-485 Digital Link
Wiring Configuration
2-Wire Control (Yellow & Green typically)
Automation Compatibility
IntelliCenter®, EasyTouch®, IntelliTouch®, SunTouch®
Pump Compatibility
All Pentair Variable Speed Pumps (VF, VS, VSF, VST)
Manufacturer Part #
356324Z
UPC / GTIN
788379860660
Warnings and Disclaimers
- Electrical Hazard: Turn off all power to the pump and the control system before installation. High voltage resides in the pump drive and can cause fatal shock.
- Conduit Separation: Do NOT run this low-voltage cable in the same conduit as 120V/240V power wires. Electrical noise will cause communication failure.
- Polarity Sensitive: Ensure Yellow (Pin 3) and Green (Pin 2) are correctly landed on the [RS-485 COM port](https://www.pentair.com). Reversing wires prevents pump control.
- Weatherproofing: Ensure the drive cover gasket is clean and the cable grommet is tightened to prevent water intrusion into the electronics.
Pro Tips
- Verification: If successfully connected, the pump screen will display "Display Not Active" or a locked symbol, indicating the [IntelliCenter](https://www.pentair.com) has taken control.
- Pin Configuration: If your automation system has multiple COM ports, use any available 4-pin connector block, but only use the center two pins for data.
- Troubleshooting: If the pump loses communication, check for green corrosion on the wire tips inside the pump drive. Snip and re-strip 1/4" of wire for a fresh connection.
- Distance Limit: RS-485 can travel up to 500 feet, but if you need to extend this 25' cable, use high-quality [shielded 22AWG twisted pair wire](https://www.poolsupplyunlimited.com).
