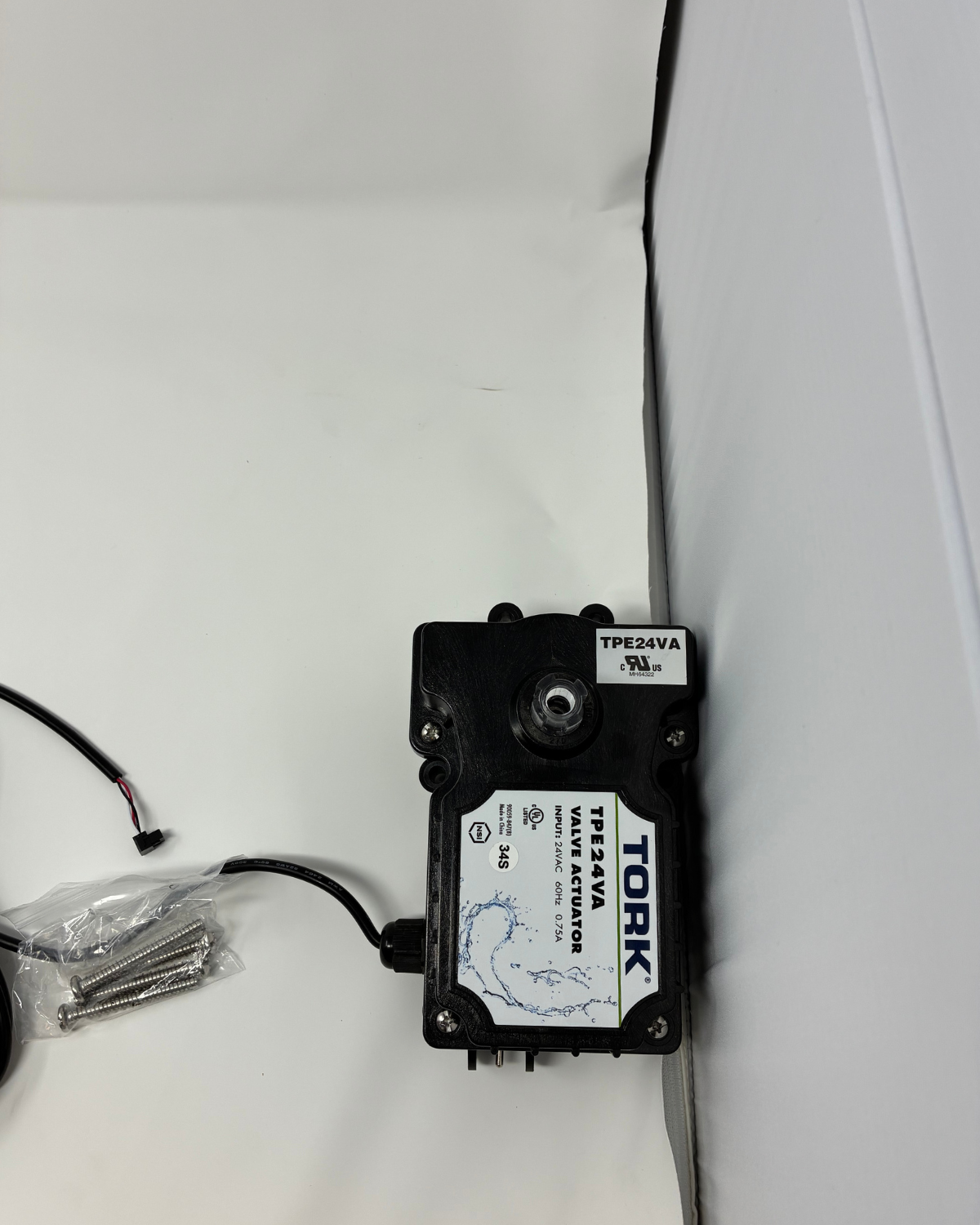

24VAC Motorized Pool/Spa Valve Actuator

The TORK TPE24VA 24VAC Motorized Valve Actuator is a heavy-duty, universal solution for automating water flow in pool and spa systems. Designed for both new installations and retrofits, this actuator provides reliable control of 2-way and 3-way diverter valves. It allows you to seamlessly manage water features, solar heating, and pool/spa combinations with precision. Built with a corrosion-proof, UV-resistant housing, it is engineered for long-term durability in harsh outdoor environments.

Key Features

Universal Compatibility: Fits all major diverter valve brands including Jandy, Pentair, and Hayward.
Adjustable Cam System: Internal cams are easy to adjust, allowing for precise water flow settings and stop positions.
Corrosion-Proof Build: Durable polycarbonate housing resists rust and damage from pool chemicals and weather.

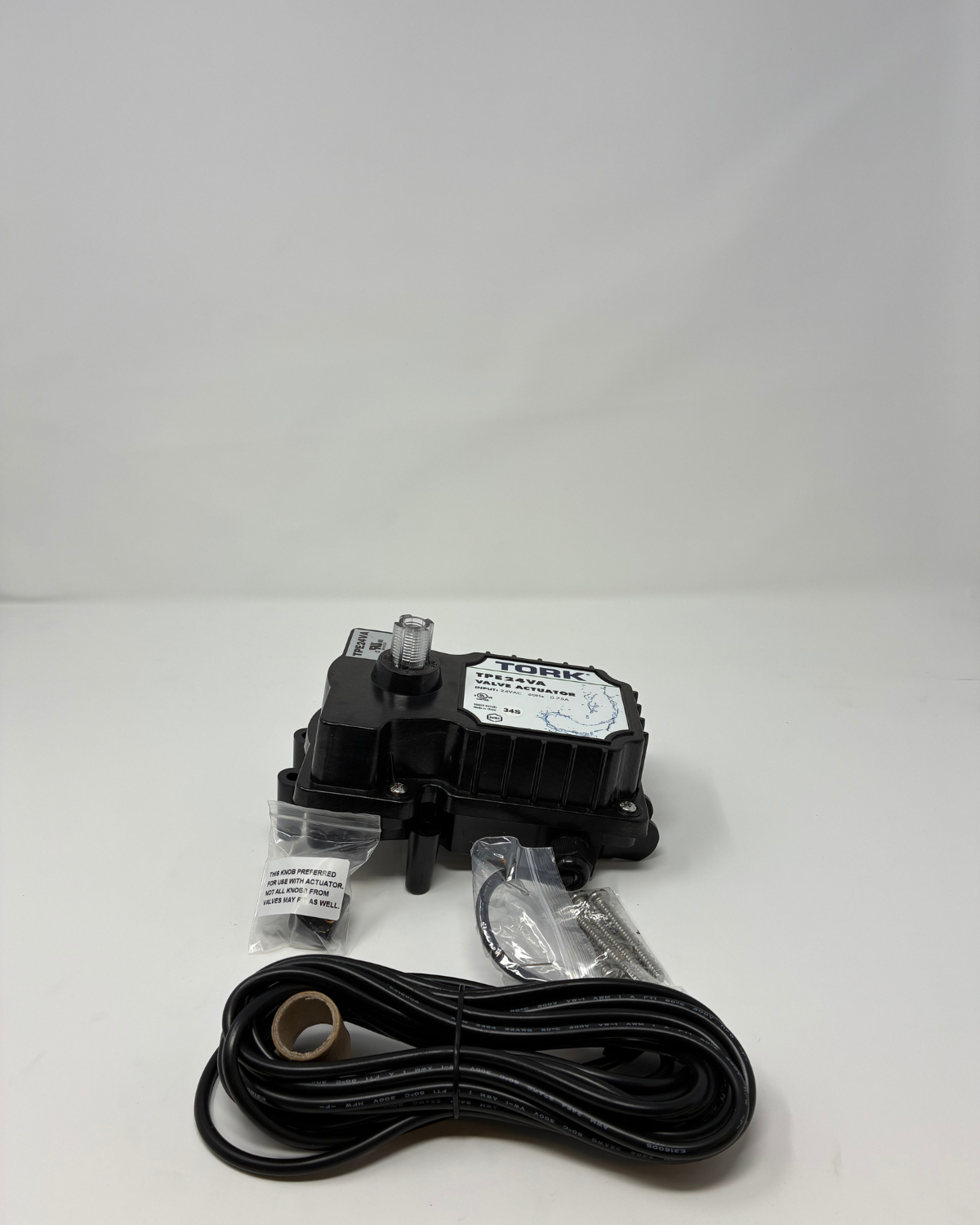

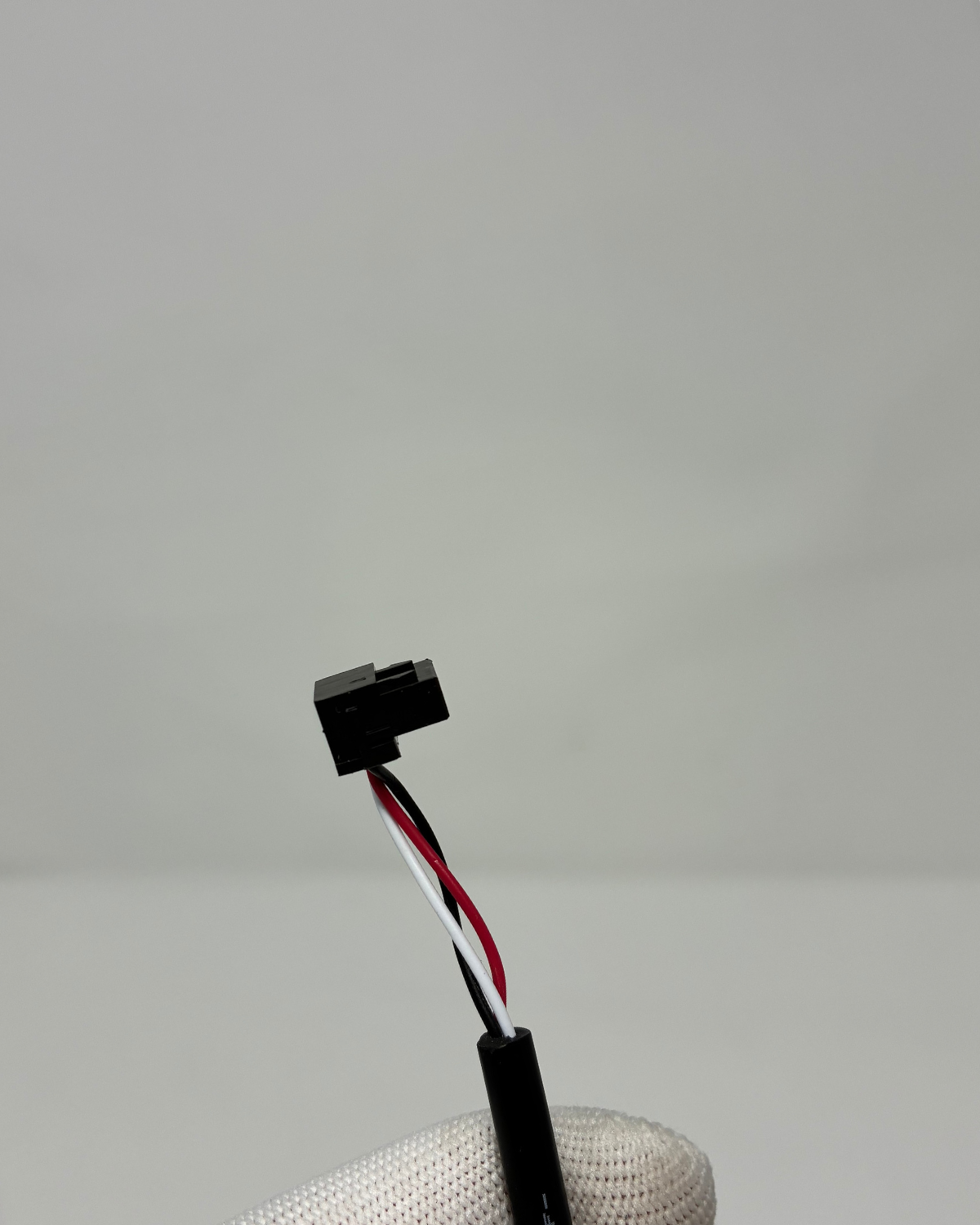

25-Foot Cable: Includes an extra-long, pre-wired cable to simplify installation at the equipment pad.
High-Torque Motor: Provides the power needed to rotate valves under high pressure without sticking.
Automation Ready: Operates on standard 24VAC power, matching most industry-standard control systems.

Specifications

Name: 24VAC Motorized Pool/Spa Valve Actuator
Brand: Tork
SKU: TPE24VA
Price: 195.00 USD
Availability: InStock

Part Number TPE24VA

UPC 786261940629

Operating Voltage 24 VAC

Cable Length 25-Foot (Pre-wired)

Compatibility Jandy, Pentair, Hayward

Valve Support 2-Way / 3-Way Diverter

Housing UV-Resistant Polycarbonate

Motor Type High-Torque / Synchronous

Warnings and Disclaimers

Electrical Requirements: This unit must be powered by a Class 2 transformer providing 24VAC only. Higher voltage will permanently damage the motor and void the warranty.
Water Intrusion: Ensure the housing screws are tightened evenly to maintain a seal. Although corrosion-proof, the unit should not be submerged or subject to direct irrigation spray.
Cam Adjustment: Never force the internal cams while the motor is running. Adjusting stops while powered can strip the gears or misalign the valve positioning.
Safety Clearance: Mount the actuator so the handle is accessible and has enough clearance to rotate fully without hitting other plumbing pipes or equipment.

?? Pro-Tips for Success

Retrofit Advantage: The TORK TPE24VA is designed with a standard mounting pattern, making it a "plug-and-play" replacement for most failed Jandy or Pentair actuators on existing automation systems.

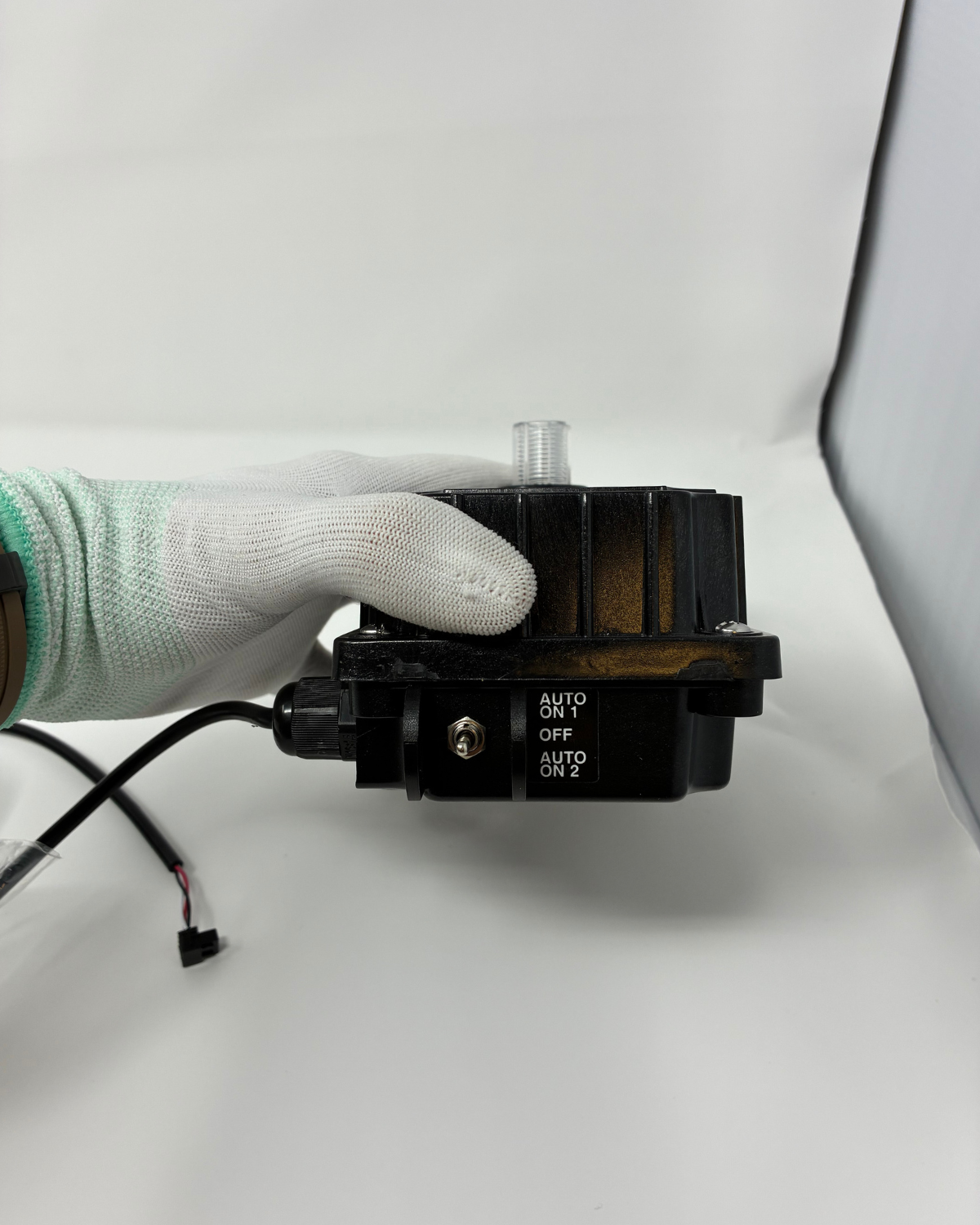

Manual Override: Use the toggle switch on the bottom of the unit to manually flip the valve position during equipment service without needing to access the digital control panel.
Alignment Check: After setting your internal cams, run a test cycle. Ensure the valve closes fully to prevent "water creep" that can drain your spa into your pool overnight.
UV Protection: While the housing is UV-resistant, placing the equipment under a cover can significantly extend the lifespan of the plastic gears and external toggle switch.
