Tork
1109AM-IAP
24 Hour Time Switch 40A 120/208-277V DPST Mechanism with Intermatic Adapter Plate
$75.00
/
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon, FL
Usually ready in 24 hours
Product Description
The Tork 24-Hour Time Switch Mechanism (1109AM-IAP) is a heavy-duty 40A replacement timer for pool pumps, heaters, and lighting. This DPST mechanism features a universal 120/208-277V motor and includes a pre-installed Adapter Plate for a fast, snap-in fit into existing Intermatic T100 series enclosures.
Key Features
- Universal Voltage: High-torque motor supports 120V, 208V, and 277V applications.
- 40A Heavy-Duty Rating: Built to handle powerful residential and commercial equipment.
- DPST Safety: Disconnects both "hot" legs of a 240V circuit simultaneously.
- Adapter Plate Included: Ensures a tool-free, seamless fit into standard Intermatic boxes.
- 24-Hour Scheduling: Includes ON/OFF trippers for easy daily automation.
- Manual Override: Lever allows for instant testing without disrupting programs.
Specifications
Part Number
1109AM-IAP
Motor Voltage
120V / 208V / 277V
Switch Type
DPST (Double Pole)
Amperage Rating
40 Amps per Pole
Cycle Time
24-Hour Mechanical
Mounting
Snap-In Adapter Plate
Frequency
50/60 Hz
Max HP Rating
5 HP @ 240V
Warnings and Disclaimers
- Electrical Hazard: Disconnect all power at the main circuit breaker before installation. This unit controls high-voltage circuits that can cause death or serious injury.
- Correct Terminal Wiring: Ensure the hot wires are connected to the proper terminals based on your input voltage. Improperly wiring a 120V neutral to a high-voltage motor terminal will destroy the clock motor instantly.
- Grounding: The enclosure and mechanism must be properly grounded according to NEC standards to prevent electrical shock in wet pool environments.
- Load Limit: Do not exceed the 40-amp rating. Attempting to run equipment beyond the 5 HP motor rating will cause arcing and permanent switch failure.
💡 Pro-Tips for Success
- Universal Fit: This mechanism fits into almost any Intermatic T100, T170, or T1000 series case. Just press the release spring at the top of the old timer to pop it out and snap this new one in.
- Tripper Tension: When setting your schedule, ensure the gold tripper screws are tightened firmly with pliers or a screwdriver. If they are hand-tightened only, they can vibrate loose and the pump won't turn on.

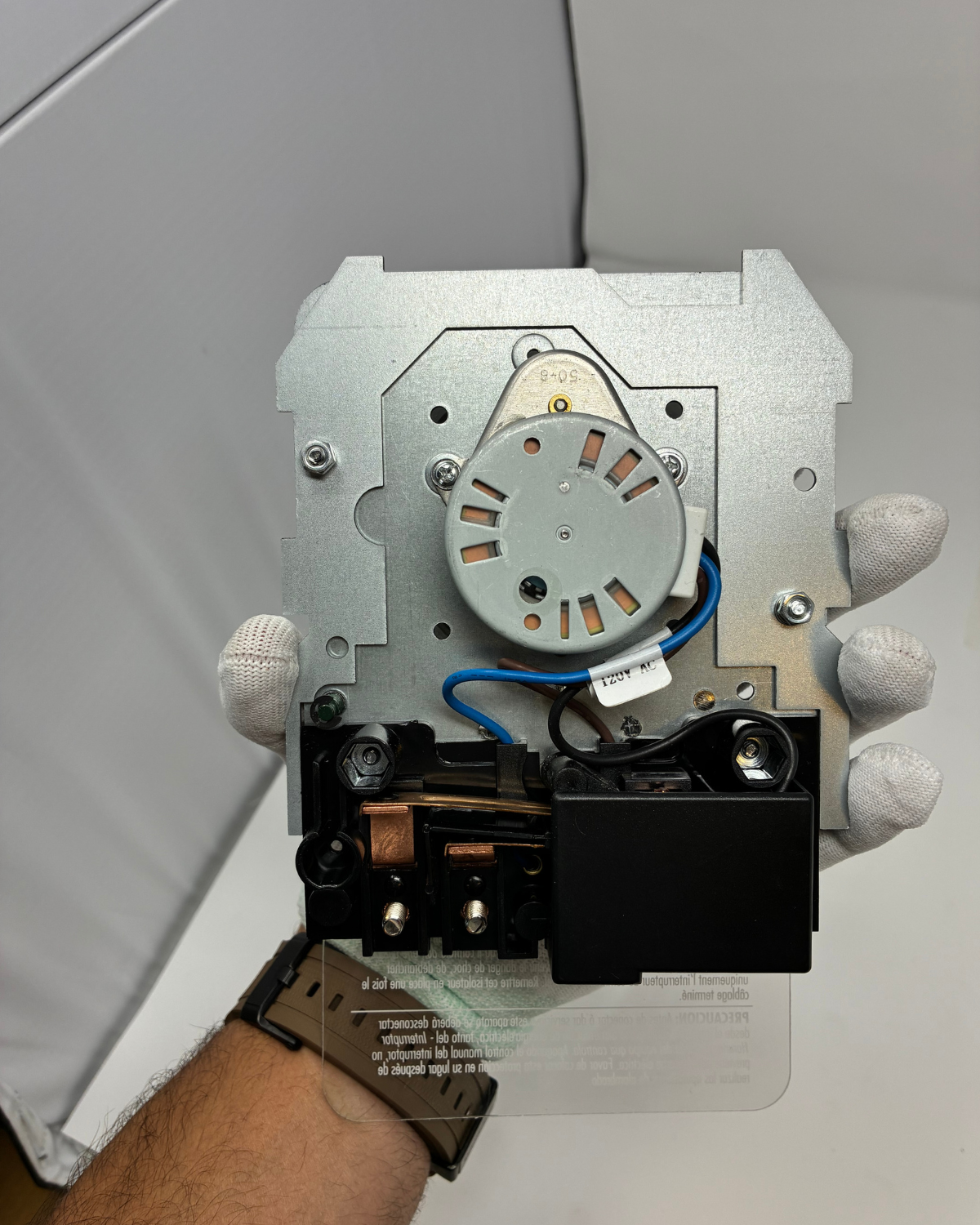

- Motor Check: After wiring, look through the small "visual motor check" window on the front of the mechanism. If the gears are spinning, your clock motor has power and is working.

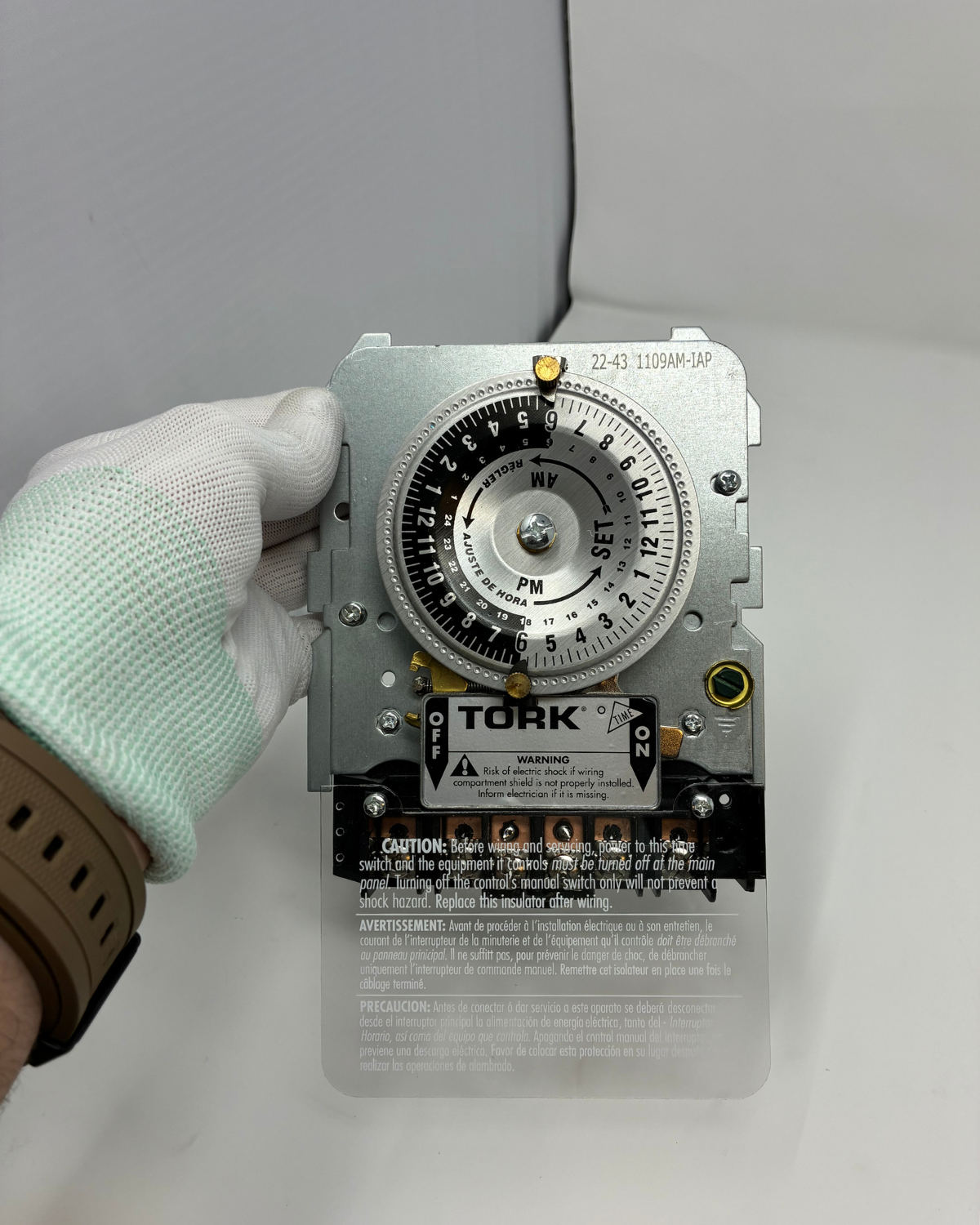

- Manual Testing: Use the silver manual lever at the bottom to test your pump or lights without losing your place on the 24-hour dial.
