CMP
2" Socket x 2.5" Spigot White Pool Defender® Dual Port Skimmer
Pickup available at Online Only
Usually ready in 24 hours
Product Description
Ensure maximum safety and superior water surface cleaning with the CMP 25140-510-000N Pool Defender Dual Port Skimmer. This white, professional-grade skimmer is specifically designed for in-ground gunite (concrete) swimming pools and features an innovative, integrated water bonding system. The built-in water bond lug allows for a direct connection to the pool's equipotential bonding grid, ensuring compliance with NEC 680.26(C) electrical safety codes and protecting expensive metal pool components from galvanic corrosion.
The skimmer is constructed from rugged, UV-resistant ABS plastic, ensuring it withstands harsh chemical and environmental conditions. Its dual-port configuration features versatile plumbing connections: a 2-inch inner diameter (socket) for the main line and a 2.5-inch outer diameter (spigot) for easy PVC pipe integration. The design includes a large-capacity debris basket, a floating weir flap for effective surface tension and debris capture, and a 5.75-inch throat depth.
Key Features
- Integrated Water Bonding: Meets NEC 680.26(C) requirements with a built-in bonding lug, keeping swimmers safe and protecting equipment.
- Dual Port Plumbing: Offers flexible plumbing options with dual ports (2" socket x 2.5" spigot) for connection to the main drain or as an equalizer line.
- Durable Construction: Made from rugged, UV- and chemical-resistant ABS material built for long-term outdoor use.
- Efficient Surface Skimming: Features a true weir and large mouth opening (8.5" W x 5.25" H) for effective debris capture and high flow rates (75 GPM max).
- Easy Access Maintenance: Includes a round white lid and top access for simple and convenient cleaning of the skimmer basket.
- Application: Specifically designed for permanent installation in in-ground residential and commercial gunite pools.
Specifications
Product Details
Technical Data & Plumbing
⚠️ Warnings and Disclaimers
- Electrical Safety: This skimmer features an integrated water bonding system lug that meets NEC 680.26(C) code when correctly wired by a professional.
- Professional Installation: Installation must comply with all local and national electrical and building codes to prevent electric shock hazards. Improper installation voids warranties.
- Plumbing: Because this skimmer has ABS body with PVC ports, you must use regular PVC glue for all plumbing connections.
- California Prop 65: This product can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm.
💡 Professional Tips
- Dual-Port Function: The skimmer has two bottom ports. The rear port should connect to the pump suction, while the front port can be used as an equalizer line to the main drain or plugged if not used.
- Weir Door: The snap-in weir door helps manage surface tension for efficient debris capture and collection in the basket.

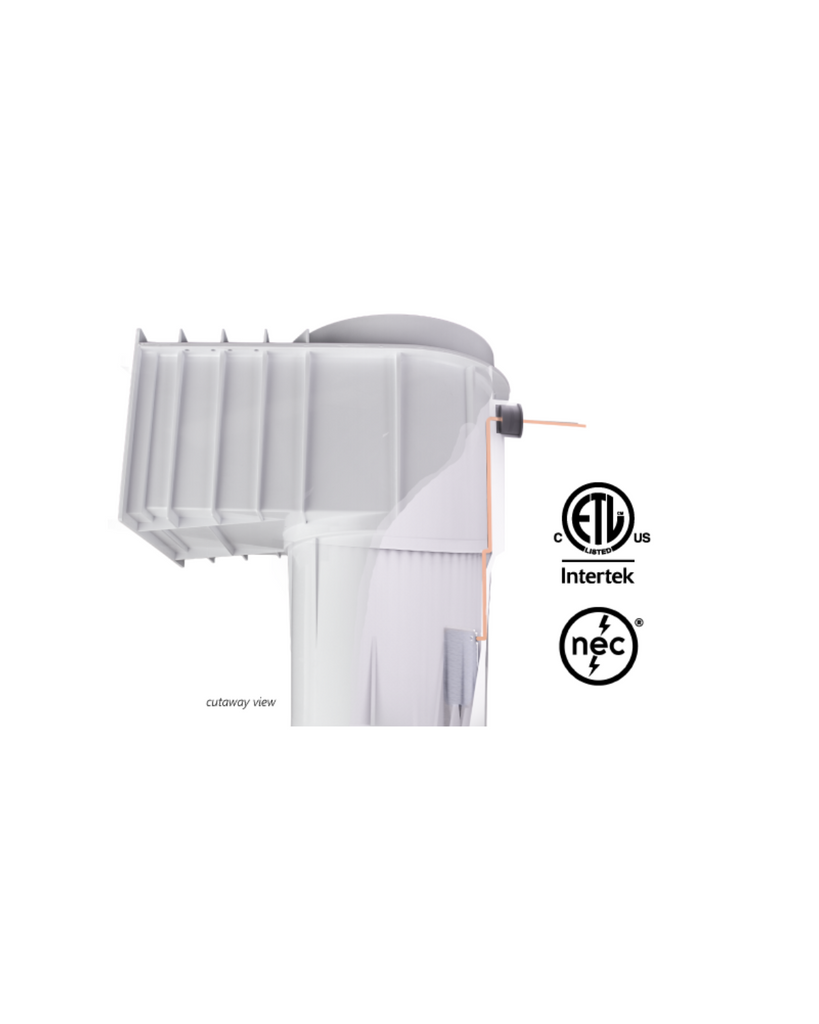

- Integrated Bond: The embedded copper wire runs safely to a stainless steel plate behind the skimmer basket, providing an easy point to attach your pool's bonding wire to protect expensive metal equipment from corrosion.
Disclaimer: This information is for general knowledge and should not be interpreted as professional advice. Use of these technical specifications and guidelines is at the user’s own risk. We provide this content on an "as is" basis without warranty of any kind, and we disclaim all liability for errors, inaccuracies, or damages resulting from the handling, installation, or misuse of the products described herein. Users must strictly follow manufacturer-printed manuals and consult qualified contractors to ensure compliance with local laws and safety regulations.
