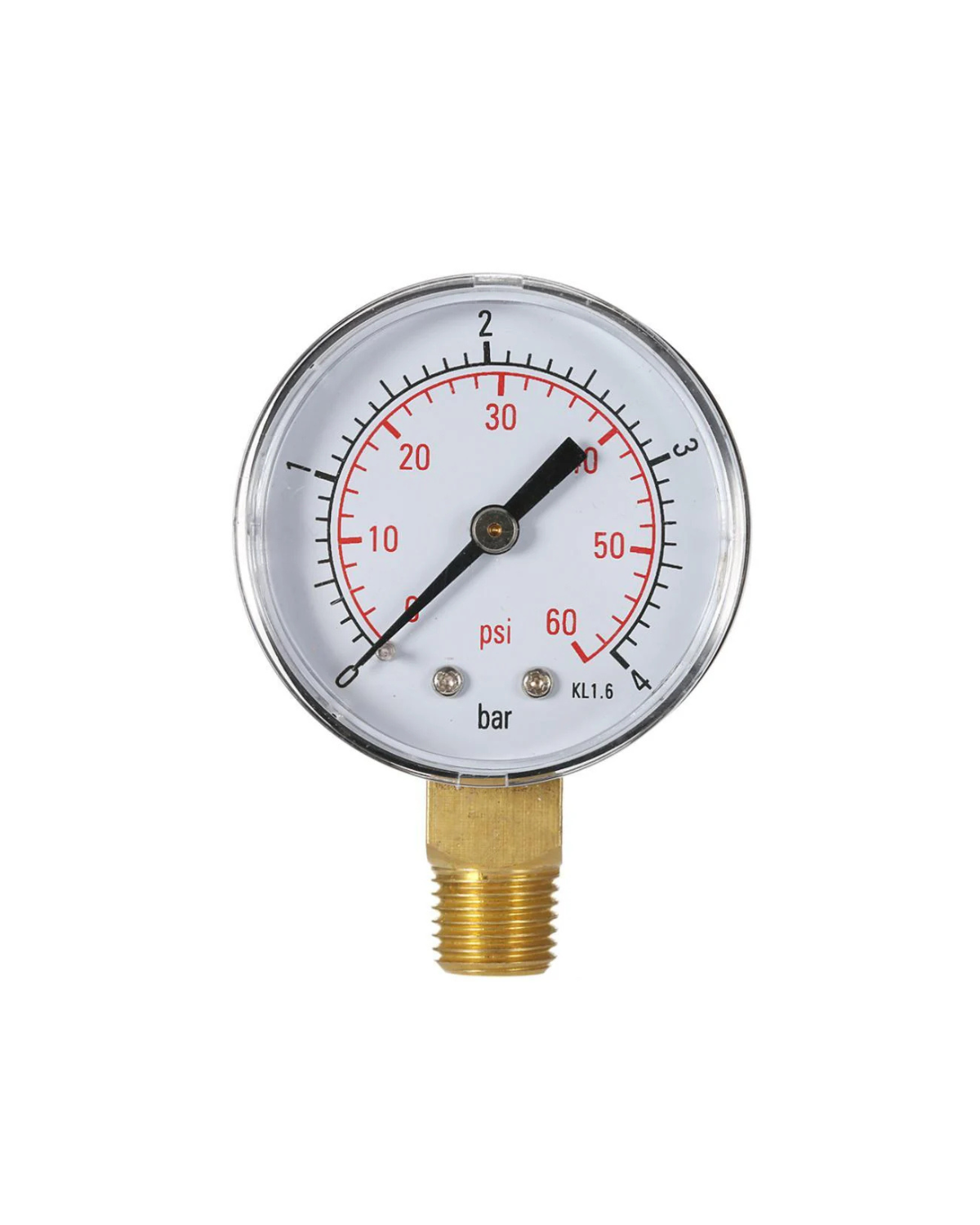

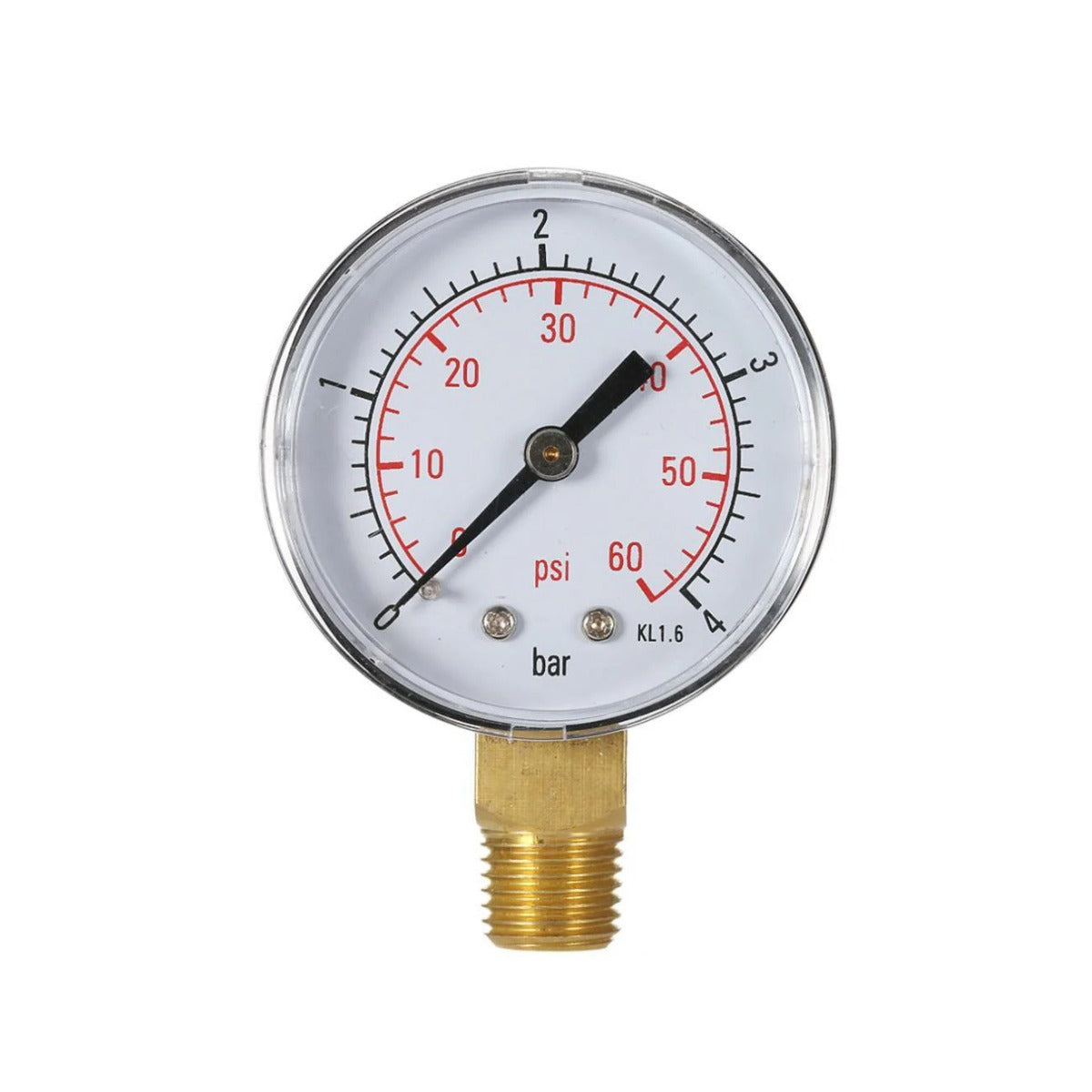

1/4" MPT Pressure Gage with Indicator

$16.00
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days

Pickup available at Marathon FL

Usually ready in 24 hours

View Specifications
Product Description

Ensure your filtration system stays at peak performance with this high-precision replacement pressure gauge. This professional-grade instrument features a clear 2-inch display and an integrated, adjustable indicator ring to help you easily track "clean" vs. "dirty" pressure levels. Built for durability in both top-mount and bottom-mount applications, it provides accurate system management to help protect your equipment from over-pressurization.
Specifications

Specifications

Universal Pool & Spa Pressure Gauge (0-60 PSI)

Ensure your filtration system stays at peak performance with this high-precision replacement pressure gauge. This professional-grade instrument features a high-visibility display and an integrated indicator ring to easily track system health and equipment safety.

Pressure Range 0 – 60 PSI
Connection Size 1/4" NPT (Male)
Mounting Type Top or Bottom-Mount
Dial Diameter 2.5-Inch Face
Indicator Ring Adjustable Marker
Compatibility Standard 1/4" Threading

Safety Warnings

Hand Tighten Only: Never use a wrench on the gauge body; this can cause the housing to separate or damage the filter tank threads.
Relieve Pressure: Always turn off the pump and open the manual air relief valve to bleed all pressure until the gauge reads zero before attempting to remove the old unit.
System Limits: Never operate a filtration system above 50 PSI. Rapidly rising pressure indicates a severe blockage that requires immediate attention.
💡 Pro Maintenance Tips
  • Set Your Baseline: Immediately after a fresh filter cleaning, move the indicator ring to your current needle position. When pressure rises 10 PSI above this, it's time to clean.
  • The Perfect Seal: Apply 2–4 wraps of PTFE (Teflon) tape clockwise around the threads before installation.
  • Alignment Logic: If the dial isn’t perfectly upright when snug, add another layer of tape rather than forcing an extra turn, which could crack the manifold.
  • Durability: Features a corrosion-resistant housing and high-impact internals for long-term outdoor use.
Universal Compatibility: Fits most standard cartridge, D.E., and sand filter housings designed for 1/4" NPT threading.

User Disclaimer: Proper equipment maintenance is the responsibility of the owner. Always refer to your filter manufacturer's manual for specific operational pressure limits and safety instructions.
