Jandy
iQPUMP01
Jandy Variable Speed Pump Controler
$150.00
/
Shipping calculated at checkout.
Available In-Store Only
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon, FL
Usually ready in 24 hours
Product Description

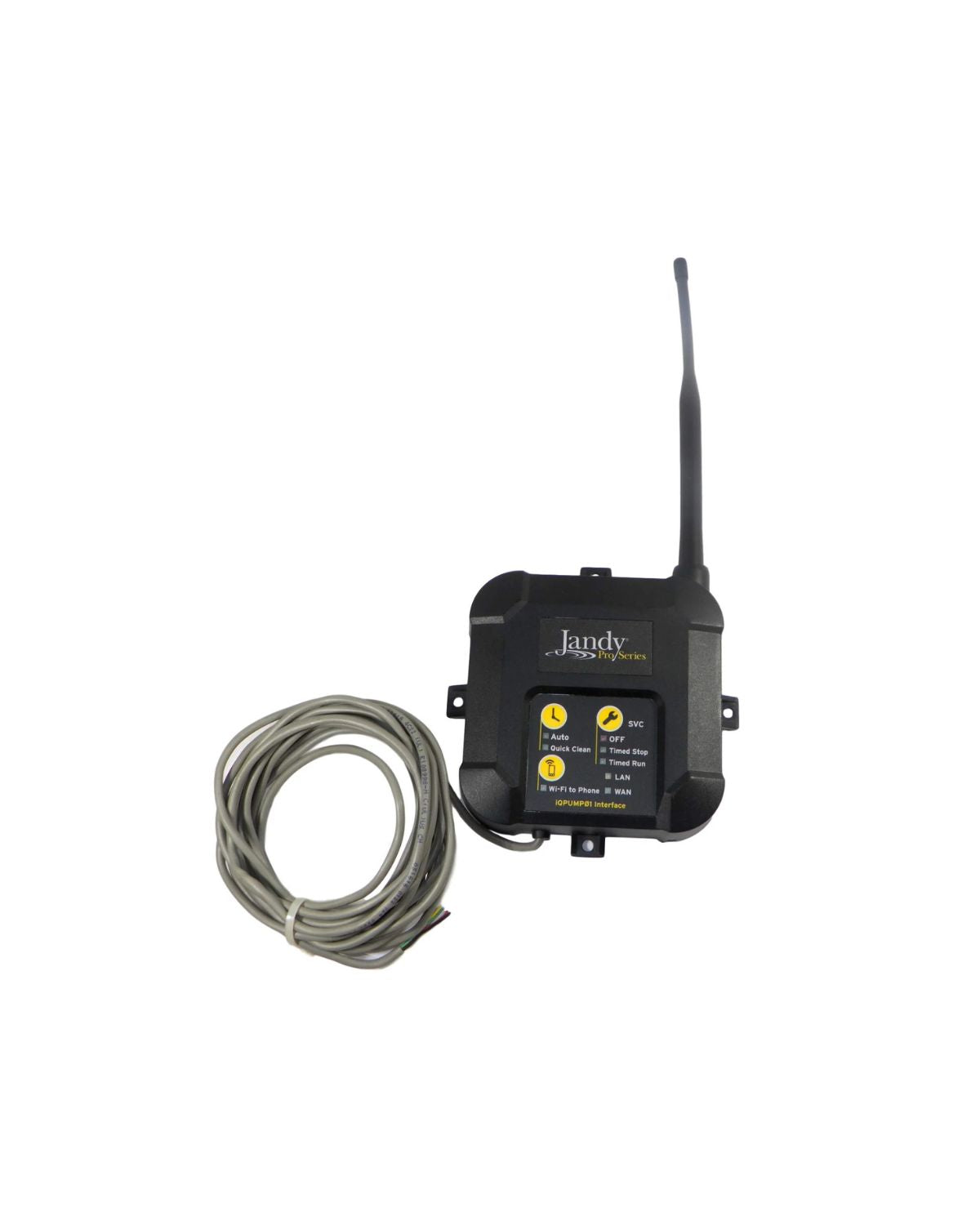

Transform your pool management with the Jandy iQPUMP01 iAquaLink Wireless Pump Controller. This powerful smart interface grants you total control over any Jandy variable-speed pump directly from your smartphone or tablet. By eliminating the need for a separate wall-mounted controller or complex automation panel, the iQPUMP01 serves as a streamlined, plug-and-play solution for remote scheduling and real-time monitoring. Whether you’re at home or on the go, the intuitive iAquaLink app allows you to optimize your pump's performance, ensuring maximum energy efficiency and crystal-clear water with just a few taps.
Key Features
- Wireless Smartphone Control: Manage your pump anytime, anywhere using the top-rated iAquaLink app for iOS and Android.
- Built-in Wi-Fi Hotspot: Features "Wi-Fi to Phone" technology that allows for easy setup and local control at the equipment pad, even without a home internet connection.
- Advanced Scheduling: Program up to 10 daily schedules and customize RPM settings for filtration, heating, and water features to significantly lower energy costs.
- One-Touch Service Modes: Includes dedicated physical buttons for Quick Clean (high-speed burst), Timed Run, and Timed Stop for effortless pool maintenance.
- Flexible Compatibility: Specifically designed to work with all Jandy Pro Series variable-speed pumps, including FloPro VS and ePump models.
- Integrated Auxiliary Relay: Features a built-in relay to control a secondary device, such as a booster pump or salt chlorinator, directly through the interface.
- Real-Time Monitoring: View current pump status, speed, and power consumption instantly to ensure your system is running at peak performance.
- Easy Plug-and-Play Setup: Connects directly to the pump’s RS485 communication port, replacing the need for traditional manual keypads.
Specifications
Model Number
iQPUMP01
Control Interface
iAquaLink App (iOS/Android)
Connection Type
RS485 Communication Port
Network
2.4 GHz WiFi
Compatibility
Jandy FloPro VS / ePump
Auxiliary Relay
1 (Integrated)
Daily Schedules
Up to 10
Physical Interface
Service / Hotspot Buttons
Warnings and Disclaimers
- Electrical Safety: Ensure all power to the pump is disconnected before plugging the iQPUMP01 into the RS485 port. Failure to do so can result in electrical shock or board failure.
- Frequency Limitation: This device only supports 2.4GHz WiFi networks. It will not detect or connect to 5GHz-only bands. Ensure your mesh system or router is broadcasting a compatible 2.4GHz signal.
- Conflict of Control: The iQPUMP01 is designed to replace traditional wall controllers. Do not attempt to run multiple controllers (like a SpeedSet and an iQPUMP01) on the same pump simultaneously unless specifically configured in "Automation" mode.
- Signal Strength: Avoid mounting the module inside metal enclosures or directly behind stone walls, as these will severely degrade WiFi signal and lead to "Offline" status in the app.
💡 Pro-Tips for Success
- Hotspot Mode: If you lose home internet, use the physical button on the module to activate "WiFi to Phone" mode. This creates a direct link between your phone and the pump so you can still manage it locally.
- Relay Expansion: Use the built-in auxiliary relay to sync your salt chlorinator with the pump. This ensures your [Jandy TruClear](https://www.jandy.com) or [AquaPure](https://www.jandy.com) only generates chlorine when the pump is actually running.
- Service Mode: The "Quick Clean" button on the module is a lifesaver for pool pros. It triggers a pre-set high-speed run for vacuuming or chemical mixing without the pro needing access to your home WiFi or app account.
- Energy Optimization: Use the real-time wattage monitor in the iAquaLink app to find your pump's "sweet spot"—the lowest RPM possible that still keeps the pool surface clean and the heater engaged.
