Jandy
7441

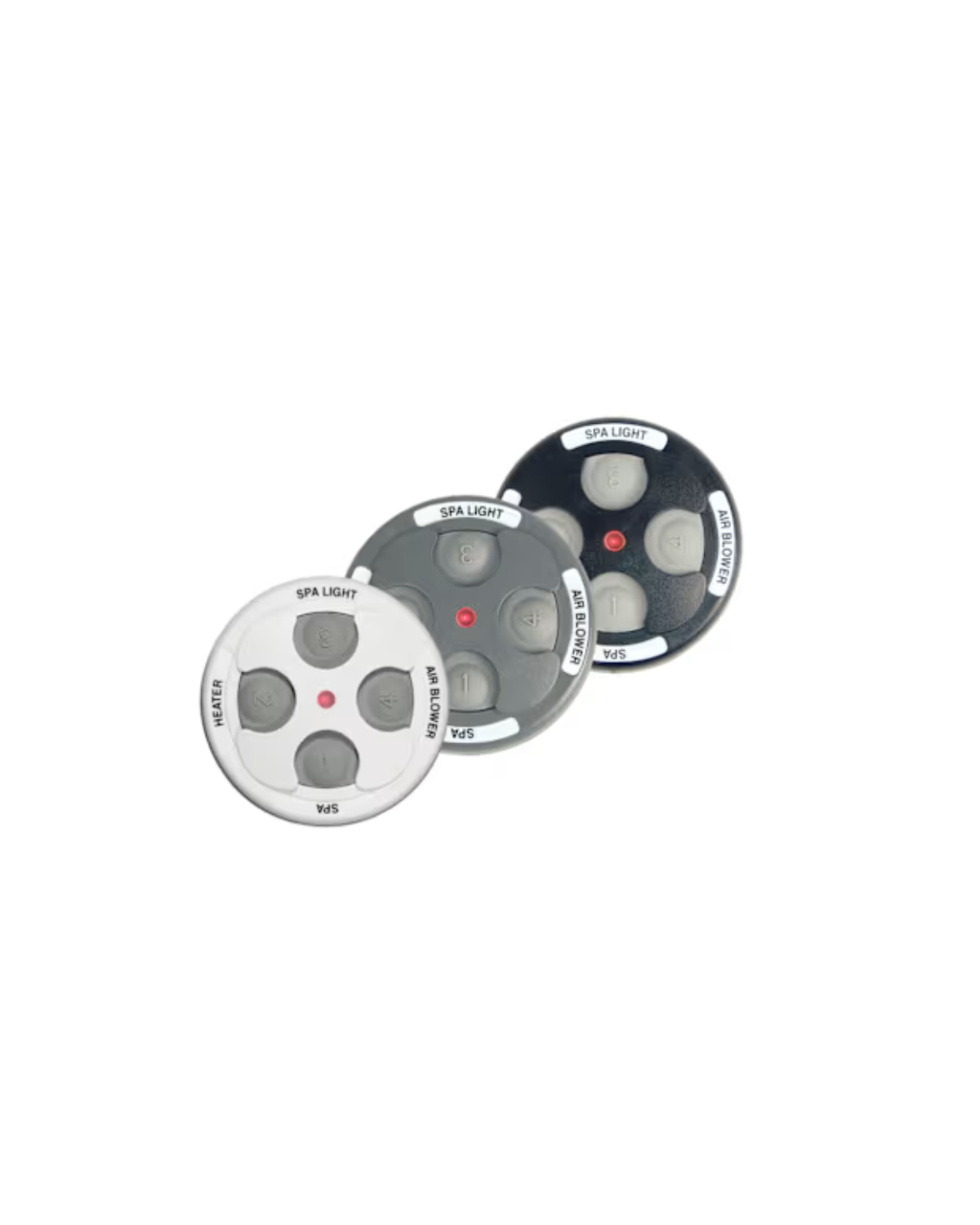

Jandy ProSeries 2-3/4" 4 Function Spa Side Remote
$375.00
/
Shipping calculated at checkout.
Available In-Store Only
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon, FL
Usually ready in 24 hours
Product Description
The Jandy ProSeries 4-Function Spa-Side Remote puts total backyard control at your fingertips without leaving the water. Designed for AquaLink® RS, PDA, and iAquaLink™ systems, this waterproof remote allows you to instantly toggle between pool and spa modes, adjust temperatures, and activate lighting or jets. Available in White, Gray, or Black to match your spa’s aesthetic, it features multiple cable lengths up to 200 feet, ensuring a seamless connection to your equipment pad regardless of distance.
Key Features
- 4-Button Customization: Program each button to control specific features like heaters, blowers, jets, or LED lighting.
- Total System Integration: Fully compatible with all Jandy AquaLink RS and iAquaLink automation platforms.
- Multiple Cable Lengths: Available with 100ft, 150ft, or 200ft pre-wired cables to fit any backyard layout.
- Three Color Options: Offered in White, Gray, and Black to blend perfectly with your spa coping or tile.
- 100% Waterproof: Rugged, sealed construction designed for permanent in-wall installation in wet environments.
- Easy Installation: Fits standard 1" or 1.5" conduit for a clean, professional retrofit or new build.
Specifications
Jandy® ProSeries 4-Function Spa Side Remote
The Jandy Spa Side Remote is a waterproof, low-voltage control puck designed to provide instant access to four user-defined pool and spa functions (Jets, Lights, Air Blower, Heater, etc.) directly from the spa. It installs into a standard 2-3/4" opening and connects via a 4-wire cable to AquaLink® RS, PDA, or Z4 automation systems.
Technical Specifications (Universal for All Colors/Lengths)
Mounting Size2-3/4" (Standard Deck/Tile)
Functions4 User-Defined Buttons
Voltage24V DC (Low Voltage)
CompatibilityAquaLink® RS / PDA / Z4
Wiring4-Wire Shielded Cable
MaterialHigh-Impact Plastic (UV Rated)
Waterproof RatingIP68 (Submersible Face)
IncludedLabel Sheet & Mounting Gasket
Manufacturer Part Number Reference Guide
Cable Length
White
Gray
Black
100 Feet
7442
7443
7444
150 Feet
7445
7446
7447
200 Feet
7448
7449
7450
Safety Warnings & Critical Installation
Low Voltage Only: Never connect this remote to high-voltage power. It is designed only for the 24V DC auxiliary ports on Jandy automation boards.
Conduit Isolation: To prevent electrical interference (crosstalk), the remote cable MUST be installed in its own dedicated 1" PVC conduit. Never pull this cable through a conduit containing 120V/240V equipment wiring.
Chemical Exposure: While waterproof, avoid exposing the face of the remote to concentrated pool chemicals or acid washes during pool resurfacing, as this can cloud the plastic or degrade the button seals.
Winterization: In extreme freezing climates, ensure no water is trapped in the conduit behind the remote, which could expand and crack the housing.
💡 Expert Pro-Tips
- Labeling: Apply the included function labels (Heater, Spa, Light, etc.) to the buttons *before* installing the clear protective cover to ensure they stay straight and dry.
- Cable Pulling: Use wire pulling lubricant for runs over 100 feet. The outer jacket is durable but can stretch or tear if forced through tight 90-degree elbows.
- Sealant: Apply a small bead of 100% silicone sealant around the rear of the mounting flange to ensure a secondary watertight barrier between the spa tile and the conduit.
- Automation Setup: Button assignments are programmed at the main AquaLink® power center. You can set buttons to trigger individual relays or "One-Touch" macro scenes.
