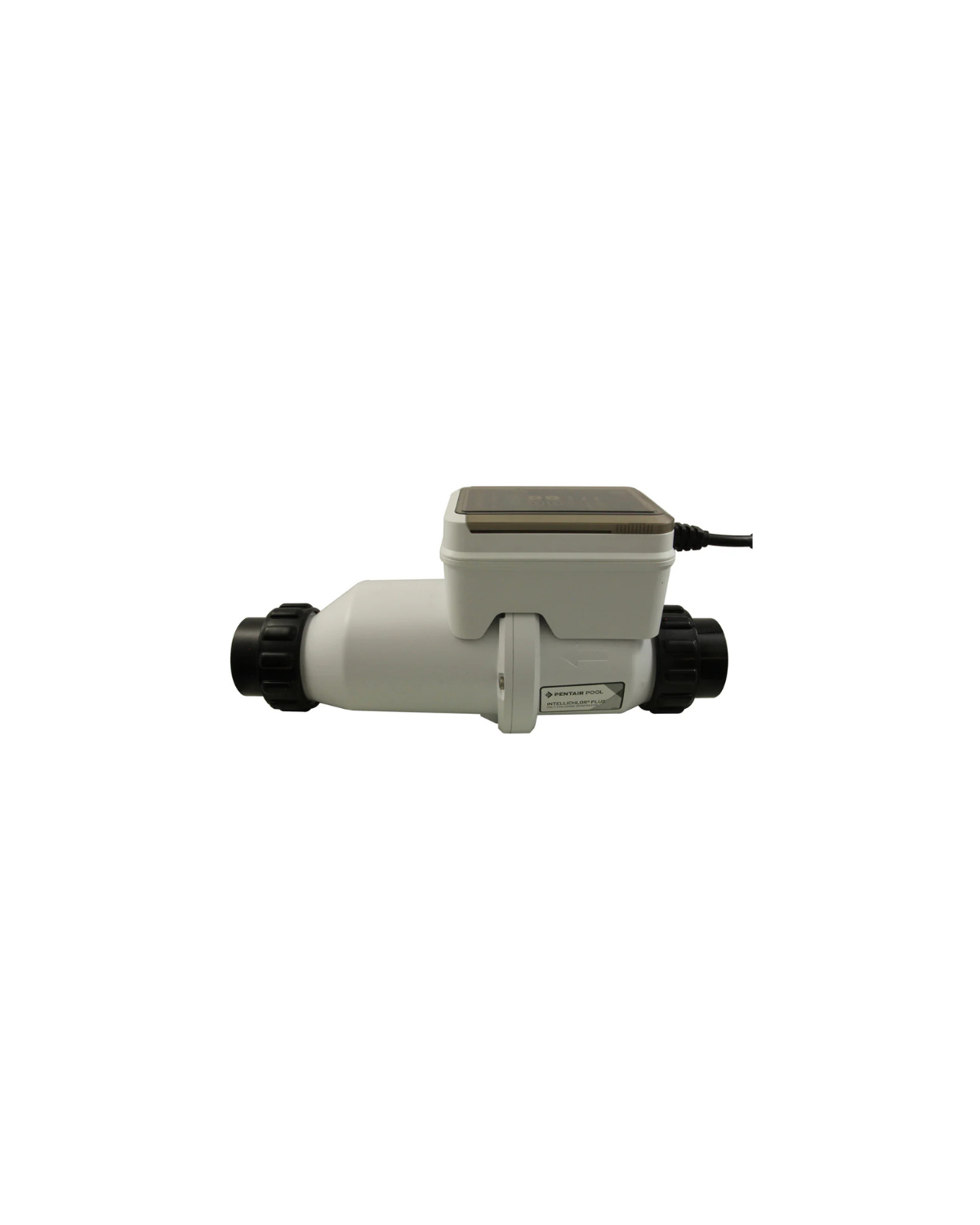

IntelliChlor Plus60 Salt Chlorine Generator Cell 60k gal

The Pentair IntelliChlor Plus60 Salt Chlorine Generator Cell is the highest-capacity model in the IntelliChlor Plus series, engineered for pools up to 60,000 gallons. Using advanced electrolysis technology, it automatically converts ordinary salt into pure chlorine to keep your pool water clean, clear, and perfectly balanced.

With its modular design, the IntelliChlor Plus60 provides precise control, easy servicing, and exceptional durability. It features self-cleaning titanium plates, a reverse polarity system to reduce scale buildup, and a smart conductivity sensor for accurate salt readings. Built for large residential and light commercial pools, this system delivers dependable sanitation with minimal maintenance — no more handling, measuring, or storing traditional chlorine.

Specifications & Features

Brand / Model: Pentair IntelliChlor Plus60

Part Number: PAC-45-1564 / 523738

Pool Capacity: Up to 60,000 gallons

Chlorine Output: Approximately 2.0 lbs of chlorine per 24 hours

Voltage (Cell Side): 22–39 V DC (requires IntelliChlor Power Center)

Amperage: Up to 8.0 A at full capacity

Salt Operating Range: 2,500 – 4,500 ppm (ideal around 3,400 ppm)

Technology: Electrolytic generation of chlorine using titanium plate cell

Self-Cleaning: Reverse polarity function automatically removes scale buildup

Sensor Accuracy: Enhanced conductivity sensor for precise salt and temperature monitoring

Design: Modular, field-serviceable components for simplified maintenance

Display & Diagnostics: LED indicators for salt level, output percentage, and cell status

Housing Material: UV-resistant, corrosion-proof thermoplastic

Dimensions: Approx. 18″ (L) × 8″ (W) × 9″ (H)

Weight: Around 8.5 lb

Installation: Drop-in compatible with existing IntelliChlor systems

Application: Large residential and commercial swimming pools

Certifications: Meets NSF/ANSI performance standards for pool sanitization

Maintenance: Rinse or acid wash cell as needed to remove calcium buildup

Residential: 1 - year parts and labor warranty Commercial: 1 - year parts and labor (warranty is provided by the manufacturer)

Salt System Installation Option Details: Covers replacement of an existing salt system only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties.
