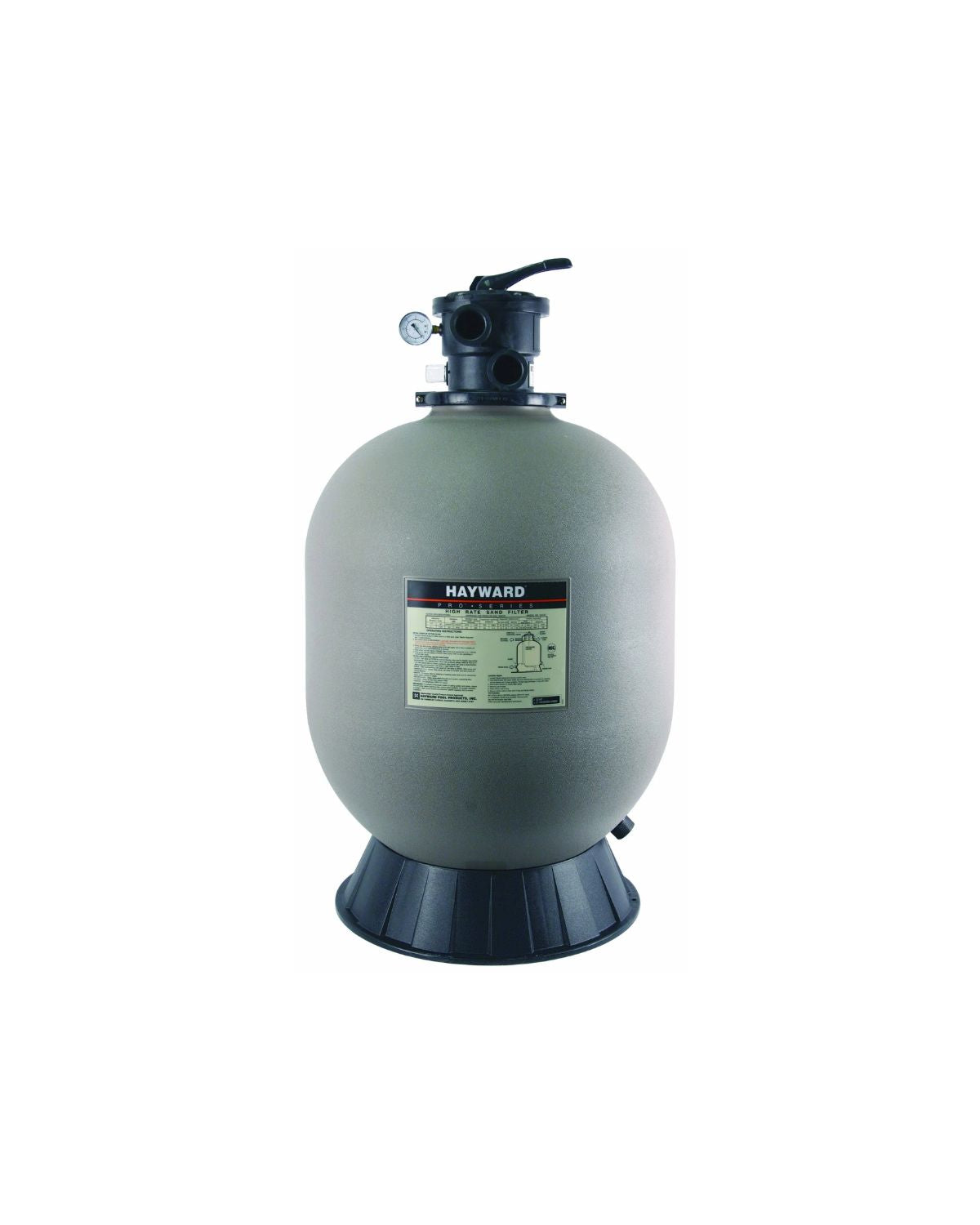

24" Pro Series Top Mount Sand Filter with 1.5" Valve

The Hayward ProSeries Top-Mount Sand Filter line is one of the most trusted and durable filtration systems for residential and commercial pools. Built from corrosion-proof polymeric materials, these filters are designed to withstand the toughest pool environments while delivering crystal-clear water with minimal maintenance.

Available in sizes from 16 inches to 36 inches with both 1.5-inch and 2-inch VariFlo™ multiport valves, the ProSeries filters offer versatile solutions for pools of all shapes and sizes. Each model is engineered with an integral top diffuser for even water distribution, self-cleaning laterals to extend filter life, and a quick-access clamp design for easy servicing.

With flow rates ranging from 35 GPM up to 141 GPM and sand capacities between 100 lbs. and 700 lbs., the ProSeries filters provide reliable turnover rates to keep water sparkling clean. Their large sand/water drain makes winterization or maintenance simple, while NSF/ANSI 50 certification guarantees professional-grade performance and safety.

Whether you’re upgrading an existing system or installing a new pool, the Hayward ProSeries Sand Filters deliver efficiency, durability, and superior water clarity backed by one of the most trusted names in the pool industry.

16″ (S166T, 1.5″ Valve)
Filtration Area: 1.40 sq. ft.
Flow Rate: 35 GPM
Sand Capacity: 100 lbs.
Dimensions: ~33.5″ H × 16.5″ W
Weight: ~22 lbs.
Valve: 1.5″ VariFlo™



18″ (S180T, 1.5″ Valve)
Filtration Area: 1.75 sq. ft.
Flow Rate: 44 GPM
Sand Capacity: 150 lbs.
Dimensions: ~35.5″ H × 18.5″ W
Weight: ~24 lbs.
Valve: 1.5″ VariFlo™



21″ (S210T, 1.5″ Valve)
Filtration Area: 2.20 sq. ft.
Flow Rate: 52 GPM
Sand Capacity: 200 lbs.
Dimensions: ~38″ H × 21.5″ W
Weight: ~30 lbs.
Valve: 1.5″ VariFlo™



22″ (S220T, 2″ Valve)
Filtration Area: 2.64 sq. ft.
Flow Rate: 56 GPM
Sand Capacity: 250 lbs.
Dimensions: ~39.5″ H × 22.5″ W
Weight: ~32 lbs.
Valve: 2″ VariFlo™



24″ (S244T, 1.5″ Valve)
Filtration Area: 3.14 sq. ft.
Flow Rate: 62 GPM
Sand Capacity: 300 lbs.
Dimensions: ~42″ H × 24.5″ W
Weight: ~46 lbs.
Valve: 1.5″ VariFlo™



24″ (S244T2, 2″ Valve)
Filtration Area: 3.14 sq. ft.
Flow Rate: 62 GPM
Sand Capacity: 300 lbs.
Dimensions: ~42″ H × 24.5″ W
Weight: ~47 lbs.
Valve: 2″ VariFlo™



27″ (S270T, 1.5″ Valve)
Filtration Area: 3.70 sq. ft.
Flow Rate: 74 GPM
Sand Capacity: 350 lbs.
Dimensions: ~43.5″ H × 27″ W
Weight: ~62 lbs.
Valve: 1.5″ VariFlo™



27″ (S270T2, 2″ Valve)
Filtration Area: 3.70 sq. ft.
Flow Rate: 74 GPM
Sand Capacity: 350 lbs.
Dimensions: ~43.5″ H × 27″ W
Weight: ~63 lbs.
Valve: 2″ VariFlo™



30″ (S310T2, 2″ Valve)
Filtration Area: 4.91 sq. ft.
Flow Rate: 98 GPM
Sand Capacity: 500 lbs.
Dimensions: ~49″ H × 30.5″ W
Weight: ~76 lbs.
Valve: 2″ VariFlo™



36″ (S360T2, 2″ Valve)
Filtration Area: 7.06 sq. ft.
Flow Rate: 141 GPM
Sand Capacity: 700 lbs.
Dimensions: ~55″ H × 36″ W
Weight: ~100 lbs.
Valve: 2″ VariFlo™

Residential: 1 - year parts and labor warranty Commercial: 1 - year parts and labor (warranty is provided by the manufacturer)

Sand Filter Installation Option Details: Covers replacement of an existing sand filter only. Does not include the price of the sand and/or gravel. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties.
