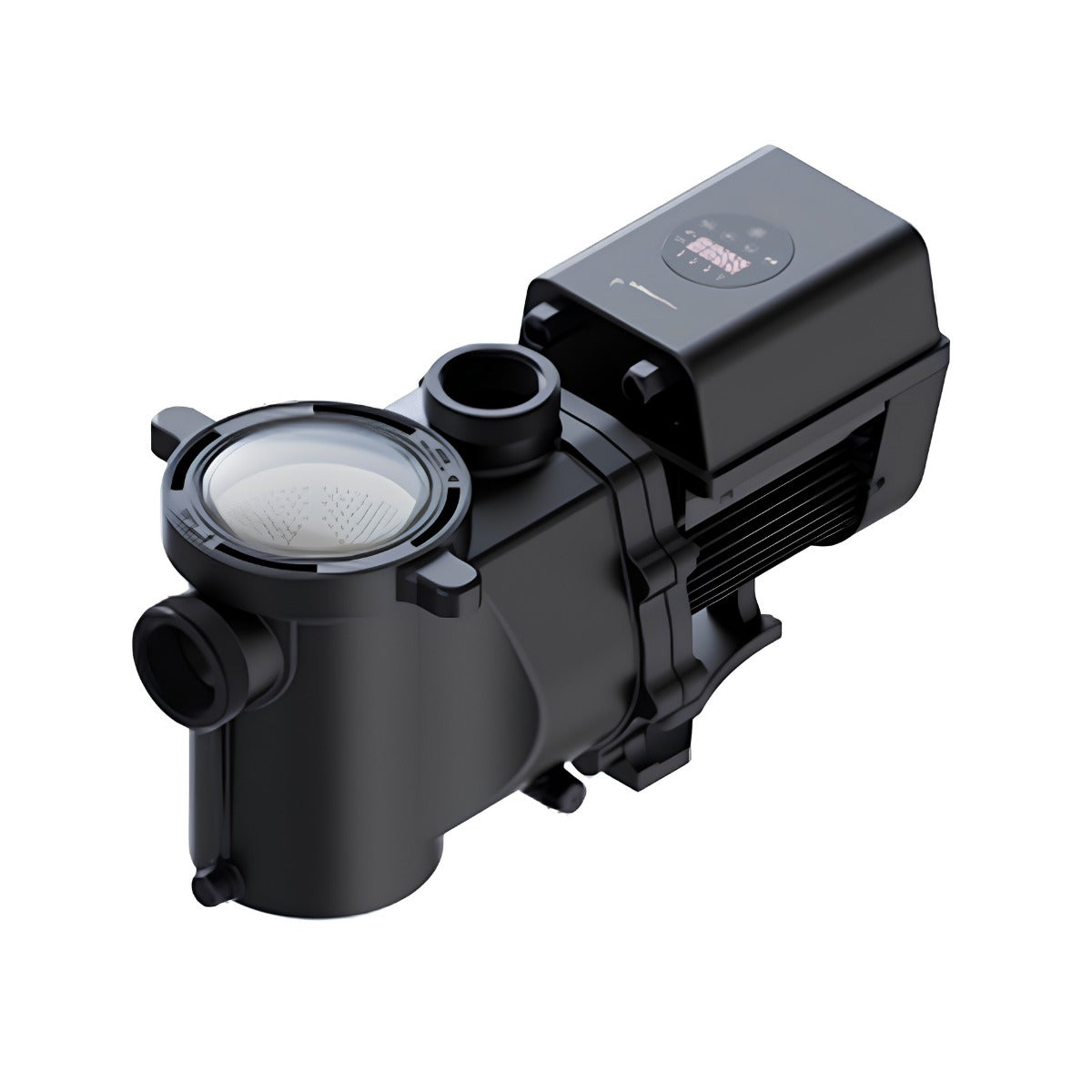

Madimack Inverflow 1.8HP F500iNA PUMP

Experience the pinnacle of pool circulation with the 1.8 HP Full-Inverter Variable Speed Pump. Featuring advanced motor speed control, this pump operates between 30% and 100% capacity to deliver unrivaled energy efficiency and whisper-quiet performance. With a high-flow capacity of 123 GPM and integrated active energy monitoring, the F500iNA ensures a longer lifespan and significant cost savings for large residential pools. Farewell the noise and high energy bills of traditional pumps and upgrade to professional-grade inverter technology.

Key Features & Points

  • InverMAC Technology: Enhanced inverter motor ensures efficient performance through optimized motor speed control across all RPM ranges.
  • DC Brushless Motor: Reduced operation noise combined with a lighter weight and longer-life span compared to traditional induction motors.
  • Dynamic Running Capacity: Manually set optimal speeds from 30% to 100% or utilize automatic operation for long-term electrical efficiency.
  • Active Energy Monitor: Onboard interface allows you to track, monitor, and manage operational efficiency in real-time.
  • Operational Versatility: Equipped with 4 daily timers to match specific pool usage requirements and filtration demands.
Specifications

Specifications

1.8 HP High-Efficiency Full-Inverter Pool Pump

The F500iNA represents the pinnacle of pool circulation, utilizing InverMAC technology for unrivaled energy efficiency and whisper-quiet performance. Operating between 30% and 100% capacity, this 1.8 HP pump is designed for large residential pools requiring high-flow performance and professional-grade reliability.

Model Number F500iNA
Horse Power 1.8 THP
Voltage / Freq 220V–250V / 50/60Hz
Running Amperage 6.3 Amps
Running Capacity 30% – 100%
Max Flow Rate 123 GPM
Max Head 65 Feet
Flow @ 26ft Head 118 GPM
Flow @ 33ft Head 96 GPM
Motor Type DC Brushless

Safety Warnings & Critical Care

Electrical Requirement: This unit is specifically rated for 220V–250V. Do NOT attempt to run this 1.8 HP model on a standard 110V/120V circuit as it will damage the inverter drive.
Flow Velocity: Ensure your pool plumbing, valves, and filters are rated for high-velocity water (123 GPM Max) to prevent excessive backpressure or system damage.
Professional Setup: Installation by a licensed professional is recommended to ensure proper grounding and electrical compliance for high-capacity inverter operation.
💡 Pro-Tips for Peak Efficiency
  • Automated Scheduling: Use the 4 built-in timers to run at lower speeds (40-50%) during off-peak hours to maximize savings while maintaining water clarity.
  • Active Energy Monitor: Track real-time efficiency on the onboard interface. A drop in energy consumption at the same RPM often indicates improved hydraulic efficiency after filter cleaning.
  • InverMAC Tech: Precision motor control ensures optimized performance across all RPM ranges for a longer motor lifespan and reduced noise.
  • Build Quality: Constructed with premium, corrosion-resistant hardware for long-term reliability in harsh pool environments.
Prop 65 Warning: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

User Disclaimer: Cost-saving figures are estimates based on standard utility rates and specific plumbing head pressure. Performance may vary based on local conditions and installation.
F500iNA

Madimack Inverflow 1.8HP F500iNA PUMP

$1,325.00
Shipping calculated at checkout.

MadiMack

Pickup available at Marathon FL

Usually ready in 24 hours

Secure checkout — all major payment methods accepted

Warranty

Click here to view warranty information
What installation covers

Pool Pump Installation Option Details: Covers replacement of an existing pool pump only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Electrical work includes connection to the existing electrical cable only — does not include rewiring or running a new cable. Service available in Miami-Dade, Broward, and Monroe counties. (Please note that installation costs are not included in the equipment price. Installation services are sold separately.)
