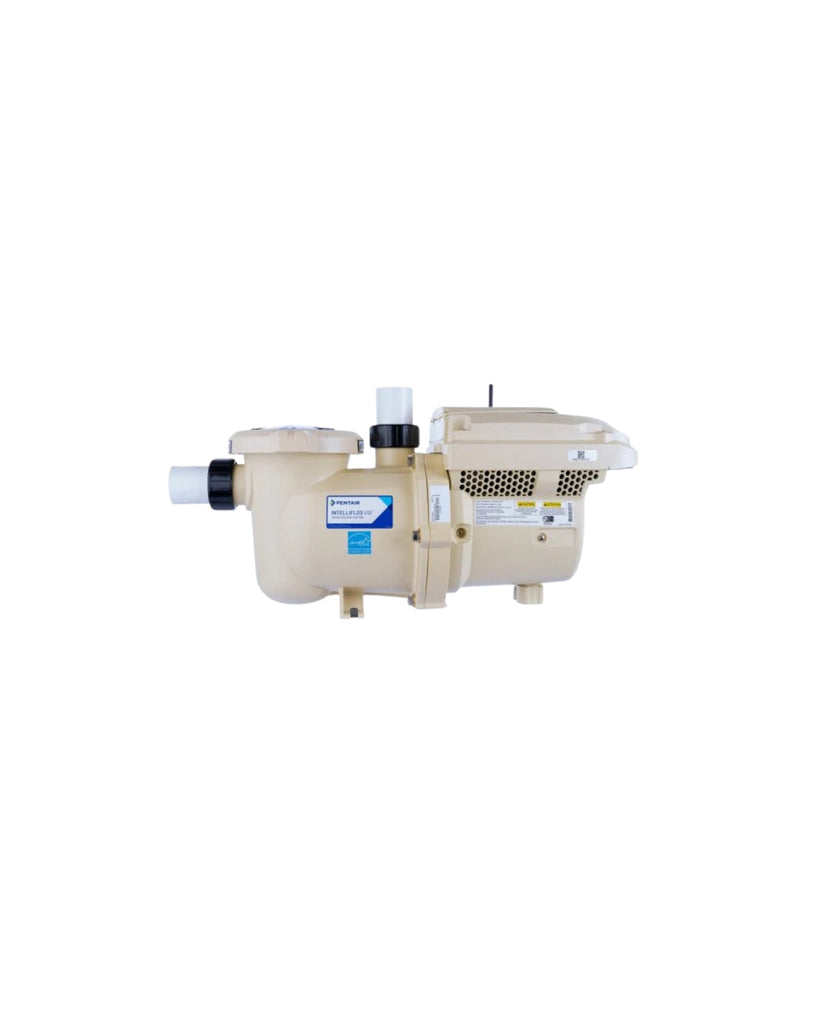

The Pentair IntelliFlo3® VSF 3.0 HP (011076) is a smart, high-performance pump featuring an integrated I/O Relay Board. This board allows the pump to act as an automation hub, controlling up to two external devices—like salt cells or lights—directly through the Pentair Home app. Equipped with Sensorless Flow technology, it automatically adjusts speed to maintain a constant GPM, ensuring peak efficiency and up to 90% energy savings.
Key Features
Integrated I/O Relay Board: Includes two high-voltage relays to power and schedule additional equipment without a separate control panel.
Sensorless Flow Control: Automatically detects and maintains target flow rates as system conditions (like filter debris) change.
3.0 HP Variable Speed: Delivers massive circulation for large pools while slashing electricity costs by up to 90%.
Wi-Fi & Bluetooth Control: Remote monitoring, scheduling, and real-time adjustments via smartphone.
Whisper-Quiet TEFC Motor: Advanced fan-cooled design provides industrial power with near-silent operation.
High-Flow Plumbing: Includes 2.5" or 3" unions to support maximum water movement and reduce pump strain
Pool Pump Installation Option Details: Covers replacement of an existing pool pump only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Electrical work includes connection to the existing electrical cable only — does not include rewiring or running a new cable. Service available in Miami-Dade, Broward, and Monroe counties.
Specifications
Specifications
IntelliFlo3® VSF 1.5 HP (011066)
Voltage115 / 208-230V
Horsepower1.5 THP
Max Flow Rate90 GPM
8-Hr Turnover43,200 Gallons
Max RPM3450 RPM
Port Size3" NPT
WEF9.4
IntelliFlo3® VSF 3.0 HP (011076)
Voltage208-230V
Horsepower3.0 THP
Max Flow Rate140 GPM
8-Hr Turnover67,200 Gallons
Amperage12.4 A
Port Size3" NPT
WEF7.1
Warnings and Disclaimers
California Prop 65: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. (www.p65warnings.ca.gov)
Pressure Hazard: High pressure system. Always open the manual air relief valve before starting the pump to prevent violent equipment separation.
Electrical Safety: Must be installed by a licensed professional. Improper wiring can lead to fatal shock or fire.
💡 Pro-Tips for Peak Performance
Flow Control: Use the VSF technology to maintain a constant flow rate as your filter gets dirty. This keeps your heater and salt cell working perfectly without manual adjustments.
Built-in Automation: These "Relay Board" models can control two additional pieces of equipment (like lights or a salt cell) directly via the Pentair Home App.
Whisper Quiet: Set your "Schedule" to run at lower RPMs for longer periods to enjoy 90% energy savings and near-silent operation.
