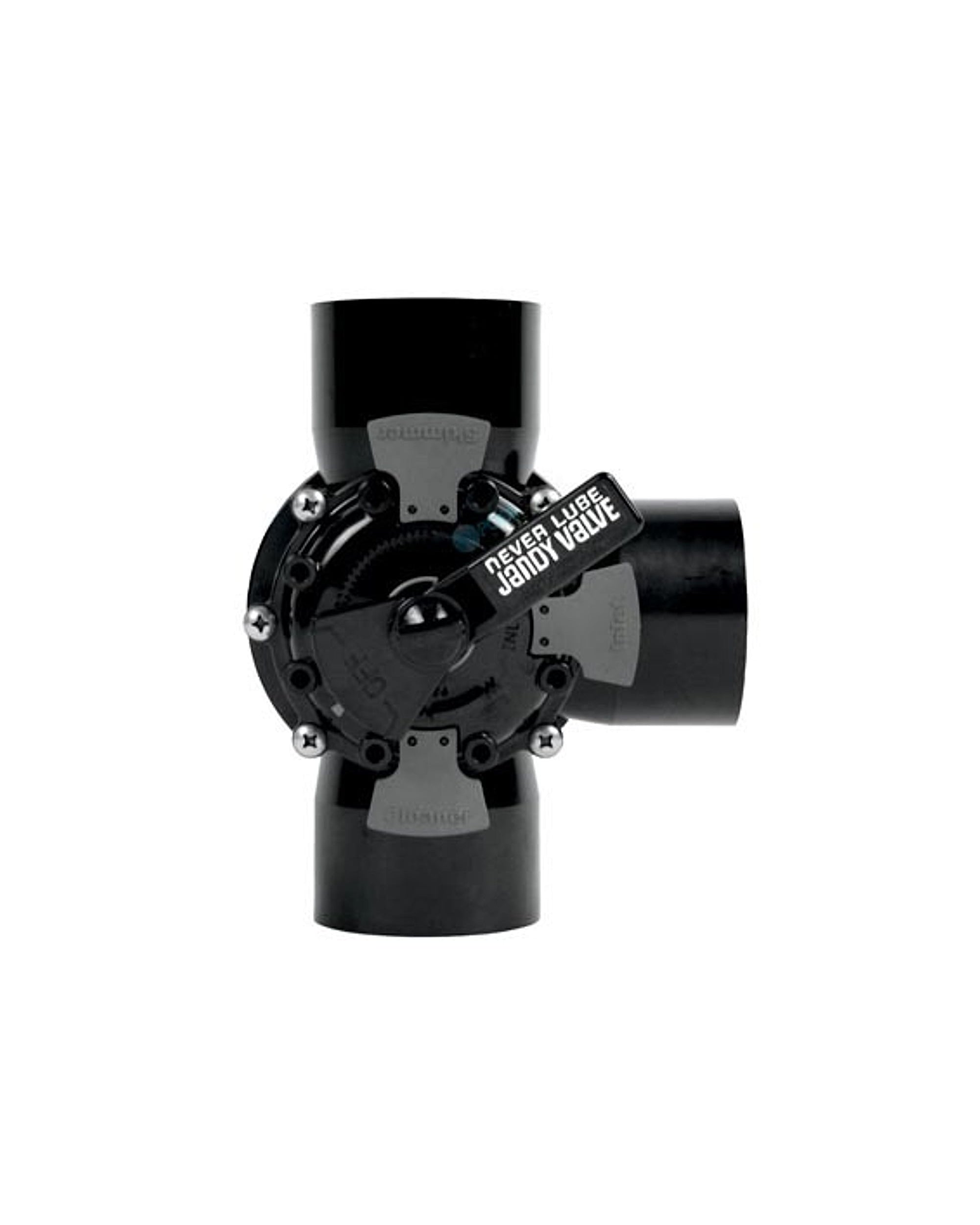

The Jandy Pro Series NeverLube 3-Port Diverter Valve (Model 4719) is a heavy-duty CPVC valve built for 2-1/2" to 3" pool and spa plumbing. Engineered to be completely maintenance-free, it resists extreme chemical and temperature swings without leaking, cracking, or breaking. At 2.5" x 3", it's one of the largest diverter valves on the market, handling flow rates up to 170 GPM with minimal head loss - ideal for spas and water features that demand high flow. It features a positive seal design and can be paired with a Jandy Valve Actuator for fully automated operation.
- Completely maintenance-free NeverLube design - never needs lubrication
- Durable CPVC construction resists chemicals, heat, and cracking
- Handles flow rates up to 170 GPM with minimal head loss
- Adjustable stop feature for precise flow control
- Compatible with Jandy Valve Actuators for automatic operation
Specifications
The Jandy Pro Series NeverLube 3-Port Valve is a maintenance-free CPVC diverter valve built for 2.5"-3" plumbing runs. Constructed to resist chemical and temperature extremes without leaking, cracking, or breaking, it uses a positive-seal internal diverter and can be paired with a Jandy Valve Actuator for automated operation.
Key Features & Performance
- Use the Recommended Cement: Weld-On 724 CPVC Gray cement is recommended when gluing the valve body to pipe fittings.
- Remove Internal Assembly Before Gluing: The internal valve assembly must be removed prior to gluing the valve body to pipe fittings, and no glue should enter the valve body beyond the ports.
- Diverter Use Only: This model is intended to be used as a diverter valve and should not be utilized as a backwash valve; follow all applicable local and national codes during installation.
- Confirm Inlet Orientation: Be sure "INLET" on the valve cover is over the incoming flow port to prevent personal injury or property damage.
- Use Index Tabs for Stop Positions: Movable index tabs can be placed along the index rib at the desired stop location, or on the storage ribs if full handle movement range is desired.
placeholder
Jandy
Jandy Pro Series NeverLube 3-Port Valve 2.5"-3" CPVC #4719
