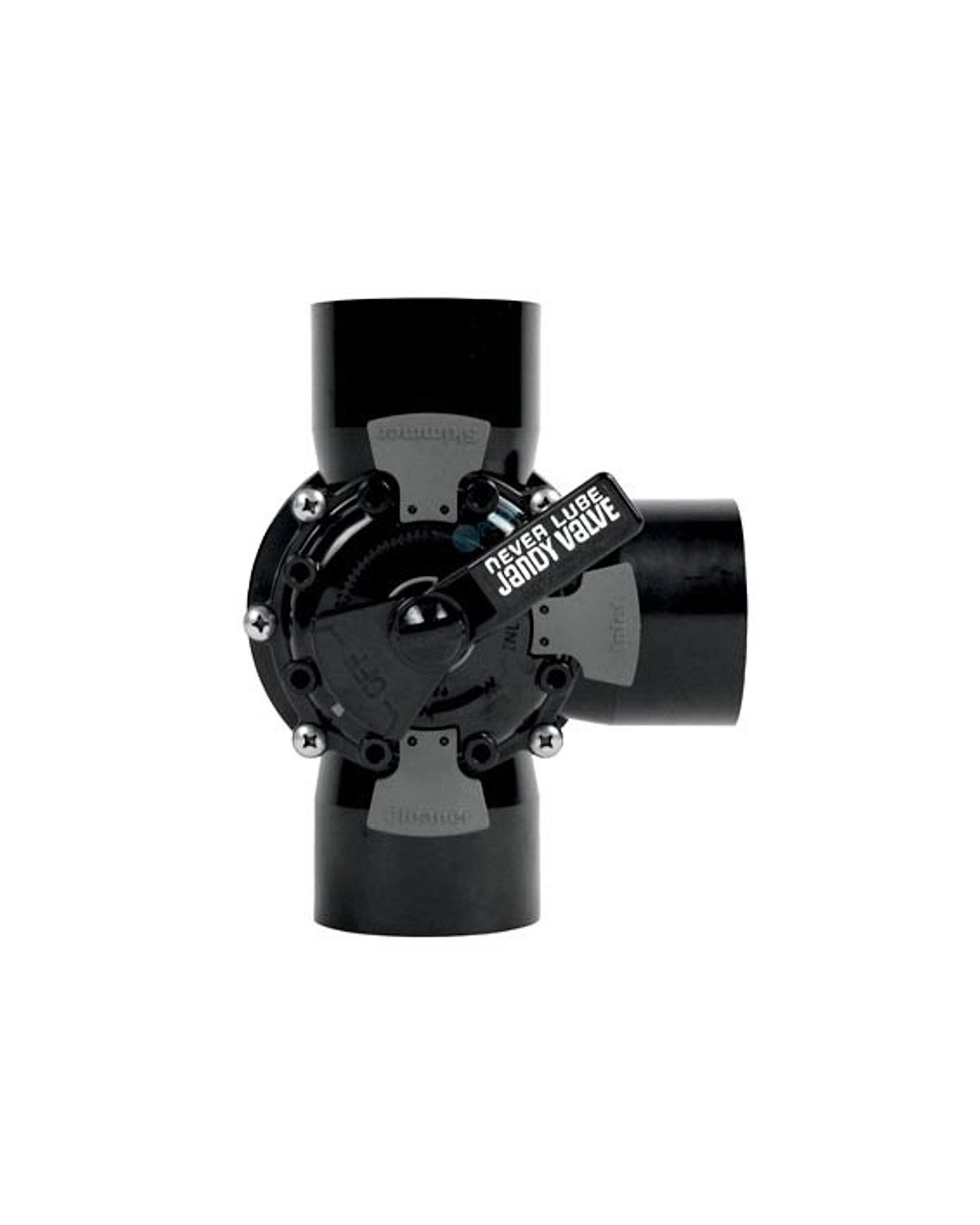

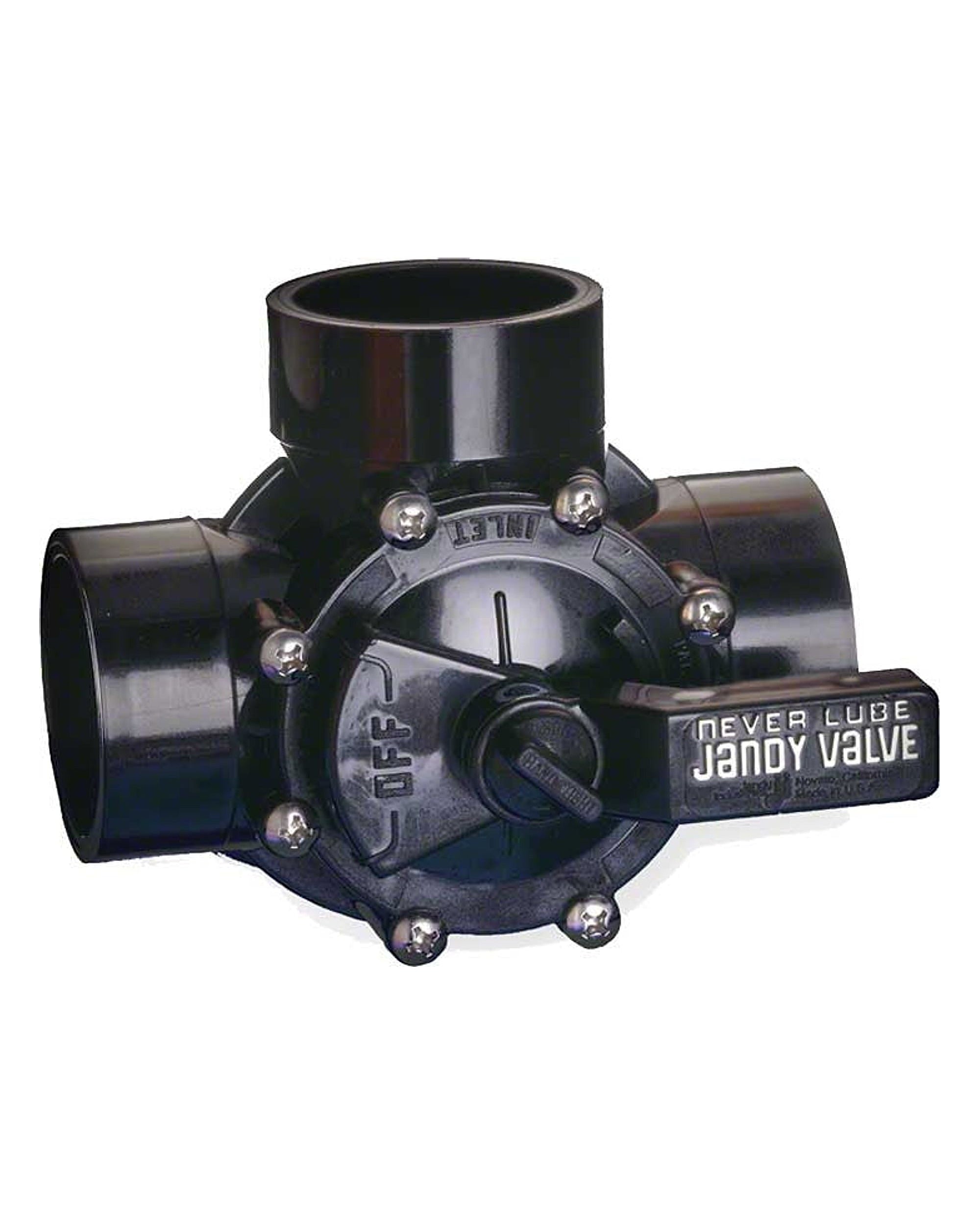

Jandy 4717 Never Lube 3-Port Diverter Valve, 2"-2.5" CPVC

The Jandy Pro Series 4717 Never Lube 3-Port Diverter Valve is a maintenance-free, positive-seal CPVC valve built to handle both 2" and 2-1/2" pipe with a single body. Engineered to withstand extreme chemical exposure and temperature swings, it never needs lubrication and is backed by a lifetime guarantee against leaking, cracking, or breaking. Its patented Never Lube technology and rugged CPVC construction make it a top choice for pool builders and service pros looking for a durable, low-maintenance diverter solution. The valve is also compatible with the Jandy Valve Actuator for automated operation.

Fits both 2" (slip fit) and 2-1/2" (with coupler) pipe in one valve body
Patented Never Lube technology - maintenance-free, never needs lubrication
Positive seal design handles flow rates up to 170 GPM with minimal head loss
Durable CPVC construction resists chemicals and temperature extremes; lifetime guarantee
Compatible with Jandy Valve Actuator for easy automation

Specifications

Jandy 4717 Never Lube 3-Port Diverter Valve, 2"-2.5" CPVC

The Jandy Pro Series 4717 Never Lube 3-Port Diverter Valve is a maintenance-free, positive-seal diverter valve built from durable CPVC to handle a single pool/spa plumbing line for both 2" and 2.5" pipe. Its Never Lube internal design and rugged construction are engineered to resist leaking, cracking, or breaking despite chemical exposure and temperature swings. It is compatible with the Jandy Valve Actuator for automated operation on Jandy automation systems.

Brand Jandy (Zodiac Pool Systems, Inc.)

Product Name Never Lube 3-Port Diverter Valve

Model / Part Number 4717

Distributor Product Number JDY-56-4055

Series Jandy Pro Series Never Lube

Product Type 3-Port Diverter Valve

Manufacturer Zodiac Pool Systems, Inc.

UPC Not Provided

Body Material CPVC

Pipe Size Compatibility 2" and 2-1/2" (single valve fits both)

Seal Type Positive Seal

Number of Ports 3-Port

2" Pipe Connection Slip fit directly into valve ports

2-1/2" Pipe Connection Joined using 2-1/2" pipe coupler, 45° or 90° fitting

Recommended Solvent Cement Weld-On 724 CPVC Gray

Actuator Compatibility Jandy Valve Actuator (for automatic operation)

Handle Features Lock Knob, OFF Position Indicator, Handle Stops

Maintenance Maintenance-free (Never Lube internal seal)

Weight / Dimensions Not Provided

Pressure Rating Verify with Manufacturer

Key Features & Performance

Maintenance-Free Never Lube Design: The internal diverter seal mechanism is completely maintenance-free, eliminating the need for periodic lubrication that traditional diverter valves require.

Durable CPVC Construction: Built from CPVC material designed to withstand extreme chemical and temperature fluctuations without leaking, cracking, or breaking.

Positive Seal Technology: Features a positive seal diverter assembly that helps ensure a tight, reliable shut-off at each port position.

Dual Pipe-Size Versatility: A single valve body accommodates both 2" and 2-1/2" pipe runs, simplifying plumbing layouts and reducing the number of unique parts needed on a job.

Automation Ready: Designed for use with the Jandy Valve Actuator, allowing this manually-operated diverter valve to be upgraded to automatic operation as part of a Jandy automation system.

Installation & Compatibility

Remove Internal Assembly Before Gluing: The internal valve assembly must be removed prior to gluing the valve body to pipe fittings, and care should be taken so no glue enters the valve body beyond the ports.
Use the Recommended Cement: Weld-On 724 CPVC Gray solvent cement is recommended for solvent-welding this valve into CPVC piping.
Confirm Inlet Orientation: When positioning the valve cover, be sure the word "INLET" is oriented over the incoming flow port before final assembly.
Operate the Lock Knob Properly: Loosen the lock knob to turn the handle, and turn the knob down finger-tight to secure the handle once the desired port position is set.
Professional Installation Required: This valve must be installed and serviced by a contractor licensed and qualified in pool equipment installation in jurisdictions where such requirements exist.
