Intermatic
PJB4175

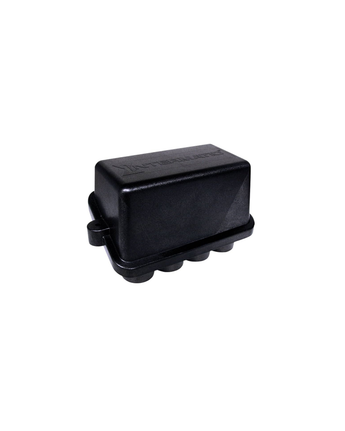

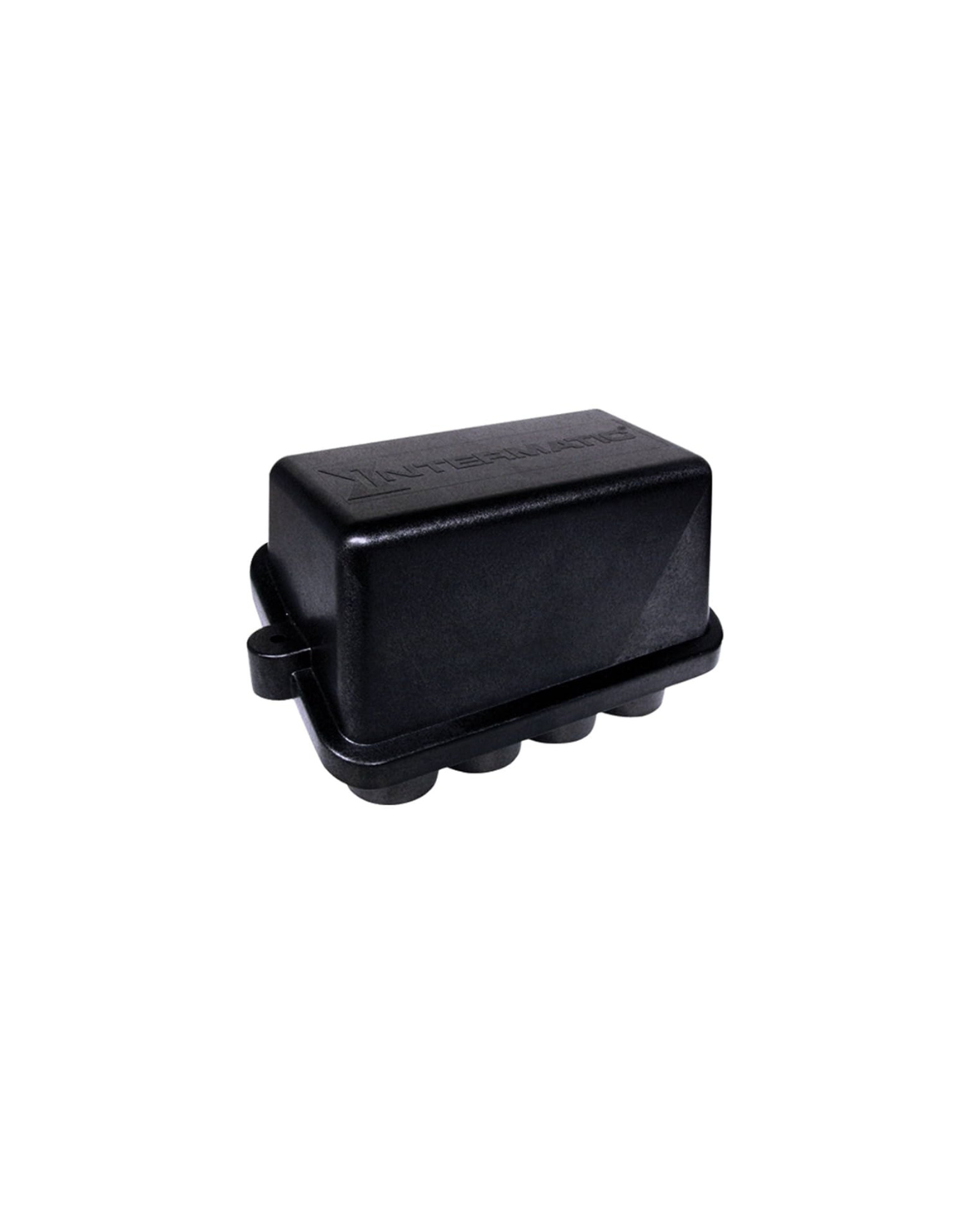

PJB 4 Light Connection Pool & Spa Junction Box
$65.00
/
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon, FL
Usually ready in 24 hours
Product Description
Ensure safe, watertight, and code-compliant electrical connections with the
Intermatic PJB4175 4-Light Pool and Spa Junction Box
(UPC: 078275094048). Specifically engineered for the demanding environments of swimming pools, spa combinations, and landscape lighting, this polymeric junction box provides a secure connection point for up to four separate light fixtures.
Key Features & Benefits:
- Multi-Fixture Capacity: Supports the wiring of up to four high- or low-voltage pool/spa or landscape lights in one central, organized location.
- Watertight Protection: Features a rugged, polymeric, non-corrosive construction with a watertight seal to protect electrical connections from moisture and chemical exposure.
- Versatile Conduit Compatibility: Designed to accommodate non-metallic conduits from 1/2" to 1", as well as flexible cords from #16-3 up to #10-3 in any combination.

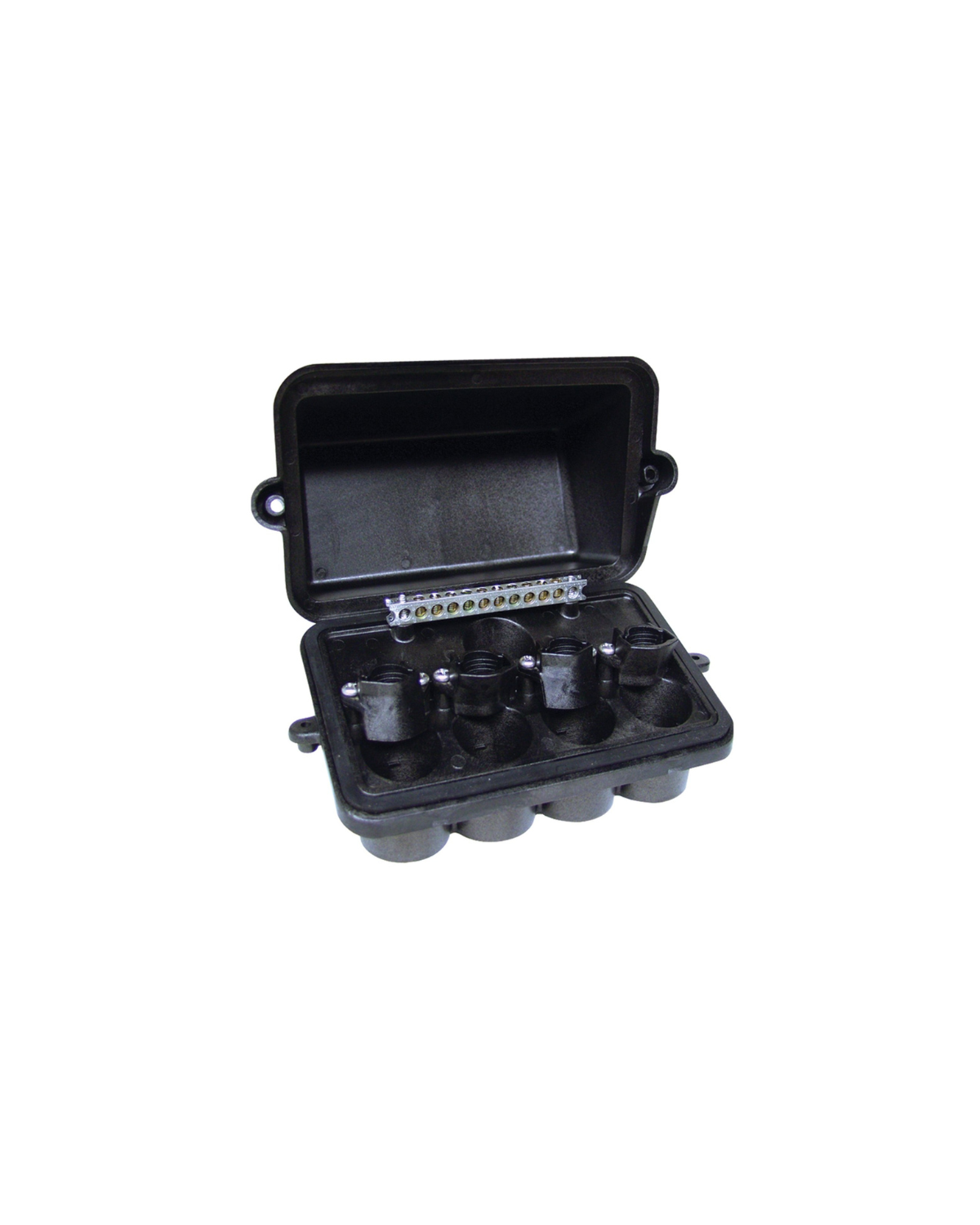

- Ease of Installation: The sloped platform design and easy-access ground bar streamline the wiring process, while the innovative strain relief requires only two screws to secure the lid to the base.
- Code Compliant: Fully complies with NEC Code 680.24 requirements for junction boxes and is UL1241 and CSA certified for maximum safety in wet environments.
- Bonding Security: Includes an external bonding lug for installations that require electrical bonding to the pool's equipotential grid.
Specifications
Product Type
4-Light Pool, Spa, and Landscape Junction Box
Conduit Entrances
(3) 1" Hubs, (1) 3/4" Hub (Base); Accepts 1/2" to 1" non-metallic conduit
Material(s)
Corrosion-resistant polymeric (plastic) with EPDM gasket
Internal Features
Integrated ground bar with 4 grounding points and 1 bonding lug
Dimensions
8.75" H x 5" W x 4.625" D
MPN / UPC
PJB4175 / 078275094048
Cord Capacity
Flexible cords from #16-3 to #10-3
Warnings and Disclaimers
- NEC Compliance: Must be installed in accordance with **NEC Code 680.24**. Failure to follow local electrical codes can result in fatal shock.
- Mounting Height: The junction box must be installed at least 4 inches above the ground or 8 inches above the maximum water level, whichever is higher.
- Outdoor Use: This unit is for **outdoor use only**. Do not install in indoor living spaces or below ground level.
- Prop 65 Warning: This product can expose you to chemicals including **Lead**, known to the State of California to cause cancer and birth defects.
Pro Tips
- Water Shedding Design: The internal "sloped platform" ensures that any accidental water entry or condensation drains away from wire connections.
- Cord Seals: Ensure the [internal strain relief](https://www.intermatic.com) is properly tightened around the light cords to maintain a watertight seal.
- Unused Hubs: Always use the included **watertight plugs** for any conduit hubs that are not in use to prevent insect or moisture entry.
- Bracket Support: For mounting on walls or posts, look for the [Intermatic PA114 Bracket](https://www.gordonelectricsupply.com) to ensure a secure, code-compliant installation.
