Jandy

JRT2000R

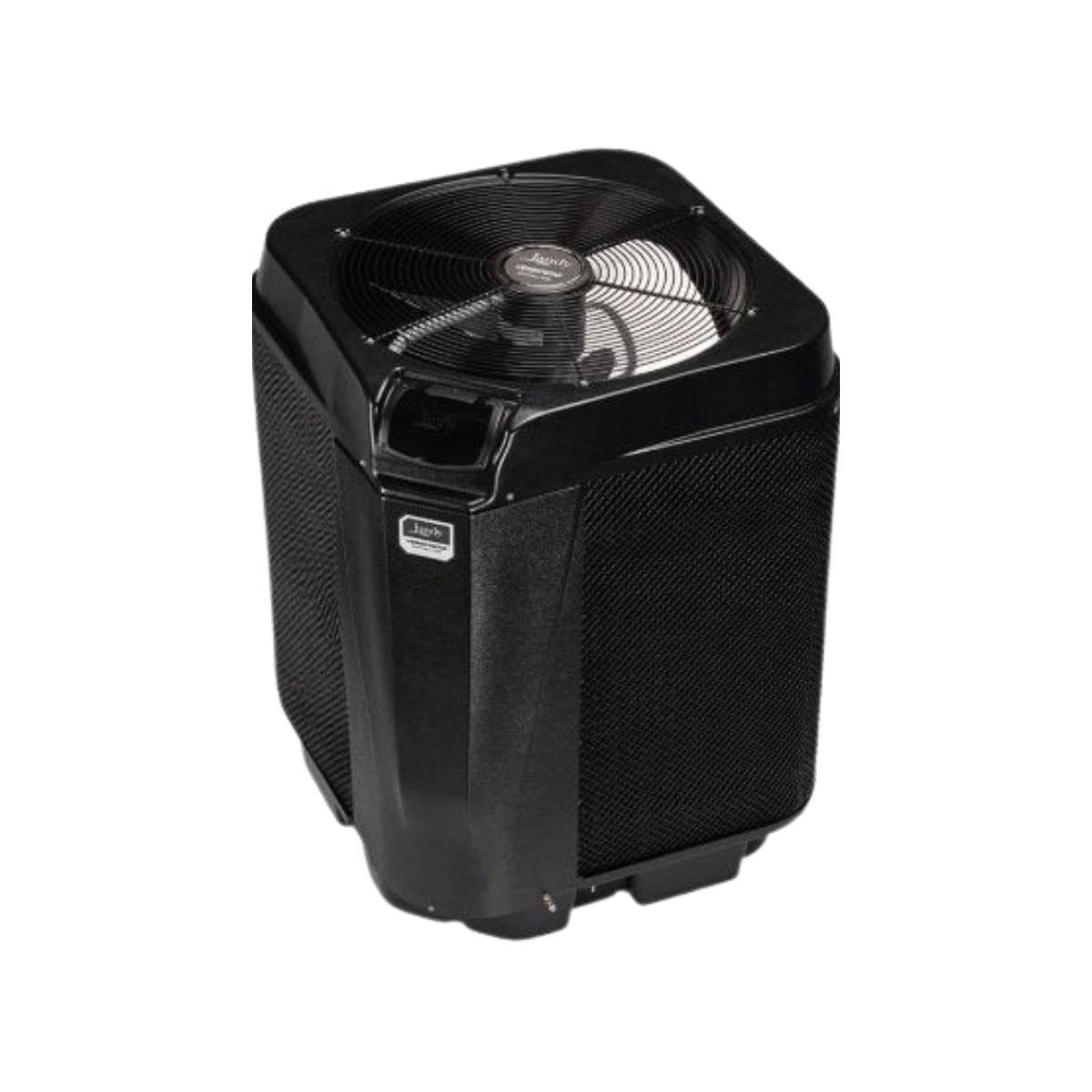

Jandy VersaTemp Heat/Chill Pump 230V

$4,150.00
Shipping calculated at checkout.

Available In-Store Only

BTU Size : 103K BTU
Fast shipping
Ships in 2 to 3 business days

Pickup available at Marathon, FL

Usually ready in 24 hours

View Specifications
Product Description

The Jandy VersaTemp™ Variable Speed Heat/Chill Pump (103K, 116K, & 130K BTU) is the ultimate all-season climate control solution. Featuring advanced inverter technology, this high-efficiency unit both heats and chills your pool water to maintain the perfect temperature year-round. Operating with whisper-quiet precision, it slashes energy costs compared to traditional heat pumps. With a 100% titanium heat exchanger and integrated iAquaLink® support, the VersaTemp offers durable, smart-home ready performance for any luxury backyard.

Key Features

  • Heat & Chill Modes: Dual-functionality to warm your pool in winter and refreshingly cool it during peak summer.
  • Variable Speed Inverter: Automatically adjusts performance to maximize energy savings and temperature stability.
  • Three Power Options: Available in 103K, 116K, and 130K BTU models to suit various pool volumes.
  • iAquaLink® Integrated: Remote smartphone control allows for instant temperature adjustments from anywhere.
  • Titanium Heat Exchanger: Lifetime warranty against corrosion; ideal for salt-water and chemical-heavy pools.
  • Whisper-Quiet Operation: Sound-dampening technology and variable speed fans ensure a peaceful backyard environment.

Warranty
What installation covers

Heat Pump Installation Option Details: Covers replacement of an existing heat pump only. Includes up to 20 feet of pipe, 8 fittings, one three-way valve, and one check valve for plumbing connections. Includes electrical connection of no more than 5 feet to the unit. The electrical panel used to feed the heat pump must have sufficient capacity for the unit’s amp draw. There must be a clear passway or walkway from the installation site to the driveway where the technician’s vehicle is parked. Price includes removal of the old unit, if needed. Service available in Miami-Dade, Broward, and Monroe counties.

BTU Size
Specifications

Specifications

Jandy® VersaTemp™ Heat/Chill Pump Advanced temperature control featuring a 100% Titanium Heat Exchanger and dual thermostats. These high-efficiency units provide reliable heating and chilling for mid-to-large pools while maintaining a compact installation footprint.
VersaTemp 103K P/N: JRT2000
Heating Capacity103,000 BTU
Voltage / Phase230V / 1 Phase
Breaker Size50 Amp
Min/Max Flow Rate20 / 70 GPM
Dimensions (L x W x H)33" x 33" x 39"
Unit Weight225 lbs
VersaTemp 116K P/N: JRT2500
Heating Capacity116,000 BTU
Voltage / Phase230V / 1 Phase
Breaker Size50 Amp
Min/Max Flow Rate20 / 70 GPM
Dimensions (L x W x H)33" x 33" x 39"
Unit Weight238 lbs
VersaTemp 130K P/N: JRT3000
Heating Capacity130,000 BTU
Voltage / Phase230V / 1 Phase
Breaker Size50 Amp
Min/Max Flow Rate20 / 70 GPM
Dimensions (L x W x H)33" x 33" x 39"
Unit Weight245 lbs

Safety Warnings & Operation

Shock Hazard: Requires a dedicated 230V circuit. All wiring must be performed by a licensed electrician. Disconnect power before servicing internal components.
Clearance Requirements: Units require at least 5 feet of vertical clearance and 3 feet of clearance on all sides. Obstructions will cause performance degradation and premature compressor wear.
Winterization: In freezing climates, you must drain all water from the heat exchanger to prevent internal damage. Ruptured tubes due to freezing are not covered by warranty.
Chemical Storage: Do not store pool acid or chlorine within 10 feet of the unit. Corrosive vapors will damage the fan motor and electronic motherboard.
💡 Pro-Tips for Peak Performance
  • Optimal Flow: Maintain water flow within the 20-70 GPM range. Using an [External Bypass Valve](https://www.jandy.com) is recommended for pumps that exceed 70 GPM to prevent erosion of the titanium tubes.
  • Condensation: Heat pumps produce significant condensation (up to several gallons per hour). This is normal. Ensure the equipment pad is level to allow for proper drainage.
  • Retention: Using a solar cover at night can retain up to 70% of the heat generated, significantly reducing monthly energy costs.
  • Cleaning: Gently rinse the evaporator coil with a garden hose annually to remove dust and debris. Do not use high-pressure washers as they will flatten the delicate aluminum fins.
Manufacturer Disclaimer: Information sourced from official Jandy technical documentation. Professional installation is mandatory to validate the manufacturer's warranty.

User Disclaimer: This document is for informational purposes only. The user assumes all risk for improper electrical wiring or installation. Always consult a licensed pool professional.
