Aquacomfort Water Group

ACT-1100

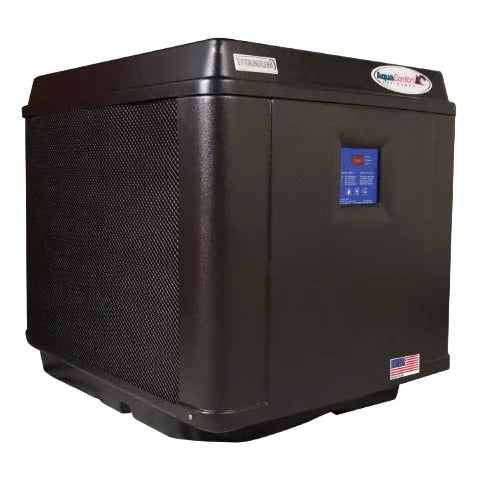

Aqua Comfort Signature XL Heat Pumps

$2,800.00
Shipping calculated at checkout.
5.0
BTU Size:: 93K BTU
Heat/Cool:: Heat Only
Fast shipping
Ships in 2 to 3 business days

Pickup available at Online Only

Usually ready in 24 hours

View Specifications
Product Description

The AquaComfort ACT series offers a comprehensive range of pool heat pumps, from compact residential units to high-capacity dual-purpose systems. All models are engineered to operate at air temperatures as low as 40°F, delivering up to 40% more heat during cooler months than standard competitors.

Every unit in the ACT lineup features several key AquaComfort innovations:

  • TurboGuard Titanium Heat Exchanger: Virtually immune to damage from unbalanced water chemistry, ensuring long-term durability and efficiency.
  • Energy Efficiency: Operating costs are typically 70% less than natural gas and 80% less than propane heaters.
  • Scroll Compressors: All models utilize scroll technology for quieter, more reliable operation.
  • State-of-the-Art Controls: Features dual thermostats to manage both pool and spa temperatures simultaneously.



Warranty
What installation covers

Heat Pump Installation Option Details: Covers replacement of an existing heat pump only. Includes up to 20 feet of pipe, 8 fittings, one three-way valve, and one check valve for plumbing connections. Includes electrical connection of no more than 5 feet to the unit. The electrical panel used to feed the heat pump must have sufficient capacity for the unit’s amp draw. There must be a clear passway or walkway from the installation site to the driveway where the technician’s vehicle is parked. Price includes removal of the old unit, if needed. Service available in Miami-Dade, Broward, and Monroe counties.

BTU Size:
Heat/Cool:
Specifications

Specifications

AquaComfort ACT-750 Pool Heat Pump

Engineered for low-temperature performance, ACT heat pumps provide 30-40% more heat in air temperatures as low as 40°F. Featuring TurboGuard Titanium Heat Exchanger technology, these units are highly resistant to chemical damage and provide eco-friendly heating and cooling.

Performance & Capacity
Heating Capacity48k–55k BTUs
COP (Efficiency)5.6–6.0
Water Flow Range15–50 GPM
Recommended VolumeUp to 15,000 Gal
Physical & Electrical
Weight170 lbs
Min. Breaker Size20A
Electrical Supply230V / 60Hz / 1PH
Dimensions (LxWxH)34" x 34" x 30"
Geographic Sizing Guide (BTU per Gallon)

Use these industry baselines to ensure your pool reaches temperature based on your specific goals:

Summer Heating Only4 BTUs per Gallon
Extended Season (Spring/Fall)5 BTUs per Gallon
Northern Climates / All-Year6+ BTUs per Gallon

Ex: A 20,000-gallon pool in Spring/Fall requires ~100,000 BTUs (ACT-1100+).

⚠️ Critical Installation & Safety Warnings

ELECTRICAL SHOCK HAZARD: Disconnect all power before service. Licensed professional installation is required to maintain the lifetime titanium warranty.
AIRFLOW CLEARANCE: Maintain 24" clearance on the service side, 18" on intake sides, and 48" overhead. Restricted airflow will cause unit failure.
Required Service Clearances
⬅️ 18" Intake
48" OVERHEAD UNIT
24" Service ➡️
WINTERIZATION: In freezing climates, you must drain all water. Expanding ice will cause catastrophic internal pipe damage.
💡 Professional Tips for Success
  • Sizing: Always better to oversize. Larger units reach temperature faster and cycle off sooner, reducing wear.
  • Solar Covers: Using a cover can reduce heat loss by up to 50%, significantly cutting energy costs.
  • Coil Care: Gently rinse the evaporator coil with a hose to remove debris. Never use high pressure.
PROCEED WITH CAUTION: High-voltage equipment requires precision installation. Professional installation is highly recommended to validate warranties.
CALIFORNIA PROPOSITION 65 WARNING: This product may contain chemicals known to cause cancer and birth defects. Wash hands after handling.
WARRANTY & DATA: Ratings based on AHRI Standard 1160 (80/80/80). Titanium heat exchangers feature a limited lifetime warranty. Data sourced from [AquaComfort Solutions](https://www.aquacomfort.com).
