Pentair

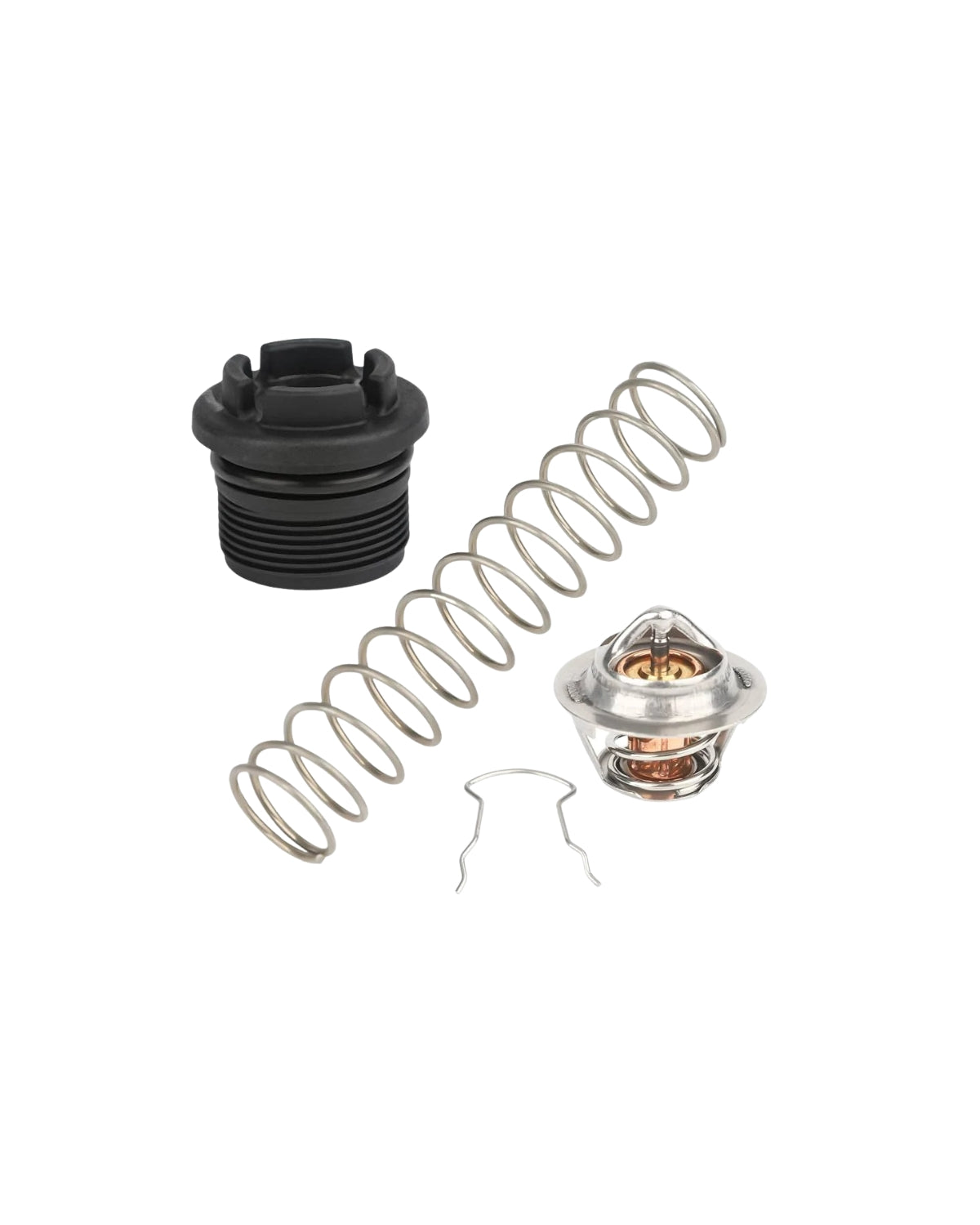

Thermal Regulator Kit for Max-E-Therm and MasterTemp Heater Water System
Pickup available at Marathon, FL
Usually ready in 24 hours
Product Description
Restore peak efficiency to your pool heating system with the Pentair Thermal Regulator Kit (77707-0010). This genuine replacement part is a critical safety and performance component designed specifically for MasterTemp and Sta-Rite Max-E-Therm gas heaters. The thermal regulator acts as a thermostat for your heater’s internal water flow, ensuring that water only enters the heat exchanger once it has reached the optimal temperature. By preventing cold water from circulating too early, this kit eliminates "condensation soot" and thermal shock, significantly extending the lifespan of your heat exchanger and maintaining consistent, comfortable pool temperatures.
Key Features
- Precision Temperature Control: Regulates internal water flow to prevent condensation and protect the heat exchanger from corrosive low-temperature operation.
- Genuine Pentair Replacement: Engineered to the exact manufacturer specifications for a perfect fit and reliable performance in MasterTemp and Max-E-Therm models.
- Corrosion-Resistant Materials: Built with high-grade, durable components designed to withstand constant exposure to heat and pool chemicals.
- Enhanced Heater Efficiency: Optimizes the heating cycle, ensuring your unit reaches desired temperatures faster while consuming less energy.
- Prevents Heat Exchanger Damage: Actively guards against the "pitting" and soot buildup that occur when heaters run too cold, saving you from expensive future repairs.
- Simple Drop-In Installation: Designed for straightforward replacement within the manifold, allowing pool professionals or DIY homeowners to restore heater function quickly.
Specifications
Warnings and Disclaimers
- Scalding Hazard: Always turn off the heater and the pump, and allow the system to cool completely before attempting to open the manifold. Pressure or hot water can cause severe burns.
- Thermal Shock Risk: Running a heater with a failed or bypassed thermal regulator can cause the heat exchanger to sweat, leading to massive soot buildup and fire hazards.
- Manifold Integrity: When replacing the regulator, inspect the manifold cap O-ring. A damaged O-ring can cause leaks that damage the heater's electrical ignition components.
- Genuine Parts Only: Using non-genuine regulators may lead to incorrect opening temperatures, which can void the Pentair manufacturer warranty and damage the exchanger.
- The Rattling Clue: If your heater sounds like it has "rocks" inside it or makes a loud banging noise (knocking) when it starts, your thermal regulator is likely stuck closed and needs immediate replacement.
- Orientation Matters: When sliding the new regulator into the manifold, ensure the spring side is facing the correct direction as shown in your specific model's manual to ensure proper bypass flow.
- Annual Inspection: Make checking the thermal regulator part of your annual heater tune-up. These parts are constantly exposed to high heat and chemical fluctuations, making them prone to wear over 3-5 years.
- Don't Forget the Spring: The kit includes a new spring for a reason. Even if your old spring looks fine, its tension has likely changed over thousands of heat cycles—always install the new one.
