E-Z WELD
410137

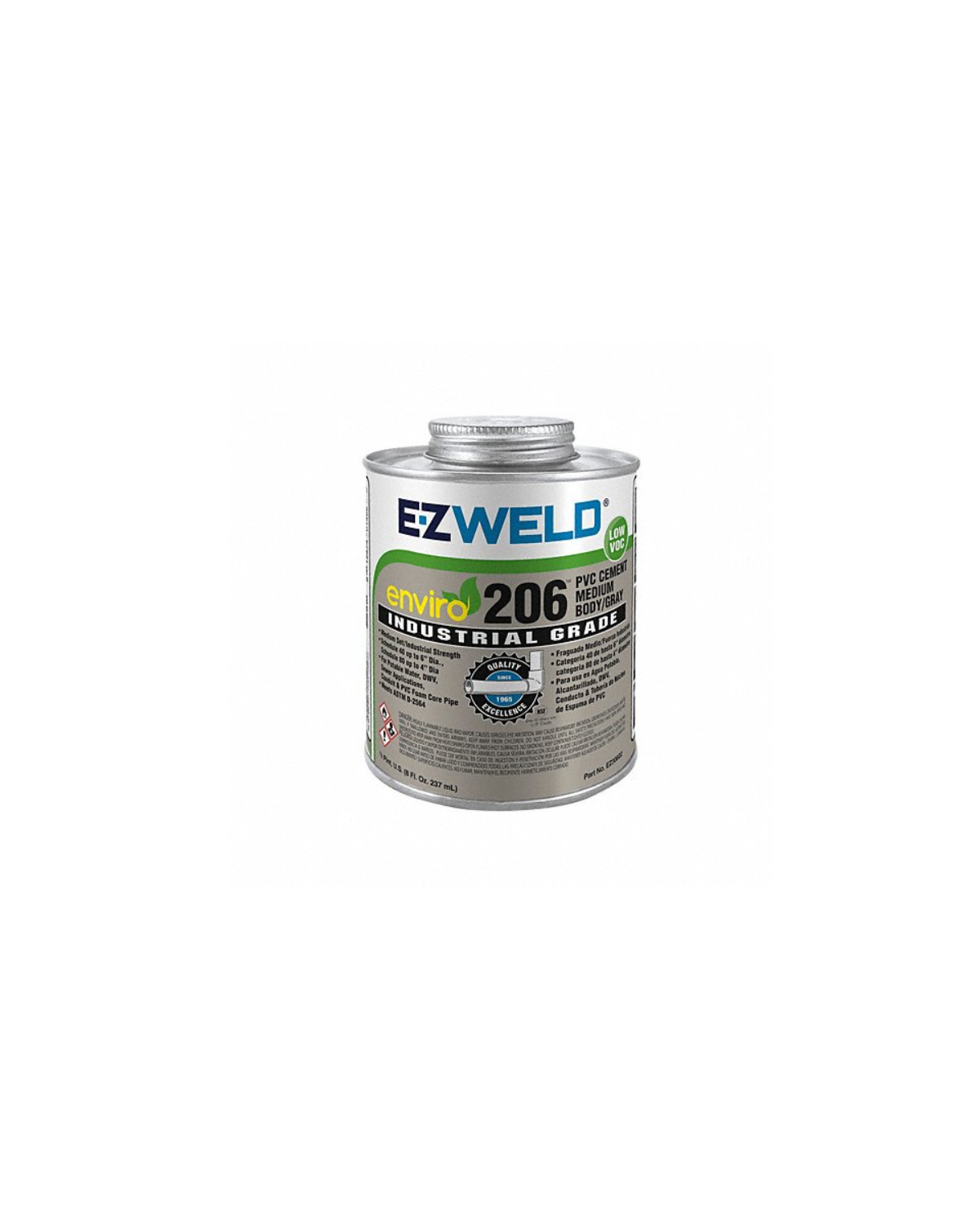

PVC Cement Medium Body/Gray 1qt
Shipping calculated at checkout.
Fast shipping
Ships in 2 to 3 business days
Pickup available at Marathon, FL
Usually ready in 24 hours
Product Description
This gray, medium-bodied PVC cement is a high-strength solvent adhesive designed for joining PVC piping used in a variety of applications, including pressure water systems (potable water, irrigation), conduit, and DWV (drain, waste, and vent) systems. It is engineered to provide a strong, reliable, and permanent bond.
The medium body allows for good gap-filling properties while providing sufficient working time during installation.
Key Features:
- Color & Consistency: Gray, medium-bodied consistency.
- Application: Suitable for Schedule 40 and Schedule 80 PVC pipe and fittings up to 6 inches in diameter (in some cases up to 8 inches for non-pressure applications).
- Standards & Certifications:
- Meets ASTM D2564 specifications.
- NSF/ANSI 61 certified for use in potable (drinking) water applications.
- Meets UPC/IAPMO listing requirements.
- Primer Recommendation: Recommended for use with a compatible PVC/CPVC primer (such as E-Z Weld Clear Primer 211 or a purple primer) for optimal performance and code compliance.
- Convenience: Includes an in-lid dauber for easy application.
Specifications
Product Name
E-Z Weld 206 PVC Cement Medium Body/Gray (1 Quart)
Manufacturer
E-Z Weld (Marvin Bochner, Inc.)
Part Number / SKU
410137 (or EZ20604N)
UPC / GTIN
812574101379
Body / Viscosity
Medium Body (Good Gap Filling)
Color
Gray
Max Pipe Size (Sch 40)
Up to 6 inches (interference fit)
Application Temperature
32°F to 110°F (0°C to 43°C)
Installation & Safety Warnings
- Highly Flammable: Contains Acetone and Tetrahydrofuran (THF). Keep away from sparks and open flames. Vapors can ignite.
- Ventilation Required: Use only outdoors or in a heavily ventilated area. Avoid breathing vapors.
- Primer Recommended: The use of an appropriate primer (E-Z Weld Clear or Purple) is highly recommended for all applications, and required for pipes over 2 inches in diameter.
- Curing: Allow adequate cure time based on pipe size and temperature before pressure testing the system. Refer to the manufacturer's official cure schedule chart.
Pro Tips
- Clean First: Always clean the pipe surface with a dry rag to remove dirt and debris before applying primer and cement.
- Even Coat: Apply a heavy, even coat of cement to the pipe end and a thinner coat inside the fitting socket.
- Twist and Hold: Insert the pipe into the fitting socket and give it a slight twist (1/4 turn) to distribute the cement evenly. Hold the joint firmly for 30 seconds to prevent the pipe from pushing out (the "push out" phenomenon).
- Pressure Testing: For pressure systems, wait at least 6 hours at standard temperatures (above 60°F) before filling the line with water and pressure testing.
