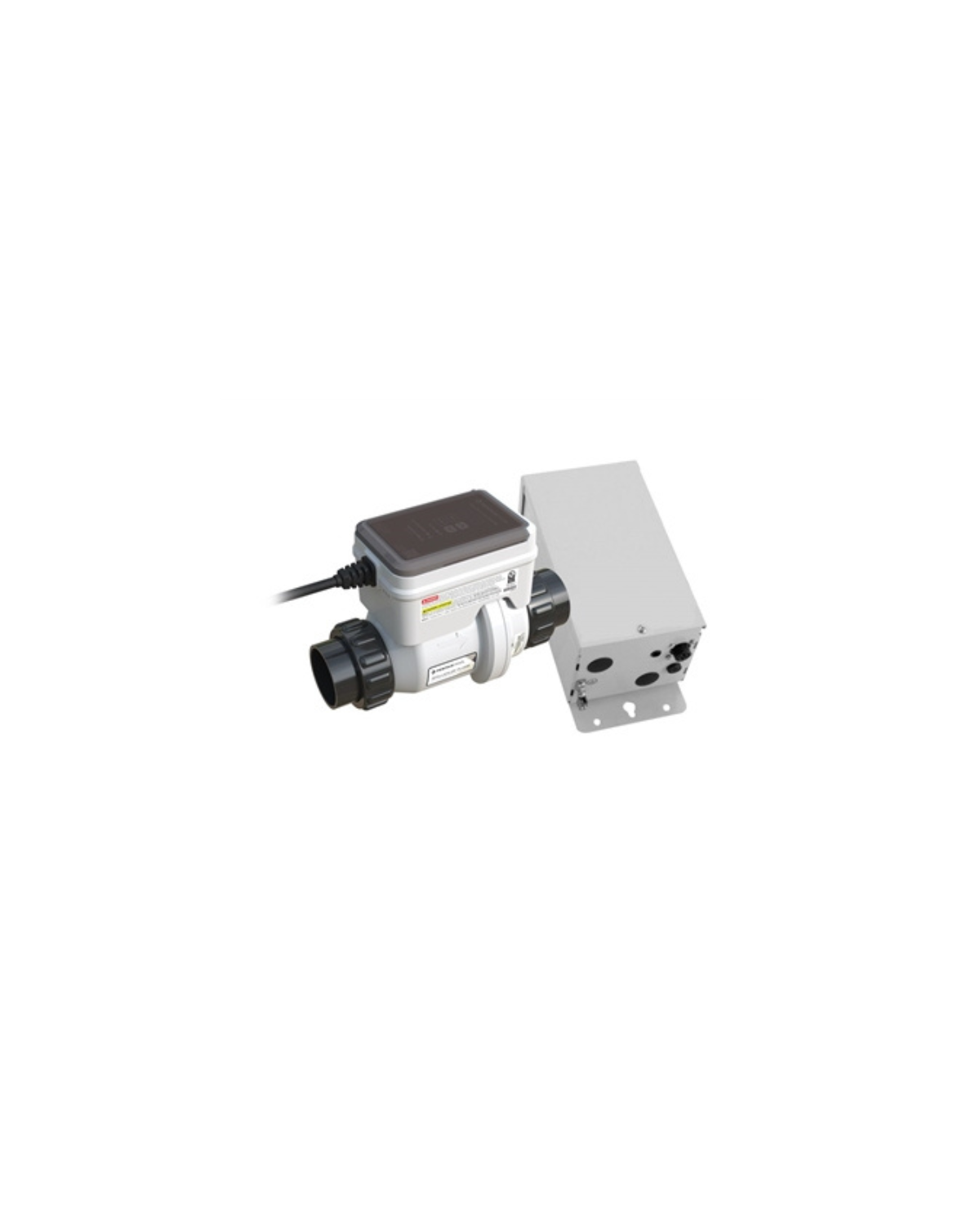

IntelliChlor Plus30 Salt Chlorine Generator PWR CTR Bundle
Pickup available at Marathon FL
Usually ready in 24 hours
Product Description
The Pentair IntelliChlor Plus30 Salt Chlorine Generator Bundle (EC-523733) is a complete sanitation system designed for residential pools up to 30,000 gallons. Unlike the "Cell Only" version, this bundle includes the PC100 Power Center, which is the required transformer for powering and controlling the unit.
Key Features & Bundle Contents
- Complete System: Includes the IntelliChlor Plus30 Cell (523730) and the PC100 Power Center (EC-520556).
- Direct Replacement: A "drop-in" upgrade for first-generation IntelliChlor and iChlor 30 systems, requiring no additional plumbing.
- High Output: Produces up to 1.10 lbs of pure chlorine per 24 hours at 100% output.
- Modular Serviceability: The redesigned 3-in-1 sensor module (flow, temperature, and conductivity) can be replaced individually, reducing maintenance time by over 50%.
- High Accuracy: Features a redesigned conductivity sensor that is 98% as accurate as laboratory-grade salinity meters.
- Smart Automation: Fully integrates with Pentair IntelliCenter® and EasyTouch® systems for remote monitoring and control.
Warranty
What installation covers
Salt System Installation Option Details: Covers replacement of an existing salt system only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Service available in Miami-Dade, Broward, and Monroe counties. (Please note that installation costs are not included in the equipment price. Installation services are sold separately.)
Specifications
A complete sanitation system designed for residential pools up to 30,000 gallons. This bundle includes both the IntelliChlor Plus30 Cell and the required PC100 Power Center, making it the ideal "All-in-One" choice for new pool builds or complete system replacements.
| Light Status | Meaning | Action Required |
|---|---|---|
| Solid Green | Good Salt Level | System is operating normally. |
| Flashing Red | Low Salt (< 2,600 ppm) | Unit shutdown to protect cell. Add salt. |
| Flashing Green | High Salt (> 4,500 ppm) | Dilute pool water with fresh water. |
| Red Flow Light | No / Low Flow | Check for dirty filter or closed valves. |
⚠️ Critical Safety & Installation Warnings
- Boost Mode: Press the Boost button for 100% output for 24 hours—ideal for restoring levels after heavy rain or pool parties.
- Diagnostic Secret: Hold "More" for 5 seconds to view cell life usage percentage (e.g., 20% light = 20% wear) and current water temperature.
- Scale Prevention: Check the cell every 3 months for calcium buildup. Modular sensor replacement can reduce maintenance time by over 50%.
- Wiring: Install the Power Center at least 5 feet from the pool wall on a dedicated circuit. Professional installation is highly recommended.
