Jandy

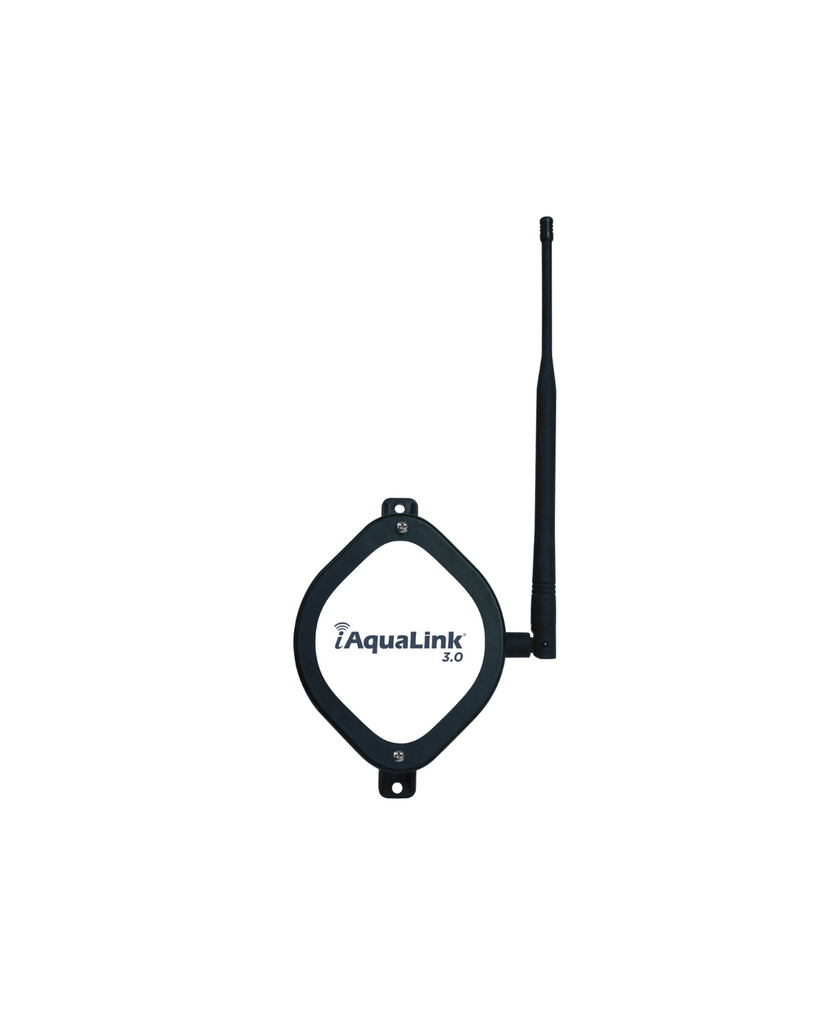

AquaLink 3.0 Web Connect Interface Device Antenna Only
Available In-Store Only
Pickup available at Marathon, FL
Usually ready in 24 hours
Product Description
Enhance your pool’s smart capabilities with the Jandy iAquaLink 3.0 Web Connect Interface Device (Antenna Only). This powerful replacement antenna is the core component for bringing cloud-based control to your AquaLink RS, PDA, or Z4 automation systems. Designed for high-performance wireless communication, the iAquaLink 3.0 allows you to sync your pool equipment with the iAquaLink app for instant access to temperature settings, lighting, and pump schedules from any smartphone or tablet. Built to endure the elements, this device ensures a stable, long-range connection between your equipment pad and your home network, making manual pool management a thing of the past.
Key Features
- iAquaLink 3.0 Technology: Features the latest generation of web-connect hardware for faster, more reliable smartphone and tablet control.
- Universal AquaLink Compatibility: Works with existing AquaLink RS, PDA, and Z4 systems, providing a seamless path to smart home integration.
- Dual-Band Wi-Fi Support: Optimized for modern home networks to provide a stable, high-speed connection for real-time equipment monitoring.
- Simple Setup & Installation: Features an easy-to-configure "Hotspot" mode that allows for quick pairing with your home router without complex wiring.
- Weather-Resistant Housing: The durable, UV-stabilized antenna enclosure is designed to withstand extreme outdoor conditions for year-round performance.
- Mobile App Integration: Enables full control of pumps, heaters, cleaners, and water features via the free iAquaLink app (iOS and Android).
Specifications
Warnings and Disclaimers
- Firmware Limitation: The IQ30-A antenna will only function if the host AquaLink RS board is Revision R or newer, or the PDA board is Revision 6.0 or newer. Systems older than 2012 may require a PCB upgrade.
- Network Frequency: This device does not support 5GHz WiFi networks. Attempting to connect to a 5GHz-only SSID will result in connection failure. Ensure your router has a dedicated 2.4GHz band.
- Professional Installation: Incorrect wiring of the 4-pin connector to the red terminal block on the main PCB can cause permanent damage to the module and the pool control system.
- Data Security: Use WPA2 encryption for your network. iAquaLink modules on open or outdated WEP networks are vulnerable to unauthorized access.
- Outdoor Placement: While water-resistant, the antenna should never be submerged or mounted in a location where water pools. Avoid mounting behind metal siding or stucco with wire lath, as this will block the signal.
- Wired Connection: For the most stable experience, especially if your pool is far from the house, use the built-in Ethernet port on the IQ30-A rather than WiFi. This eliminates "device offline" errors caused by neighbor interference.
- Hotspot Setup: If the antenna won't connect through the app, toggle the small switch on the bottom of the unit to "Wired" and back to "WiFi" to reset the internal broadcast hotspot.
- LED Status Codes: Pay attention to the internal lights: A solid green light means it's connected to the internet; a blinking red light indicates it can't find your router.
- Signal Mapping: Before permanent mounting, use your smartphone at the equipment pad to verify you have at least 2 bars of 2.4GHz WiFi signal. If not, a WiFi extender may be necessary.
