Jandy

VSFHP130DVS

Jandy VS FloPro Pool Pump 115/230V

$1,235.00
Shipping calculated at checkout.
5.0

Available In-Store Only

Horsepower: 1.3 HP
Speedset controller : With controller
Extra relay : Without extra relay
Fast shipping
Ships in 2 to 3 business days

Pickup available at Marathon, FL

Usually ready in 24 hours

View Specifications
Product Description

The VS FloPro™ High-Performance Variable-Speed Pump series is a compact yet powerful solution engineered for maximum energy efficiency and space-saving installation. Featuring an innovative Dual Voltage (115/230V) motor and a high-performance design, these pumps are the ideal "drop-in" replacement for existing equipment, allowing pool owners to reduce energy costs by up to 90% while maintaining superior water turnover.

Key Product Features

  • Auto-Sensing Dual Voltage: Automatically detects 115V or 230V power sources, providing ultimate installation flexibility without manual rewiring.
  • Compact High-Output Design: Specifically engineered to fit in small equipment pads where larger high-performance pumps won't go.
  • Total Control & Automation: Fully compatible with iAquaLink® (select models), allowing you to manage pump speeds and schedules from any smartphone or smart device.
  • Quiet Technology: Advanced motor design reduces noise levels, allowing the pump to operate virtually silent during low-speed filtration cycles.
  • On-Board Controller: Select models include a 180° rotatable digital controller for easy access and program monitoring.

Warranty
What installation covers

Pool Pump Installation Option Details: Covers replacement of an existing pool pump only. Includes up to 5 feet of pipe and 4 fittings for plumbing connections. Electrical work includes connection to the existing electrical cable only — does not include rewiring or running a new cable. Service available in Miami-Dade, Broward, and Monroe counties.

Horsepower
Speedset controller
Extra relay
Specifications

Specifications

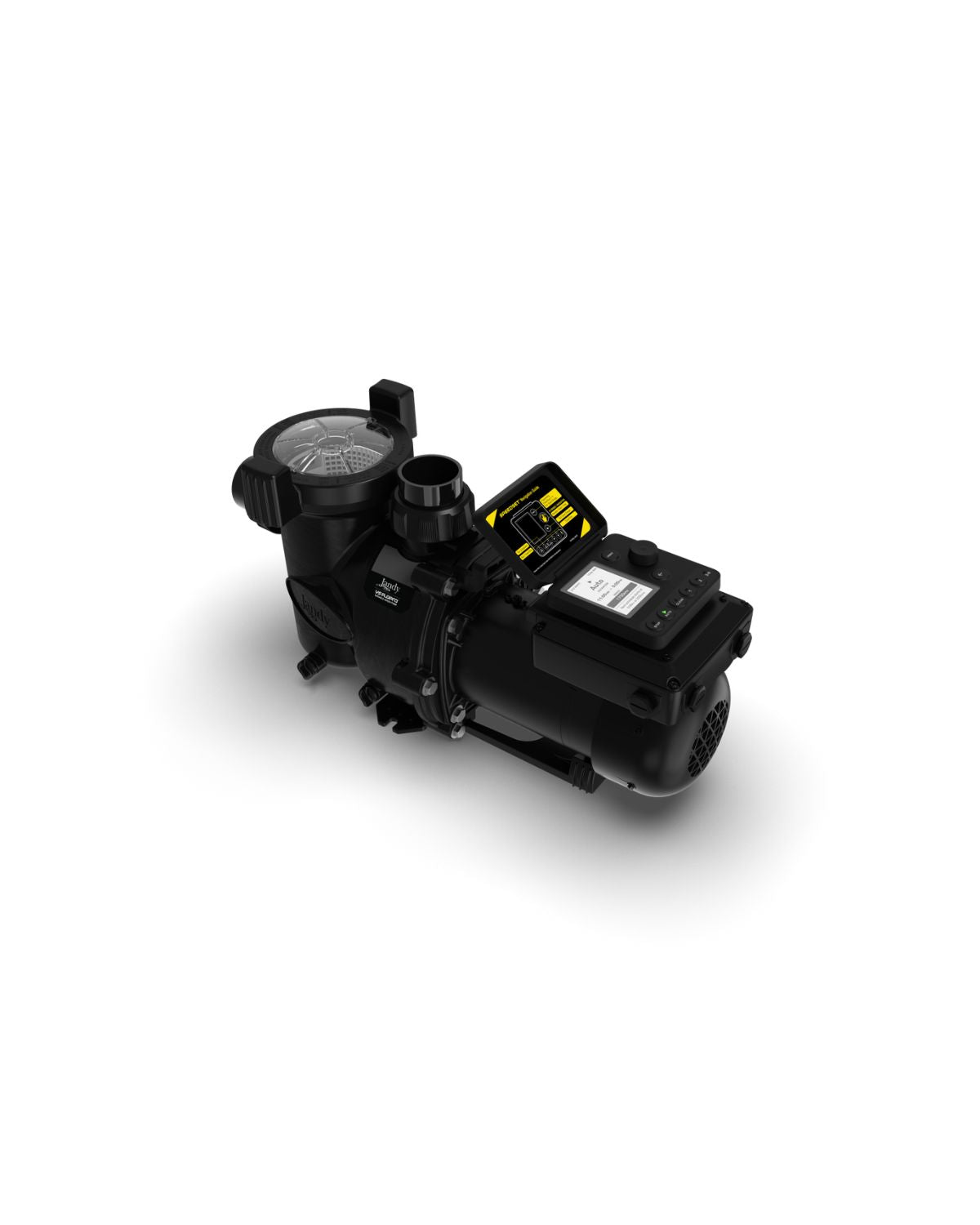

VS FloPro™ 1.3 HP Variable-Speed Pump

A compact, high-performance solution engineered for maximum energy efficiency. Featuring an auto-sensing Dual Voltage (115/230V) motor, this pump is the ideal drop-in replacement, reducing energy costs by up to 90% while providing ultra-quiet operation.

Technical Specification Sheet
Motor TypeTEFC Permanent Magnet
Voltage Range115V – 230V (Auto-Sensing)
EfficiencyENERGY STAR® Certified
EnclosureIPX5 Weather-Resistant
Union Size2" x 2.5" (Included)
Model & Physical Data
Model NumbersVSFHP130DVS, VSFHP130DV
Total Weight~40 lbs
Length~24.5 Inches
Width / Height10.5" W / 11.5" H
Controller180° Rotatable (Select Models)

⚠️ Critical Safety & Installation Warnings

ELECTRICAL HAZARD: All electrical work must be performed by a licensed electrician in accordance with NEC standards. Improper wiring can result in fatal shock or fire.
WARRANTY RESTRICTION: This is a TradeGrade product. Full manufacturer warranty coverage requires installation by a qualified pool professional.
GROUNDING & BONDING: The pump must be properly bonded and grounded. Failure to do so creates a significant risk of electrical shock or motor failure.
💡 Professional Tips for Success
  • Adjustable Base: Use the included base to align the pump with existing plumbing, avoiding the need to cut or re-glue PVC pipes during a "drop-in" swap.
  • Priming: Always fill the pump basket with water to the inlet pipe before starting. Running the pump dry will melt the mechanical carbon-ceramic seal.
  • iAquaLink®: Connect to automation to manage speeds and schedules via smartphone for maximum ease and energy savings.
  • Speed Calibration: Run "Low Speed" for 24-hour filtration and reserve "High Speed" for cleaners or water features to maximize cost reductions.
PROCEED WITH CAUTION: High-voltage pool equipment requires expert handling. Always disconnect power at the main breaker before servicing the pump or opening the wiring compartment.
CALIFORNIA PROPOSITION 65 WARNING: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling.
WARRANTY & DATA: Specifications sourced from [Zodiac Pool Systems](https://jandy.com) technical documentation. Performance claims (90% energy savings) are based on comparison to single-speed pumps at 3600 RPM.
