Jandy
iQPUMP01

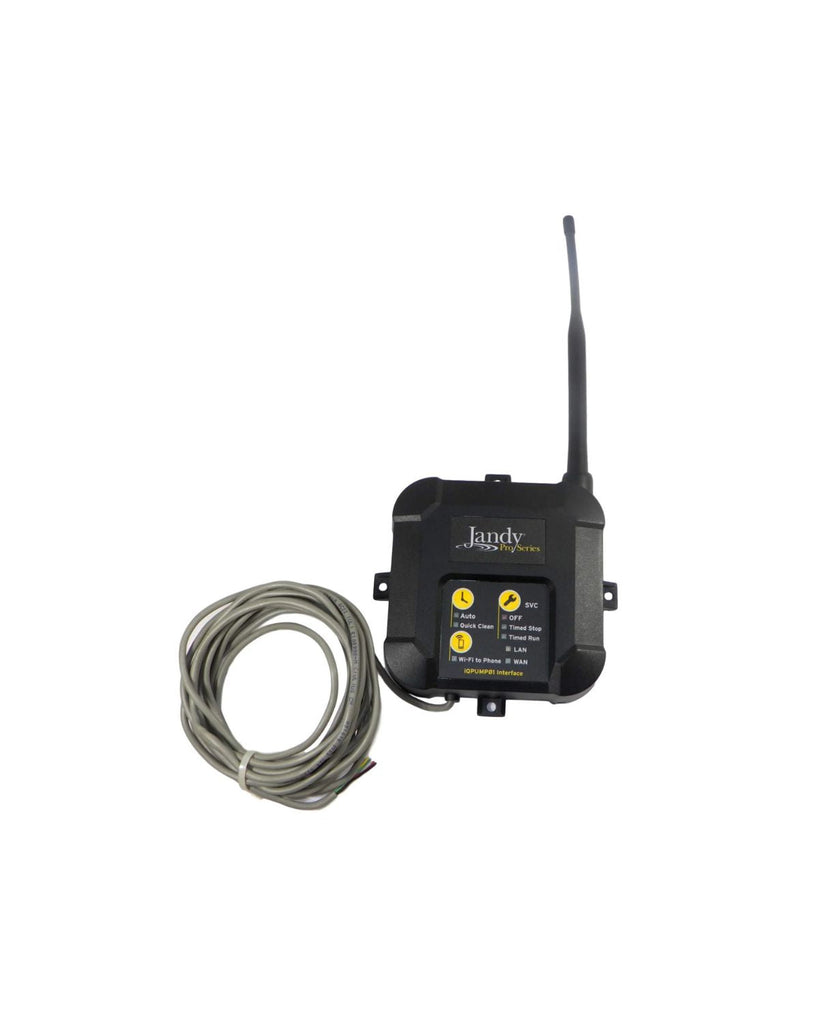

Jandy Variable Speed Pump Controler
$175.00
/
Shipping calculated at checkout.
Request a Quote
Fast shipping
Ships in 2 to 3 business days
Product Description
Transform your pool management with the Jandy iQPUMP01 iAquaLink Wireless Pump Controller. This powerful smart interface grants you total control over any Jandy variable-speed pump directly from your smartphone or tablet. By eliminating the need for a separate wall-mounted controller or complex automation panel, the iQPUMP01 serves as a streamlined, plug-and-play solution for remote scheduling and real-time monitoring. Whether you’re at home or on the go, the intuitive iAquaLink app allows you to optimize your pump's performance, ensuring maximum energy efficiency and crystal-clear water with just a few taps.
Key Features
- Wireless Smartphone Control: Manage your pump anytime, anywhere using the top-rated iAquaLink app for iOS and Android.
- Built-in Wi-Fi Hotspot: Features "Wi-Fi to Phone" technology that allows for easy setup and local control at the equipment pad, even without a home internet connection.
- Advanced Scheduling: Program up to 10 daily schedules and customize RPM settings for filtration, heating, and water features to significantly lower energy costs.
- One-Touch Service Modes: Includes dedicated physical buttons for Quick Clean (high-speed burst), Timed Run, and Timed Stop for effortless pool maintenance.
- Flexible Compatibility: Specifically designed to work with all Jandy Pro Series variable-speed pumps, including FloPro VS and ePump models.
- Integrated Auxiliary Relay: Features a built-in relay to control a secondary device, such as a booster pump or salt chlorinator, directly through the interface.
- Real-Time Monitoring: View current pump status, speed, and power consumption instantly to ensure your system is running at peak performance.
- Easy Plug-and-Play Setup: Connects directly to the pump’s RS485 communication port, replacing the need for traditional manual keypads.
Specifications
Model Number
iQPUMP01
Control Interface
iAquaLink App (iOS/Android)
Connection Type
RS485 Communication Port
Network
2.4 GHz WiFi
Compatibility
Jandy FloPro VS / ePump
Auxiliary Relay
1 (Integrated)
Daily Schedules
Up to 10
Physical Interface
Service / Hotspot Buttons
Warnings and Disclaimers
- Electrical Safety: Ensure all power to the pump is disconnected before plugging the iQPUMP01 into the RS485 port. Failure to do so can result in electrical shock or board failure.
- Frequency Limitation: This device only supports 2.4GHz WiFi networks. It will not detect or connect to 5GHz-only bands. Ensure your mesh system or router is broadcasting a compatible 2.4GHz signal.
- Conflict of Control: The iQPUMP01 is designed to replace traditional wall controllers. Do not attempt to run multiple controllers (like a SpeedSet and an iQPUMP01) on the same pump simultaneously unless specifically configured in "Automation" mode.
- Signal Strength: Avoid mounting the module inside metal enclosures or directly behind stone walls, as these will severely degrade WiFi signal and lead to "Offline" status in the app.
💡 Pro-Tips for Success
- Hotspot Mode: If you lose home internet, use the physical button on the module to activate "WiFi to Phone" mode. This creates a direct link between your phone and the pump so you can still manage it locally.
- Relay Expansion: Use the built-in auxiliary relay to sync your salt chlorinator with the pump. This ensures your [Jandy TruClear](https://www.jandy.com) or [AquaPure](https://www.jandy.com) only generates chlorine when the pump is actually running.
- Service Mode: The "Quick Clean" button on the module is a lifesaver for pool pros. It triggers a pre-set high-speed run for vacuuming or chemical mixing without the pro needing access to your home WiFi or app account.
- Energy Optimization: Use the real-time wattage monitor in the iAquaLink app to find your pump's "sweet spot"—the lowest RPM possible that still keeps the pool surface clean and the heater engaged.
